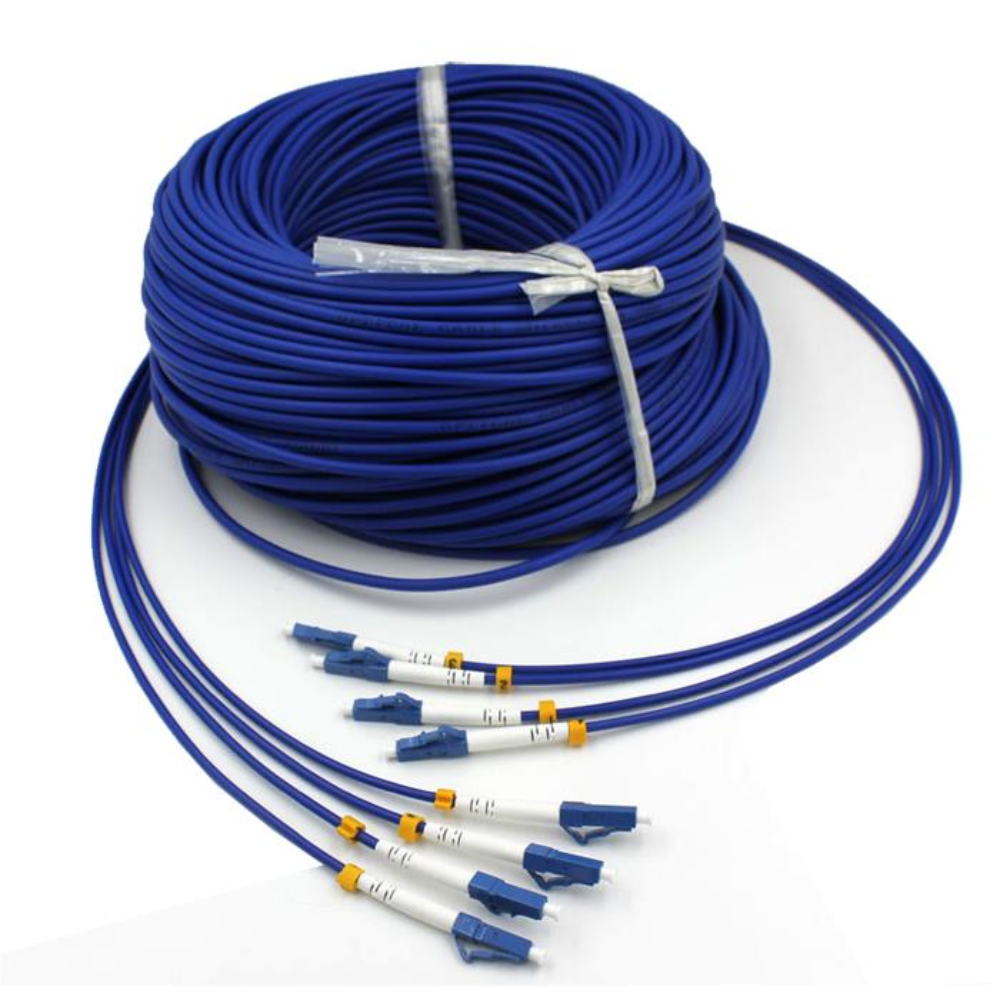

High-density industrial applications, outdoor deployments, and challenging server room environments require network infrastructure that goes beyond standard patch cords. The 4-Core LC/UPC to LC/UPC Singlemode 9/125µm Armored Fiber Optic Patch Cable is engineered to deliver blistering data transmission speeds while providing bulletproof structural security. Featuring an integrated helical stainless steel tape armor beneath a heavy-duty outer jacket, this 4-strand fiber optic assembly offers unmatched resistance to crushing pressures, sharp bends, and rodent damage without compromising flexibility or bend radius parameters.

Optimized for enterprise backbones, industrial automation loops, campus optical networks, and high-speed FTTH cross-connect infrastructure, this singlemode patch jumper guarantees long-term physical resilience and optimal signal integrity across standard long-haul telco distributions and localized high-density routing panels.

Advanced Armored Architecture and Mechanical Protection

Standard PVC fiber patch cords are highly susceptible to physical crushing, tracking pressure anomalies, and mechanical shearing forces. This 4-strand singlemode assembly counters these vulnerabilities via a multi-layered protective cross-section. Directly wrapping the inner buffered glass cores is a flexible, interlocking stainless steel armored tube. This helical armor acts as a structural exoskeleton, evenly dispersing localized crushing weight up to 3000N/100mm. This makes it completely safe for high-traffic environments where technicians might accidentally step on or pinch lines during routine modifications.

Despite its extreme armor shield, the cable maintains a surprisingly small physical diameter and remarkable flexibility, handling tight routing paths inside overcrowded trays just like unarmored variants. Surrounding the steel armor layer is a premium aramid yarn strength member that absorbs tensile pulling tension during installation runs. This protects the internal fragile glass cores from stretching stresses.

The exterior jacket layer is extruded using high-durability polymers available in building-code-compliant variants. For network designers, field engineers, or installation squads seeking elite termination machinery or high-precision splicing systems to adapt these fiber loops, check out our full array of industrial telecom equipment in the fiber optic cables catalog.

Singlemode OS2 Core and Precision LC Terminations

At the operational heart of this cable are four individual 9/125-micron singlemode glass strands, fully compliant with international ITU-T G.652.D standards. The thin 9µm core ensures light travels in a single spatial path, eliminating modal dispersion completely. This enables the cable to handle massive transmission spans spanning kilometers without notable signal degradation. Operating within the standard 1310nm and 1550nm wavelength ranges, this cable easily pushes 10G, 40G, and 100G transmission protocols across long distances.

Both terminal ends feature four premium, small-form-factor LC connectors secured within a modular pull-tab distribution design. The LC connector’s high-precision 1.25mm ceramic ferrule effectively cuts physical spatial demands by 50% compared to traditional SC alternatives, doubling available interface configurations inside distribution hubs. Every connector undergoes a strict Ultra Physical Contact (UPC) polishing cycle.

The geometric UPC finish yields a smooth, domed ferrule face that optimizes direct contact while minimizing air gaps. The practical result is a remarkably clean optical profile, featuring a lower insertion loss metric (typical ≤ 0.2dB) and an elevated return loss threshold (≥ 50dB) to prevent harmful back-reflections from disrupting delicate optical transceivers. For engineering teams organizing large distribution rings or setting up custom field terminations, browse our highly optimized deployment networks to view expert fiber management frameworks.

Key Technical Specifications

Deployment and Maintenance Guidelines

1. Manage the Core Pull Tension: When routing through conduits, always apply pulling forces directly to the outer jacket or aramid structural layers. Never pull by the LC breakout tails or connector boots, as this can degrade connection interfaces and cause high attenuation.
2. Maintain Leg Legibility and Mapping: This 4-core configuration uses color-coded or labeled legs. Document the port maps clearly at both distribution ends during installation to avoid cross-connecting transmission lines with receiving ports.
3. Decontamination and Cleaning Routines: Even armored systems can fail due to microscopic dust on the glass end-face. Always swipe the LC ferrules with a 1.25mm click-cleaner before plugging them into transceivers. For teams building custom permanent links, verify connections using professional inspection instrumentation.
