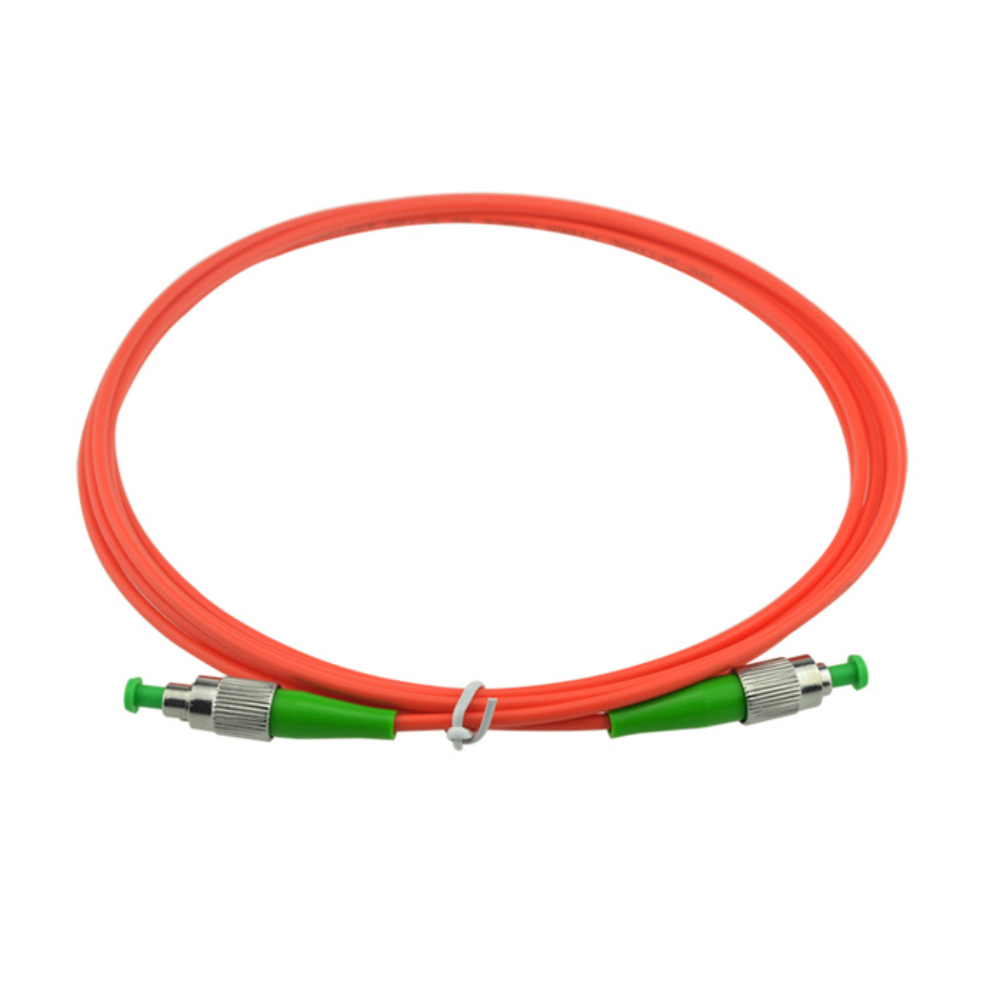

High-bandwidth telecommunication networks, analog RF video distribution loops, and sensitive laser-based optical systems demand extreme precision and minimal signal reflection. The FC/APC-FC/APC SM Simplex Fiber Patch Cable is a professional-grade singlemode optical jumper engineered to deliver low insertion loss while drastically minimizing back reflections. Featuring threaded metal FC barrels on both ends mated to an 8-degree angled physical contact (APC) ceramic ferrule polish, this simplex patch cord provides secure, vibration-resistant connectivity for high-stakes optical transmission networks.

Designed for long-haul telecommunication backbones, CATV (Cable Television) systems, FTTx distribution frames, and precise laboratory testing equipment, this heavy-duty simplex assembly ensures long-term signal stability and protects sensitive laser transmitters from the performance degradation caused by reflected light.

Precision Threaded FC Architecture and APC Polish Advantage

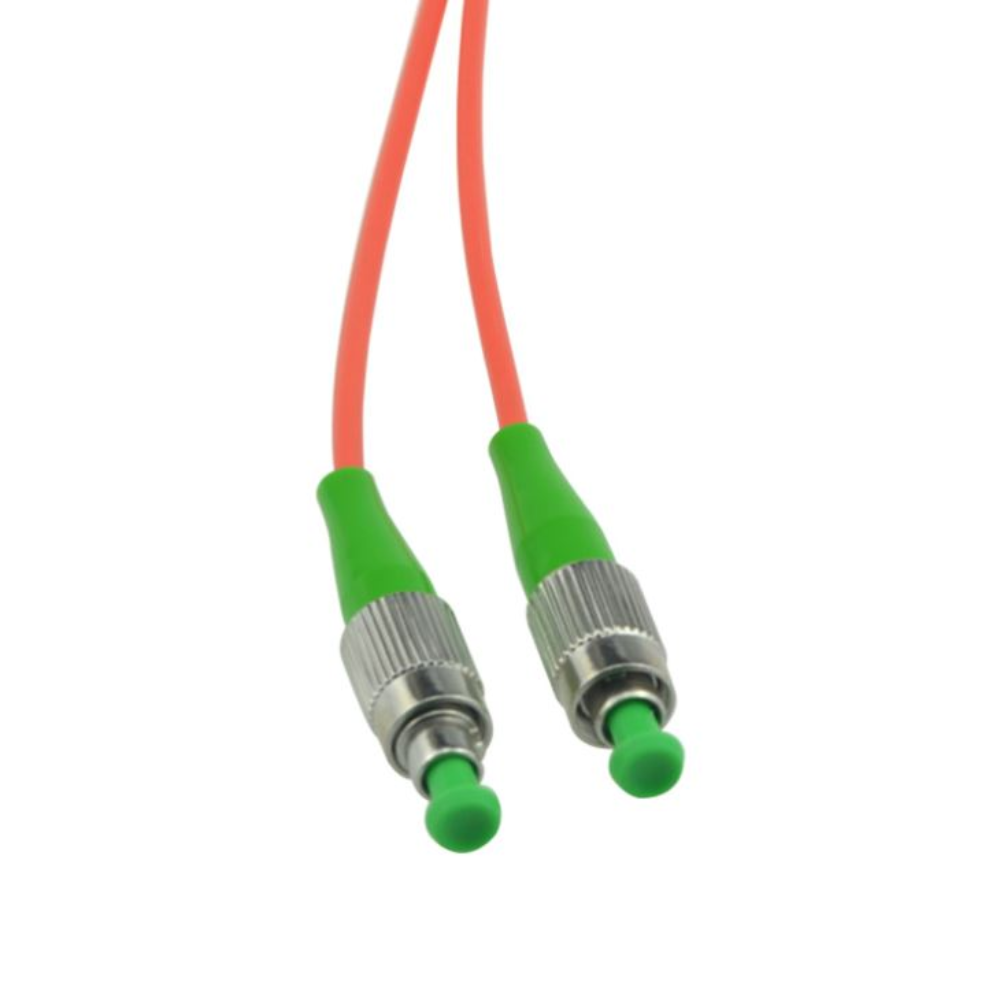

Unlike standard push-pull connectors, the FC (Ferrule Connector) interface relies on a robust threaded metal coupling nut and keyway alignment structure. When screwed securely into a matching bulkhead adapter, this mechanical design completely eliminates rotational movement and axial displacement, making it ideal for environments subject to mechanical vibrations or thermal fluctuations.

The hallmark of this assembly is its 8-degree APC polish angle. By cutting the ceramic ferrule tip at an 8-degree angle, any reflected light escaping the glass core is redirected out into the cladding layer rather than bouncing straight back into the laser transmitter source. This specialized geometric polish achieves exceptional return loss metrics (typically ≥ 60dB), making APC patch cords essential for high-power analog video transmission and dense WDM (Wavelength Division Multiplexing) architectures. For engineers, installers, and telecom contractors requiring professional fusion splicing systems, optical cleaning tools, or distribution racks, explore our primary warehouse inventory in the fiber optic cables catalog.

Single-Mode Optical Integrity and Rugged Jacket Construction

At the center of this simplex cable is high-purity singlemode OS2 (9/125µm) optical glass optimized for 1310nm and 1550nm transmission windows. Built with bend-insensitive fiber formulations, the cable maintains low attenuation even when routed through tight enclosures or complex cable management trays. The internal glass strand is protected by a flame-retardant, low-smoke zero-halogen (LSZH) outer jacket that prevents toxic fumes in enclosed spaces while safeguarding the delicate core against pulling tension during installation.

Every connector assembly undergoes rigorous optical testing to verify ultra-low insertion loss (typical ≤ 0.25dB) and high return loss, ensuring seamless integration into existing infrastructure. For technical teams expanding regional distribution networks or configuring complex patch panels, review our advanced optical management frameworks.

Key Technical Specifications

Installation and Handling Best Practices

1. Align the Keyway Carefully: When attaching the FC connector, ensure the alignment key on the ferrule matches the slot inside the bulkhead adapter before tightening the metal screw nut to prevent tip damage.
2. Maintain Strict End-Face Cleanliness: APC polished surfaces are extremely sensitive to dust particles. Always clean the ferrule tip with a specialized click-cleaner prior to mating to preserve the high return loss metrics.
3. Never Mix APC and UPC Connectors: Mating an APC connector directly to a UPC (blue) connector will cause physical damage to the angled ceramic tips and create severe insertion loss. Always verify adapter types.
