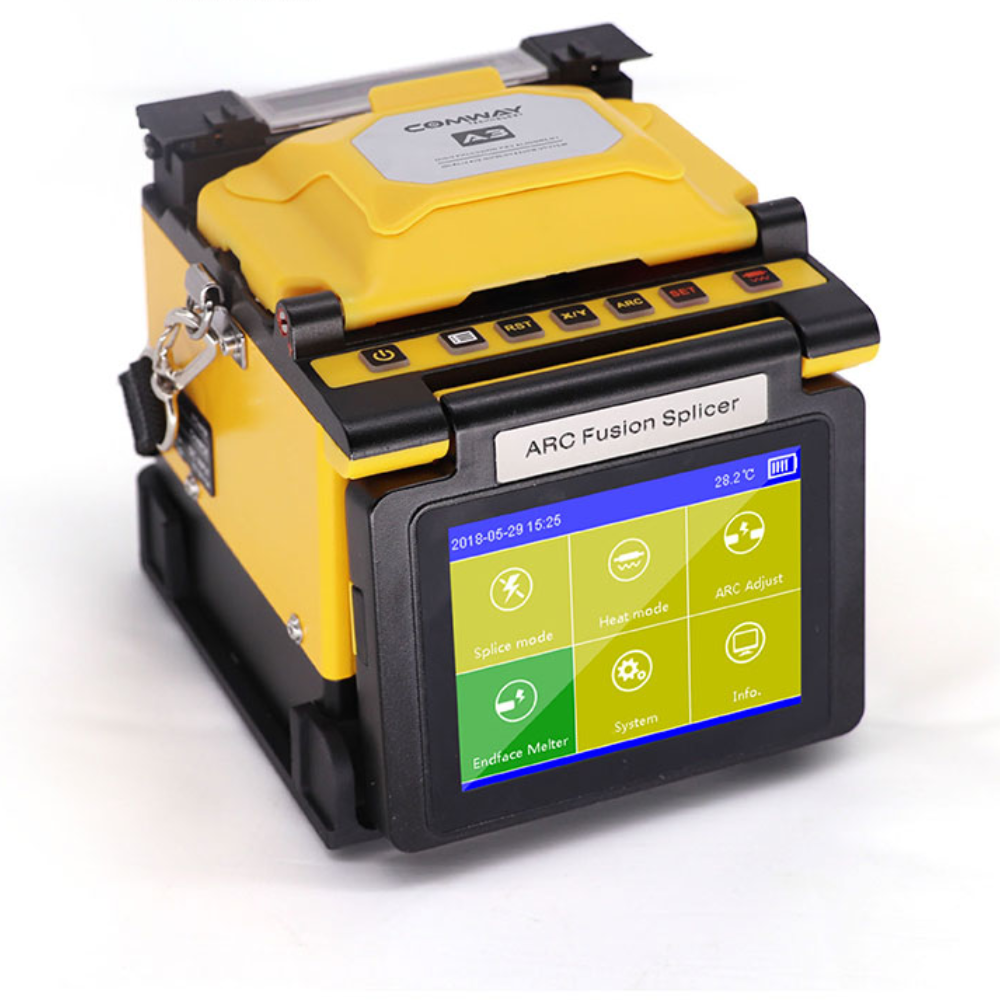

COMWAY A3 ARC Fusion Splicer
100% satisfaction guaranteed with every order!
In the fast-paced world of fiber optic deployment, technicians require tools that are not only precise but also highly dependable and easy to maneuver in the field. The COMWAY A3 ARC Fusion Splicer stands as a testament to practical engineering, offering a robust and economical solution for Fiber-to-the-Home (FTTH) networks, local area networks (LANs), and daily maintenance tasks. Combining a compact footprint with proven alignment technology, the A3 delivers consistent, high-quality splices without the bulk of traditional core-alignment machines.
Equipped with a reliable PAS (Profile Alignment System), the COMWAY A3 effectively aligns optical fibers to minimize splice loss. With a quick splicing time of 6 seconds and an efficient shrink-tube heating cycle, this splicer is optimized to keep your field operations moving swiftly, ensuring that network connectivity is restored or established with minimal downtime.
Key Features of the COMWAY A3 Splicer
- PAS Cladding Alignment: Utilizes an advanced Profile Alignment System to accurately align fibers, ensuring low insertion loss for standard single-mode and multi-mode networks.
- Fast Splicing Cycle: Achieves a rapid 6-second splice time, allowing technicians to complete more fiber joints per hour.
- Splice-On Connector (SOC) Compatible: Fully supports SOC technology, simplifying the installation of field-terminated drop cables for cleaner and faster FTTH deployments.
- Compact & Ergonomic: Designed to be lightweight and highly portable, making it ideal for overhead line work, tight junction boxes, and ladder-based installations.
- Field-Tough Build: Features a ruggedized exterior that provides essential resistance against wind, dust, and moisture, ensuring stability in challenging outdoor environments.
Detailed Technical Specifications
Understanding the technical parameters is essential for matching the right splicer to your project's demands. Below is the comprehensive specification breakdown for the COMWAY A3:
| Feature / Specification | Technical Details |
|---|---|
| Alignment Technology | PAS (Profile Alignment System) Cladding Alignment |
| Applicable Fiber Types | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Typical Splice Time | 6 seconds (SM Fast mode) |
| Typical Heating Time | 15 seconds (Adjustable) |
| Average Splice Loss | SM: 0.02dB, MM: 0.01dB, DS/NZDS: 0.04dB |
| Magnification Display | 300x for X or Y axis single view; 150x for X and Y dual-axis view |
| Screen Type | High-resolution color LCD display |
| Data & Interface | USB port for data transfer and easy firmware upgrades |
| Memory Capacity | Stores up to thousands of recent splice results |
| Tension Test | Standard 2.0N |
| Battery Performance | High-capacity rechargeable lithium battery supporting typical daily field operations |
Why the COMWAY A3 is a Staple for FTTH
The COMWAY A3 was engineered with the everyday field technician in mind. It bridges the gap between high-end, ultra-expensive core alignment machines and basic mechanical splicing tools. By integrating the PAS technology into a smaller chassis, the A3 provides consistent splice metrics day in and day out, an intuitive user interface, and highly efficient processing that cuts down terminal installation times. To support continuous field uptime, technicians can access the official support portal for firmware updates, configuration guides, and hardware troubleshooting.
Comparing COMWAY's Professional Splicer Range
If your project requirements vary, COMWAY offers a full spectrum of splicing solutions. Explore our complete range on Super Flash:
- For an upgraded, ultra-compact version of the A3 with enhanced features, consider the COMWAY A3+ Mini ARC Fusion Splicer.
- If you need a slightly more advanced FTTH machine with a robust 4-motor system, this compact 4-motor alternative is an excellent choice.
- For mid-range projects requiring absolute core alignment, the COMWAY Fusion Splicer C6 delivers exceptional precision.
- If your operations require specialized high-end melting capabilities, look into our dual-purpose 8-series system or the advanced 9-series endface melter equipment.
- For large-scale, long-haul backbone networks, the flagship COMWAY Fusion Splicer C10S V2 remains the industry benchmark.
Frequently Asked Questions (FAQs)
Q1: Is the COMWAY A3 suitable for novice technicians?
A: Yes. The A3 features an intuitive menu system, automated splicing programs, and a clear LCD screen, making it very user-friendly for technicians transitioning to automated fusion splicing.
Q2: What kind of maintenance does the A3 require?
A: Routine maintenance is straightforward. Keep the V-grooves clean, regularly inspect and clean the objective lenses, and replace the electrodes when prompted by the machine's internal counter. You can find replacement COMWAY Electrodes as well as general genuine hardware consumables in our store.
Q3: Does it support Splice-On Connectors (SOC)?
A: Absolutely. The A3 is fully compatible with Splice-On Connectors, which are increasingly popular in FTTH installations for their low loss and ease of assembly compared to mechanical connectors.
Q4: Can I use the A3 for long-haul backbone networks?
A: While the A3 is highly reliable and produces low-loss splices, it uses PAS cladding alignment. For long-haul, ultra-high-capacity backbone networks where absolute core-to-core alignment is mandated, we recommend upgrading to a model like the COMWAY C10S.
