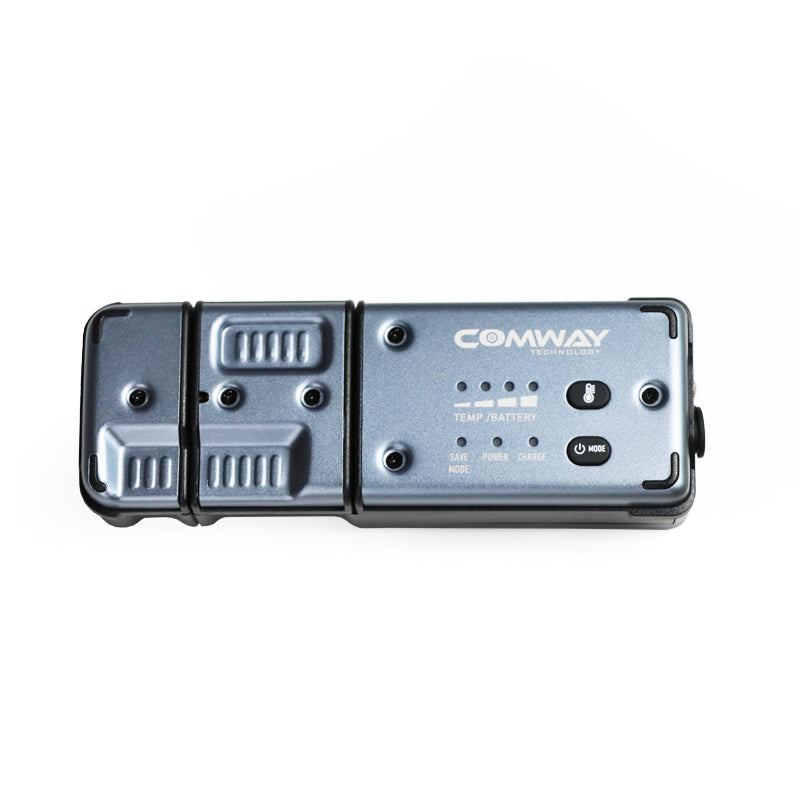

COMWAY CS-09 Ribbon Fiber Thermal Stripper
100% satisfaction guaranteed with every order!
The Next Generation of High-Density Fiber Preparation
In modern telecommunications, high-density fiber deployments like data centers, backbone infrastructure, and FTTx installations demand unparalleled speed and precision. The COMWAY CS-09 Ribbon Fiber Thermal Stripper solves critical installation bottlenecks, serving as the ultimate companion tool for network technicians who refuse to compromise on speed or structural integrity. Check out our high-quality splicers and accessories to fully equip your field team with reliable setup standards.
Engineered specifically for mass fusion splicing, the CS-09 effortlessly strips the outer protective coatings from ribbon cables ranging from 2 to 12 cores in a single, smooth thermal pass. By utilizing uniform heat to soften tough acrylate coatings before the blades make contact, this rugged tool ensures a completely clean strip every single time, leaving the underlying bare glass pristine and perfectly prepped for cleaving and splicing. For teams relying on high-performance fusion engineering, matching your stripping assets with modern rigs like the advanced alignment machine guarantees optimized loss performance across your fiber network links.
Why Thermal Stripping is Non-Negotiable
When working with multi-core ribbon configurations, consistency across all fibers is paramount. Mechanical pull-strippers distribute force unevenly across a 12-strand ribbon, causing individual fiber breakage or stress fractures.
The COMWAY CS-09 relies on specialized thermal element mapping. By heating the ribbon structure to a stable, regulated temperature of 105°C, the tool cleanly breaks down the chemical adhesion of the jacket coating. The softened material slides off smoothly with minimal physical resistance, ensuring all strands retain their baseline tensile strength. This structural integrity matches the delicate handling requirements seen in ultra-precise devices like our high-precision backbone model, where every micron of fiber geometry counts toward overall system efficiency.
Core Engineering Features
An advanced high-efficiency heating plate reaches optimal operating temperature in just 4 seconds to keep pace with high-speed splicing workflows.
Equipped with a robust 7.4V/2000mAh Li-ion pack, delivering approximately 660 consecutive hot-jacket peel cycles on a single charge.
Ditching flimsy plastic, the CS-09 features a military-grade aluminum alloy frame that provides elite durability while weighing under 300 grams.
Universal USB Type-C interface (5V–20V inputs up to 20W). Power up easily using standard power banks, vehicle ports, or fusion splicer rigs.
The CS-09 is structurally optimized to function alongside portable alignment devices like our compact mini handheld machine, ensuring that preparation and splicing cycles are perfectly synchronized for field productivity. For regular tool calibration guides, maintenance updates, or manual firmware updates, technicians can quickly consult our comprehensive technical help repository to maintain long-term device performance and accuracy standards.
Technical Specifications
| Feature / Metric | Specification Detail |
|---|---|
| Model Number | CS-09 |
| Applicable Fiber Type | 2-Core to 12-Core Ribbon Fiber Cables |
| Cladding / Coating Dia. | Standard 125µm / 200µm to 400µm |
| Stripping Length | Up to 30mm |
| Heating Temperature | Stable 105°C (Fixed Optimal) |
| Power Infrastructure | 7.4V / 2000mAh Lithium-Ion Battery |
| Battery Endurance | ~660 Consecutive Peel Cycles per Full Charge |
| Chassis Material | High-Impact Aluminum Alloy (< 300g) |
Frequently Asked Questions
Q: How many fiber cores can the COMWAY CS-09 strip at one time?
A: The CS-09 is explicitly designed to strip anywhere from 2 to 12 core ribbon fibers in a single pass. It easily accommodates all standard variations of commercial multi-core ribbon cables.
Q: Can this tool be used to strip standard single-core (simplex) fiber?
A: While optimized for wide ribbon structures, it can technically strip single-core fibers if housed within a matching fiber holder clamp. However, for exclusive single-core or drop-cable FTTx applications, the COMWAY CS-06 mechanical hand-stripper is a more cost-effective option.
Q: Why is the thermal operating temperature fixed at 105°C?
A: Rigorous testing has proven 105°C to be the sweet spot. It provides enough heat to instantly liquefy the bond of tough acrylate coatings without causing chemical evaporation, toxic fumes, or thermal warping of the underlying glass structure.
Q: Is the CS-09 compatible with fiber holder fixtures from other brands?
A: Yes, the internal alignment tray layout is highly universal. It easily accepts standard COMWAY fiber holders as well as mainstream industry-standard ribbon holders, making it easy to integrate into an existing toolkit.
