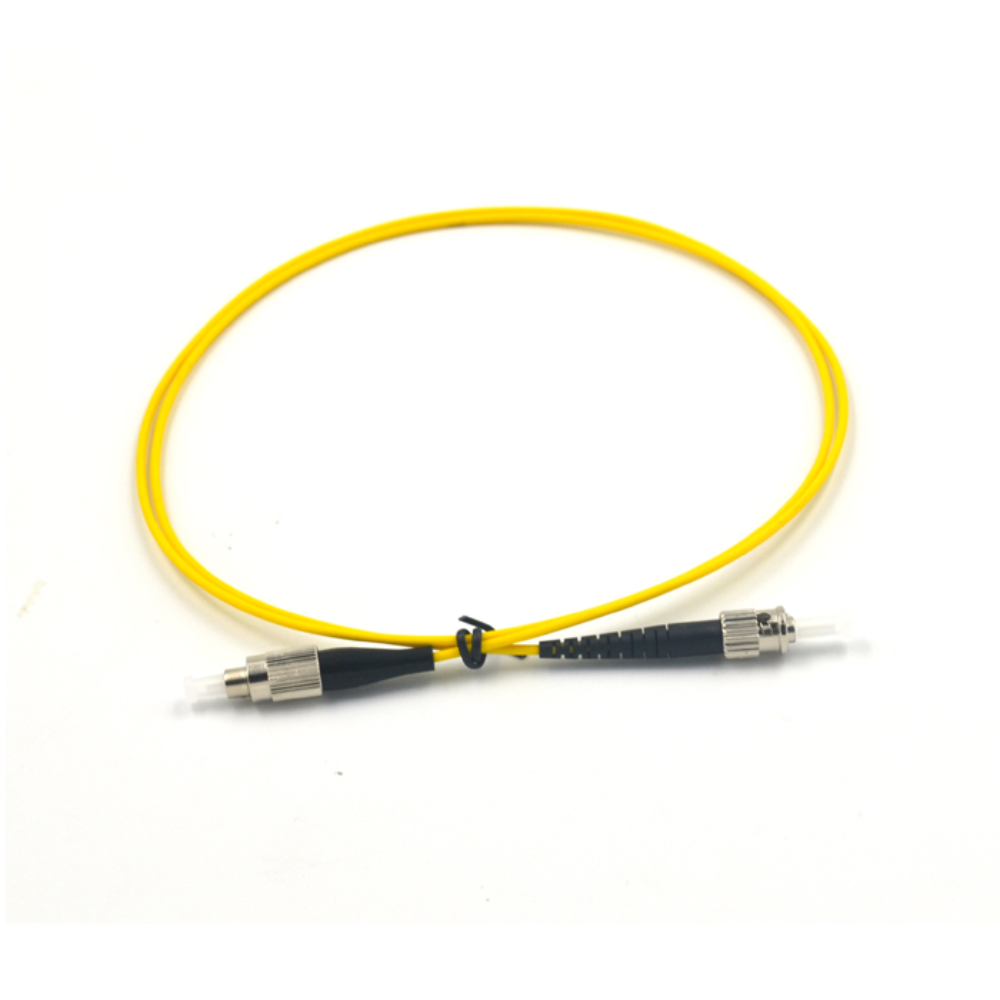

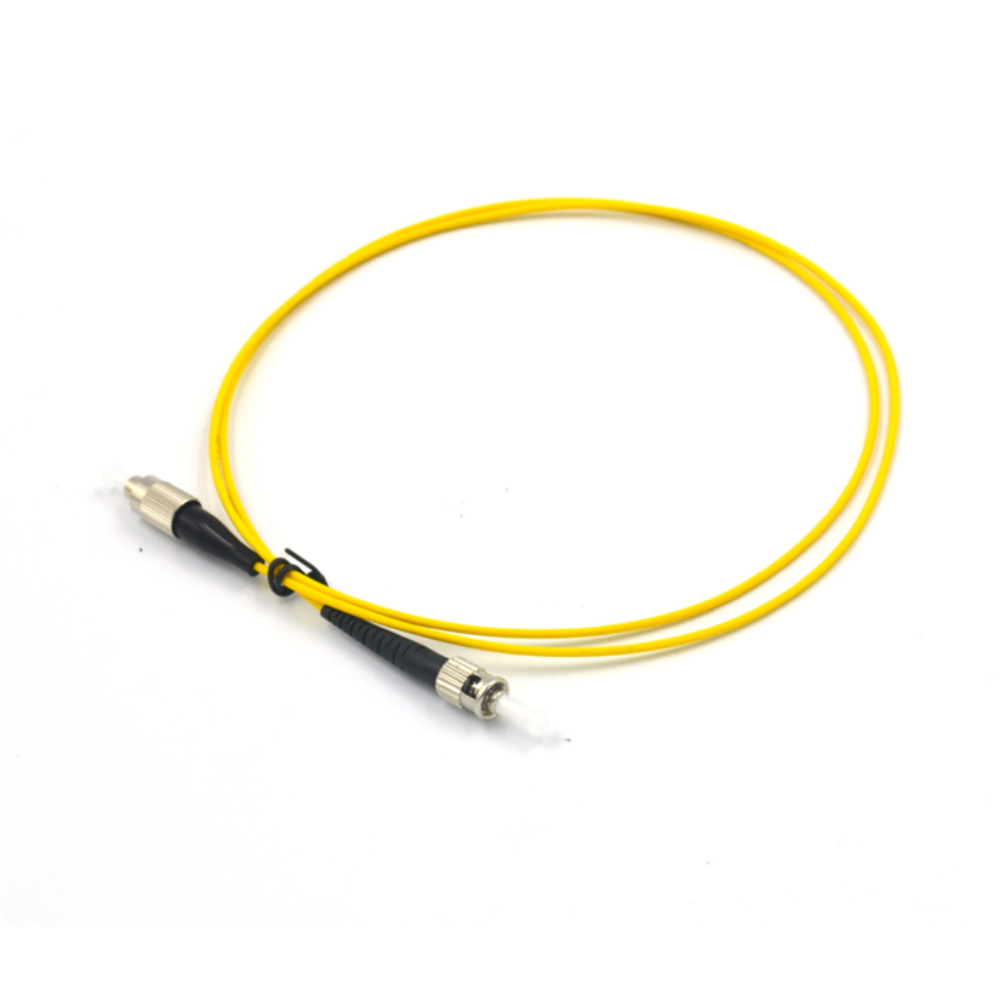

In heavy-duty industrial environments, telecommunication centers, and advanced optical laboratory benches, maintaining strong, physical cable connections is crucial for uninterrupted data pipelines. The FC/UPC to ST/UPC Single-Mode Simplex Fiber Optic Patch Cable is a specialized, ruggedly engineered networking jumper built to manage cross-platform hardware deployments with high stability. Featuring a single-strand single-mode core configuration, this simplex jumper provides a clean, continuous signal path for data links, automated test systems, and legacy network conversions.

Industrial-Grade Double Metallic Connector Security

Unlike standard plastic-bodied snap-in jumpers, this patch cord features heavy-duty metallic connectors on both ends, making it exceptionally resilient under physical stress. One side is terminated with a premium FC (Ferrule Connector) interface, utilizing a robust threaded, screw-on mechanism that locks securely into place. The opposite end is equipped with an ST (Straight Tip) interface, which relies on a spring-loaded bayonet twist-lock coupling.

Together, these dual metal-encased termination formats provide maximum protection against unexpected structural pull, vibration, or displacement. This makes the cable an ideal choice for machinery rooms, factory floors, and high-vibration networking racks where plastic clips might crack or become unstable over time.

Ultra-Physical Contact (UPC) for Signal Accuracy

To ensure high throughput and prevent data corruption, both the FC and ST ferrule faces undergo a controlled Ultra-Physical Contact (UPC) machine polishing procedure. This specific engineering process creates a slightly radiused, dome-shaped finish on the zirconia ceramic ferrules. When inserted into a mating sleeve, this profile ensures the physical glass cores make direct, optimal contact, effectively eliminating air gaps that lead to signal loss.

This premium UPC finish delivers an exceptionally low typical insertion loss value of 0.15dB (with a maximum threshold of 0.30dB), alongside an excellent return loss rating of 50dB or higher. By mitigating back-reflection issues, this cord maintains crisp transmission channels and prevents reverse light reflections from destabilizing high-frequency laser equipment.

Premium OS2 Single-Mode 9/125µm Core Architecture

The interior structure consists of a standard 9/125 micron single-mode core engineered to support wide-spectrum communications across dual-window 1310nm and 1550nm operating wavelengths. The simplex layout contains a single optical channel, optimizing it for dedicated unidirectional lines, testing loops, or single-strand bi-directional system configurations.

The core glass is encased within standard heavy-duty tensile strength members and layered under a high-flexibility protective jacket. Every single assembly is geometrically validated using high-precision interferometers, ensuring out-of-the-box consistency for demanding network operators.

Technical Specifications

Frequently Asked Questions (FAQs)

Q: What is the mechanical difference between FC and ST connectors?
A: The FC connector features a threaded, screw-on outer housing that secures the ferrule in place by tightening down onto the adapter. The ST connector features a bayonet-style twist-lock mechanism that uses a spring-loaded housing to click securely into place, similar to a BNC video connection.

Q: Why are metallic connectors preferred over plastic versions in industrial settings?
A: Metallic connector housings do not easily degrade, crack, or bend when subjected to extreme temperature drops, physical drops, or heavy vibrations. They ensure the inner ceramic ferrule remains perfectly locked inside the alignment sleeve, avoiding accidental connection drops.

Q: Can I use this single-mode UPC patch cord on an APC hardware port?
A: No, you cannot. A flat-polished UPC connector should never be mated directly with an 8-degree angled APC port. Doing so creates large air gaps that cause high signal attenuation and can permanently scratch the delicate glass surfaces on both ends. For APC requirements, explore our FC/APC to SC/UPC simplex cables or SC/APC duplex patch cords.

Q: Can this simplex fiber patch cable handle bidirectional transmission?
A: Yes, a simplex cable can handle bidirectional data transmission, provided you use specialized BiDi transceivers that send and receive data on different optical wavelengths (such as 1310nm and 1550nm) simultaneously through the single glass strand connected to your broader fiber optic cable infrastructure, SC/UPC to LC/UPC duplex jumpers, or heavy-duty 12-core armored cables.
