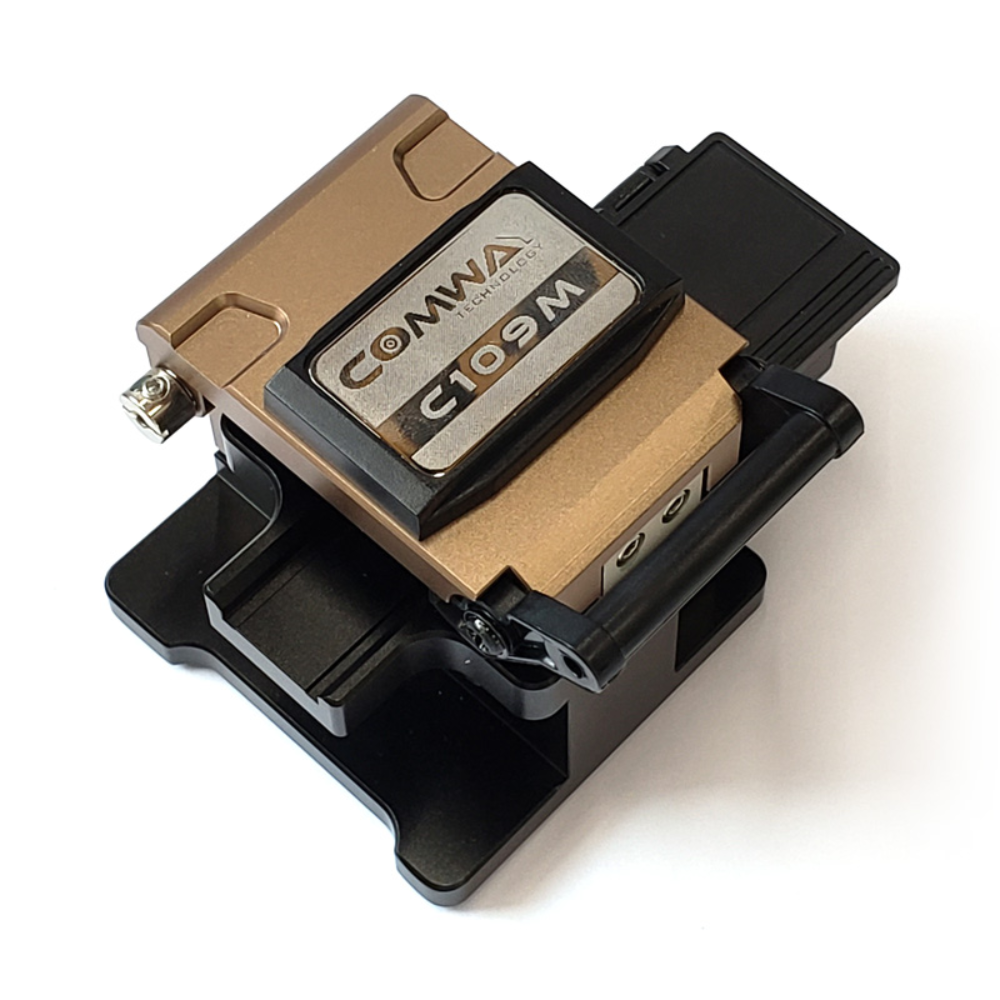

COMWAY C109M High Precision Cleaver
100% satisfaction guaranteed with every order!
In high-performance optical fiber splicing, the quality of the initial fiber cleave directly dictates the ultimate insertion loss of the fused joint. Even the most advanced fusion splicer cannot completely compensate for a jagged, angled, or contaminated fiber face. The COMWAY C109M High Precision Cleaver is a premium, field-ready instrument engineered to provide consistently perfect perpendicular cleaves. Designed for telecom engineers, enterprise network installers, and Fiber-to-the-Home (FTTH) technicians, this mechanical tool minimizes execution errors and ensures rapid, stable field prep work.
Constructed with a heavy-duty metal chassis and dynamic stabilization springs, the C109M holds standard silica glass fibers securely during the scoring and fracturing cycle. This high-precision cleaver features an automatic fiber scrap collection system, keeping your immediate work area free from hazardous glass shards. Whether you are prepping standard single-mode drop cables or high-density ribbon groupings, the COMWAY C109M delivers repeatable engineering tolerance levels, keeping your average cleave angle strictly below 0.5 degrees.
Key Features of the COMWAY C109M Cleaver
- Ultra-Precise Cleaving Angle: Routinely achieves a cleave angle of less than 0.5 degrees, minimizing macro-bends and surface imperfections before splicing.
- Automatic Glass Shard Collector: Integrated mechanical trash bin automatically sweeps and stores hazardous glass fiber cut-offs for enhanced site safety.
- 16-Position Adjustable Blade: The premium tungsten carbide blade features 16 individual cutting indexes, delivering up to 48,000 clean cuts over its functional lifespan.
- Dual-Fiber and Ribbon Compatibility: Outfitted with a versatile universal adapter plate that perfectly accommodates 250µm coated fiber, 900µm buffered jacket fiber, flat drop cables, and multi-core ribbon configurations.
- Streamlined Operational Mechanics: Utilizes a smooth, one-step operational sequence—pressing down the top cover clamps, scores, and cleaves the optical path simultaneously.
Detailed Technical Specifications
Network engineers and material sourcing teams can review the robust mechanical tolerances and technical parameters of the COMWAY C109M in the comprehensive specifications table below:
| Feature / Parameters | Technical Details |
|---|---|
| Model Number | COMWAY C109M High Precision Cleaver |
| Applicable Optical Fiber | Silica glass bare fiber series |
| Fiber Core Count Compatibility | Single fiber to multi-core ribbon configurations |
| Cladding Diameter | 125 µm standard |
| Coating Outer Diameter | 250 µm to 900 µm, as well as 2mm/3mm cords and flat drop cables |
| Cleave Length Range | 5 mm to 20 mm (coating dependent) |
| Typical Cleave Angle | Typically less than 0.5 degrees |
| Blade Lifespan Capabilities | 48,000 individual cleaves (16 indexed positions × 3,000 cuts per point) |
| Operation Mechanism | Automatic single-action impact fracture |
| Scrap Handling System | Fully integrated automatic disposal collector chamber |
| Chassis Dimensions | 95 mm (W) × 78 mm (D) × 59 mm (H) |
| Total Instrument Weight | Approximately 320 grams |
Optimizing the Cutting Flow for Low-Loss Splicing

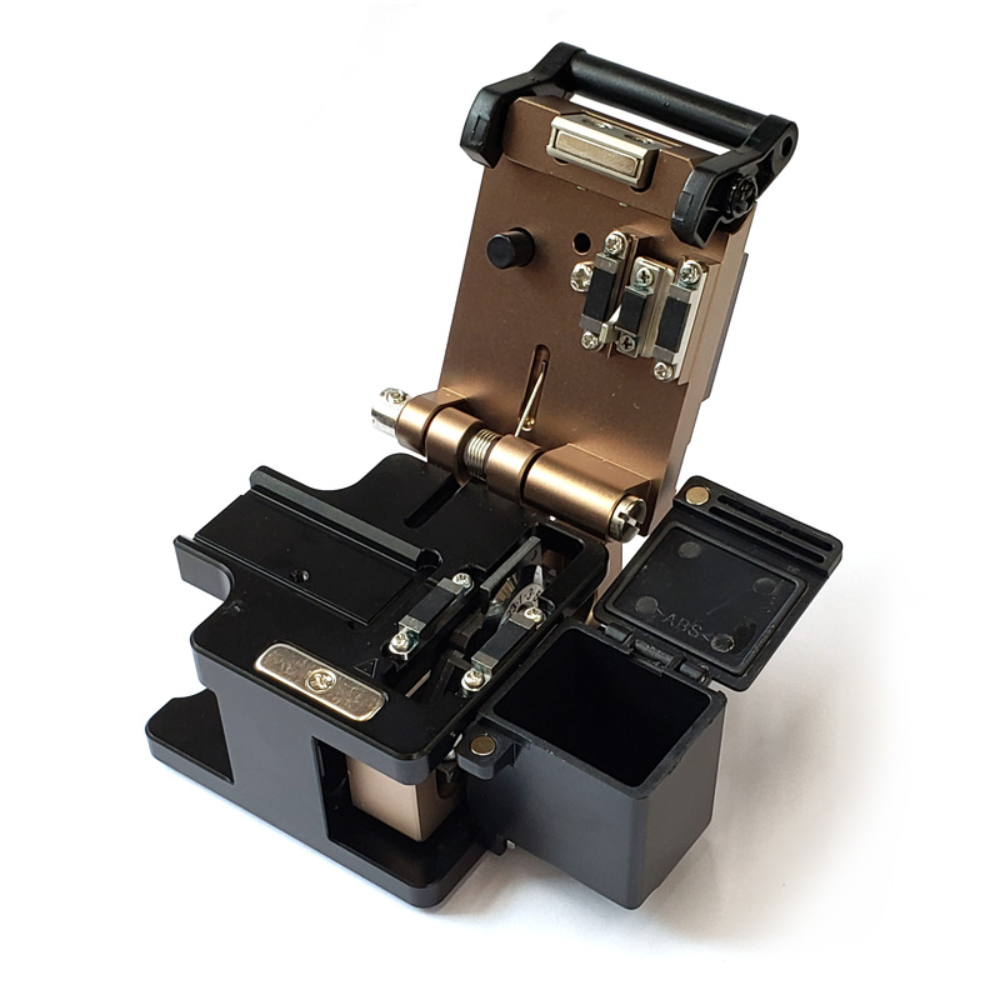

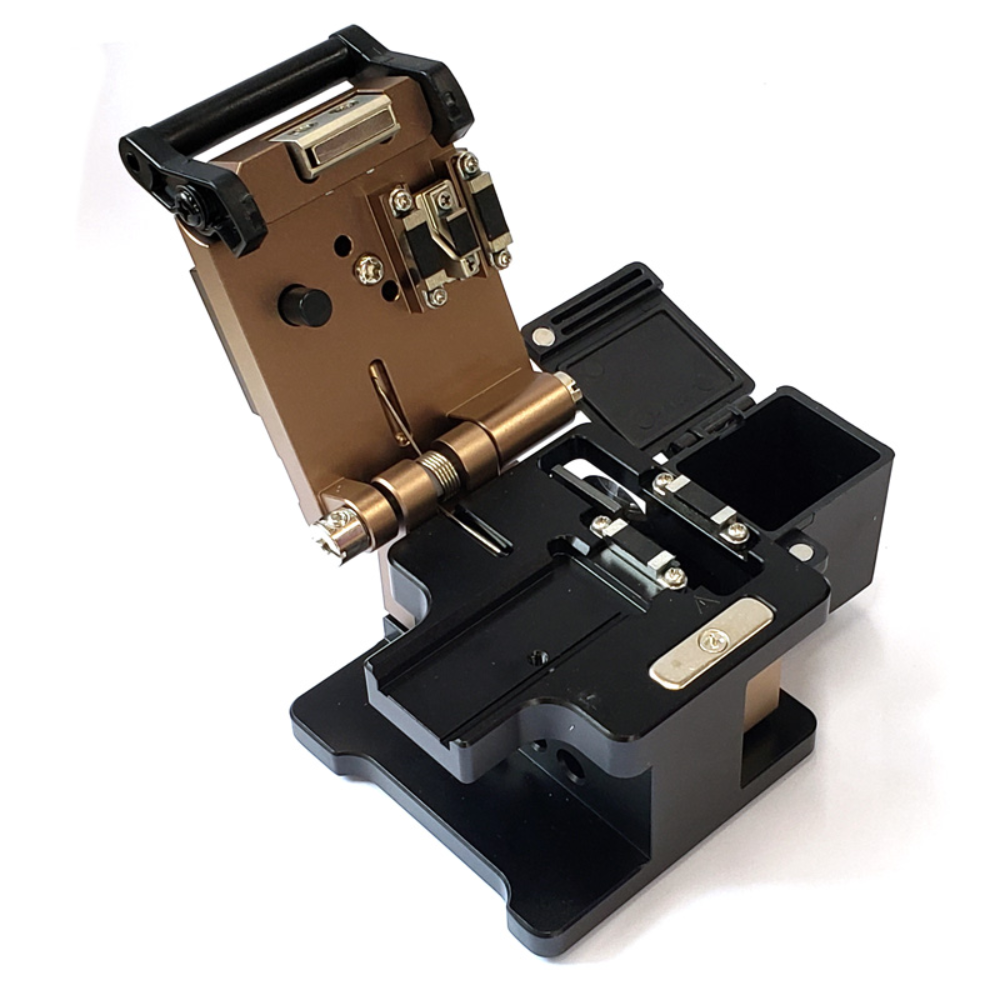

Achieving a clean break relies on micro-scoring the silica surface perfectly before applying precise bending tension. The COMWAY C109M manages this process through targeted internal engineering controls. Dual top rubber dampening blocks hold the fiber perfectly concentric, preventing the optical cable from twisting or slipping out of alignment when the scoring blade travels beneath. The inner carriage moves the tungsten carbide blade smoothly along a precise mechanical slider path, maintaining a uniform touch height across the fiber face. As the cutting slide finishes its forward movement and the top lid opens, an internal gear mechanism draws the scrap piece cleanly into the rear containment bin. Technicians looking to configure their tools or access manuals can visit the official support portal for setup guidelines.
Discover More Premium Fiber Alignment Equipment
To maintain seamless transmission characteristics across high-capacity data networks, using high-quality fiber preparation gear is essential. Discover our collections at Super Flash to build out your technical toolkits:
- For rapid, stress-free fiber terminations, combine your precision cleaver with the high-performance COMWAY A3 ARC Fusion Splicer or the upgraded COMWAY A3+ Mini ARC Fusion Splicer.
- For advanced network installations that demand precision 4-motor PAS alignment, deploy the compact 4-motor alternative.
- For intermediate enterprise networks or dense fiber distribution panels, look to the reliable COMWAY Fusion Splicer C6.
- If you require heavy-duty core alignment tools for large backbone infrastructures, check out the industry-standard COMWAY Fusion Splicer C10S V2.
- For projects requiring specialized endface processing capabilities, explore the technical specifications of our dual-purpose 8-series system or the advanced 9-series endface melter equipment.
Frequently Asked Questions (FAQs)
Q1: Why is the average cleave angle important for fusion splicing?
A: The fusion splicer aligns the physical cores of the fibers before firing the electric arc. If the cleave angle is steep (over 1 degree) or has chips, the glass will fuse unevenly, leading to high attenuation points or bubble formations within the joint. The C109M keeps this angle under 0.5 degrees for maximum splicing efficiency.
Q2: How do I adjust the cutting position when the blade becomes dull?
A: When a specific cutting index begins creating irregular cleaves, you can loosen the central locking screw on the blade carriage and rotate the circular tungsten carbide blade clockwise to the next numbered marker (1 through 16).
Q3: Can the C109M cleaver handle flat FTTH drop cables?
A: Yes. The multi-functional clamp plate integrated into the C109M is designed to hold 250µm fiber, 900µm tight-buffered fiber, and standard 2mm × 3mm rectangular indoor FTTH drop cables securely without requiring any adapter swap.
Q4: Where can I find genuine replacement blades and accessories?
A: You can source original tungsten replacement wheels, backup storage cases, and matching multi-groove stripping tools directly through our online store's dedicated genuine hardware consumables category.
