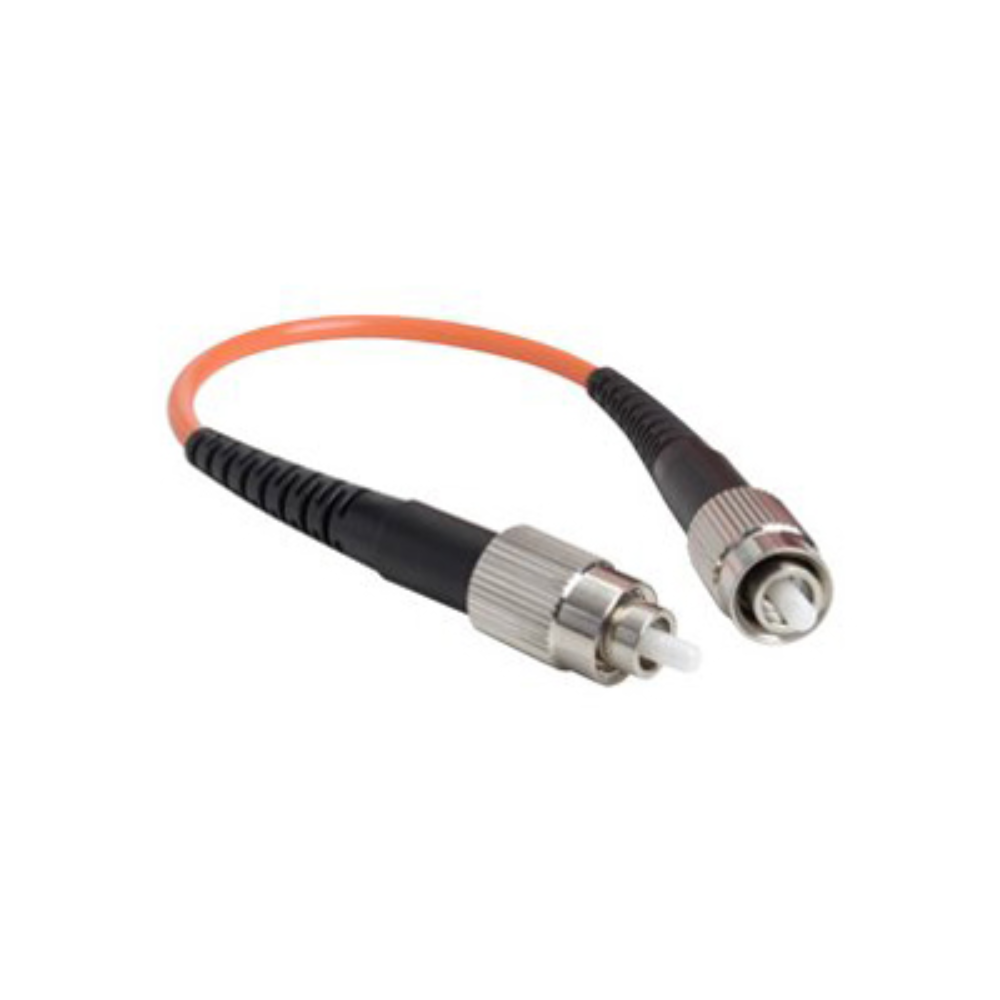

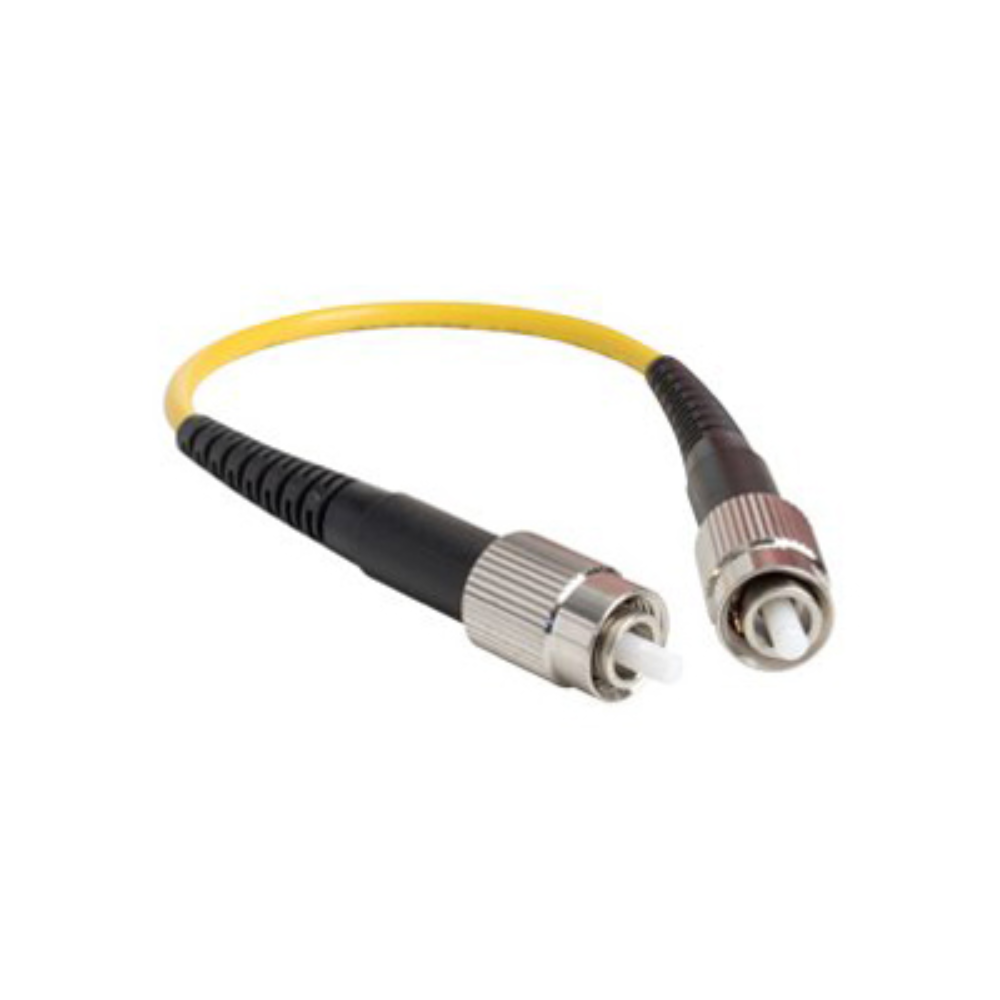

Testing, diagnosing, and validating high-performance optical transceiver equipment requires absolute precision and reliable return pathways. The FC Fiber Optic Loopback Cable is a specialized diagnostic component engineered to route optical signals directly from the transmitter port back to the receiver port within testing environments, laboratory settings, and manufacturing burn-in stations. Featuring a heavy-duty threaded FC connector assembly mated to a high-purity internal fiber loop, this diagnostic patch cord provides a stable, repeatable return signal path for rigorous network auditing.

Essential for telecommunications laboratories, switch manufacturing facilities, fiber optic component testing benches, and field deployment verification kits, this high-durability loopback plug ensures accurate transmitter sensitivity checks, network protocol stress testing, and routine maintenance diagnostics.

Precision FC Threaded Architecture and Mechanical Stability

Unlike snap-in or push-pull connector types, the FC (Ferrule Connector) configuration utilizes a threaded metal barrel coupling mechanism. This screw-on locking structure provides exceptional physical stability, completely eliminating accidental disconnections or micro-vibration alignment shifts during long-term testing cycles. The threaded metal sleeve screws securely into matching bulkhead adapters, locking the optical connection in place even when subjected to high-vibration laboratory environments or automated burn-in racks.

Inside the durable metal housing, the optical fiber is looped cleanly to form an internal bridge between the outgoing and incoming transmission channels. The cable is protected by a flexible, flame-retardant outer jacket that shields the internal glass loop from sharp bends and mechanical stress. For technicians, lab managers, or installation engineers requiring professional fusion splicers, precision cleaning tools, or diagnostic distribution modules to support hardware testing arrays, explore our complete inventory of industrial telecom equipment in the fiber optic cables catalog.

High-Purity Optical Glass and Ultra Physical Contact (UPC) Polishing

At the operational heart of this loopback assembly is high-grade singlemode OS2 (9/125µm) or multimode optical glass, engineered to maintain minimal signal attenuation across standard operational testing wavelengths (such as 1310nm and 1550nm for singlemode, or 850nm and 1300nm for multimode configurations). The internal fiber loop is precisely measured and managed to prevent excessive optical power feedback, protecting sensitive transceiver receiver diodes from overload damage during continuous loopback operations.

Every FC termination end-face undergoes an intensive Ultra Physical Contact (UPC) geometric polishing process. This multi-stage mechanical finish eliminates microscopic surface irregularities, creating a smooth, domed ferrule face that maximizes direct core-to-core optical contact. The result is exceptionally low insertion loss (typical ≤ 0.25dB) and high return loss metrics, ensuring clean, dependable diagnostic data streams. For engineering squads building out comprehensive testing benches or organizing complex distribution architectures, consult our high-performance distribution frameworks to review professional optical management platforms.

Key Technical Specifications

Diagnostic Utilization and Handling Guidelines

1. Secure the Threaded Coupling Properly: When attaching the FC loopback to a test adapter, screw the metal barrel down evenly until finger-tight. Avoid over-tightening with metal tools, as excessive torque can warp the internal ceramic ferrule alignment.
2. Inspect and Clean Before Testing: Diagnostic loops are plugged in and removed frequently during testing. Dust on the polished ferrule end-face can skew test metrics. Always clean the FC connector tip with a specialized optical click-cleaner prior to inserting it into test gear.
3. Verify Transceiver Power Levels: Ensure your laser transceiver output power matches the loopback rating to prevent receiver saturation. For advanced laboratory validation teams, verify all diagnostic setups using certified optical power meters.
