When deploying mission-critical network architectures, data integrity, physical longevity, and high bandwidth capacity are non-negotiable. The TMT Global 12-Core Armored Single-Mode Fiber Optic Cable is a carrier-grade networking solution designed to withstand harsh operating environments while delivering lightning-fast data transmission speeds over long distances. Built with premium ITU-T G.652D and G.657A1/A2 single-mode optical fibers, this armored multi-core cable provides the ideal infrastructure for telecommunications backbones, enterprise campus networks, and industrial automation control systems.

Advanced Engineering for Maximum Signal Integrity

At the heart of the TMT-121LPK are 12 independent optical fiber strands, meticulously manufactured to reduce attenuation (signal loss) across long-haul deployments. Operating with a maximum attenuation value of just 0.40 dB/km at the 1310 nm wavelength and a microscopic 0.25 dB/km at 1550 nm, this cable guarantees exceptional clarity for high-throughput networks.

The integration of G.652D standard elements balances zero-dispersion characteristics in the 1310 nm band, while the G.657 macro-bending performance allows for a highly flexible installation profile. With a core/clad concentricity error of less than 0.5 μm, network engineers can achieve ultra-low loss splices during field termination, saving valuable time and minimizing overall system insertion loss.

Uncompromising Environmental Armoring

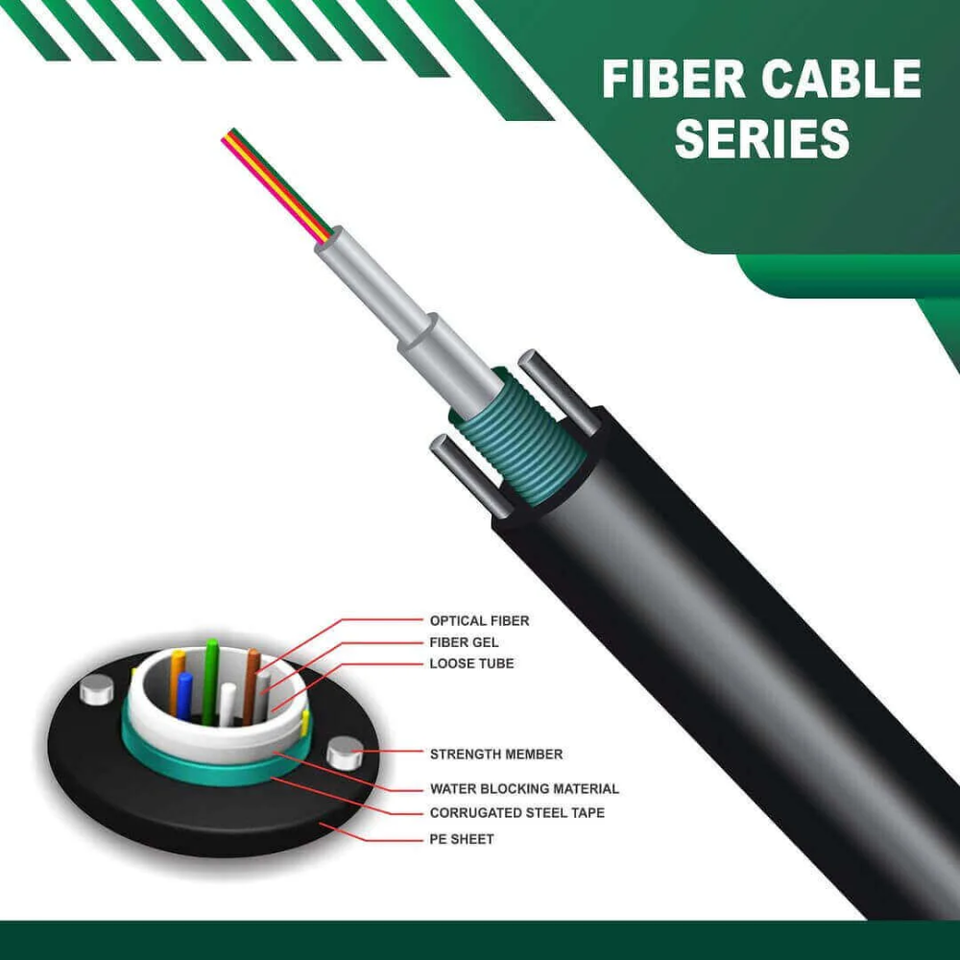

Outdoor installations expose sensitive network lines to extreme physical stress, including mechanical crush forces, rodent damage, and water moisture ingress. The TMT-121LPK solves these real-world hazards using a multi-layered defensive design:

• Thixotropic Jelly Filling: The loose buffer tubes are tightly packed with a specialized moisture-blocking gel compound. This layer acts as a barrier to keep moisture away from the glass cores, even in heavy rain zones or high-humidity underground conduits.
• PBT Loose Tubes: The fibers are housed within high-strength Polybutylene Terephthalate (PBT) tubes, which offer superior structural cushioning against thermal expansion and mechanical shifting.
• Corrugated Steel Tape Armor (CSTA): Wrapped completely around the core assembly, a layer of rugged corrugated steel tape armor delivers unmatched protection against sharp crush impacts and rodent attacks.
• Heavy-Duty Polyethylene (PE) Outer Jacket: The outer shell is extruded from high-density Polyethylene (PE), providing incredible resistance to UV solar rays, chemicals, abrasions, and broad temperature fluctuations ranging from -40°C to +70°C.

High Tensile Strength and Reliable Physical Dynamics

Installing long fiber lines through underground ducts or pulling them across overhead structures requires high tensile endurance. The TMT-121LPK is structurally engineered to survive installation pressures up to 2700 Newtons (N) of pulling force without stretching the inner glass fibers, settling down to a stable operational load capacity of 1700 N once laid in place.

The cable’s balanced 7.2mm to 12mm physical profile keeps dead-weight low at roughly 45 kg per kilometer, allowing installation crews to quickly pull long sections off the standard 2000-meter drum. Dual integrated polyester ripcords run parallel underneath the outer shell, enabling technicians to strip back the armored layer safely and smoothly without accidental internal blade strikes.

Versatile Deployment Scenarios

Whether establishing high-capacity FTTH (Fiber-to-Home) loops, setting up high-definition CCTV security backbones over a massive industrial complex, or running high-density inter-building links across university campuses, the TMT-121LPK offers exceptional versatility. It functions smoothly across a broad array of enterprise hardware, making it easy to splice directly into premium Fiber Optic Patch Panels, mount cleanly inside high-density Fiber Optic ODF units, or connect via our robust SC/APC patch cables.

To ensure seamless end-to-end connectivity from the main backbone to distribution switches, it is highly recommended to use premium termination components. For reliable cross-connect networks, deploying premium SC/UPC to LC/UPC Single-Mode Duplex Fiber Optic Patch Cables ensures flawless high-speed transmission. Depending on your specific rack hardware setups, you can also seamlessly transition your signal layout using an FC/APC to SC/UPC Single-Mode Simplex Fiber Optic Patch Cable, or utilize an FC/UPC to ST/UPC Single-Mode Simplex Fiber Optic Patch Cable for traditional industrial equipment interface mappings.

The compatibility with both standard OS2 infrastructures and macro-bend sensitive settings means this 12-core single-mode solution adapts perfectly to legacy networking systems and next-generation architecture upgrades alike.

Technical Specifications

Frequently Asked Questions (FAQs)

Q: Can this armored cable be directly buried underground without protective conduit?
A: Yes, the corrugated steel tape armor (CSTA) and moisture-resistant PE outer jacket are specifically designed to protect the internal optical strands from subterranean pressure, soil rock shifts, and rodent hazards, allowing for direct-burial deployment.

Q: What is the benefit of having a mix of G.652D and G.657A1/A2 fiber compliance?
A: G.652D compliance ensures low attenuation and zero dispersion across long distances, making it perfect for main backbones. G.657 compliance adds macro-bend resistance, letting the cable handle sharp corners and tight spaces inside splice enclosures without causing micro-crack signal drops.

Q: How does the thixotropic jelly filling protect the fiber elements over time?
A: The thixotropic gel serves as a non-hardening, water-blocking shield inside the PBT buffer tube. It cushions the glass fibers from physical vibration and completely prevents the migration of water down the length of the cable if the outer jacket is ever compromised.

Q: Is this cable compatible with standard optical network hardware?
A: Absolutely. The TMT-121LPK easily integrates with standard enterprise-grade distribution components, including high-capacity Fiber Optic Patch Panels, rackmount Network Cabinets, and field-ready distribution boxes.
