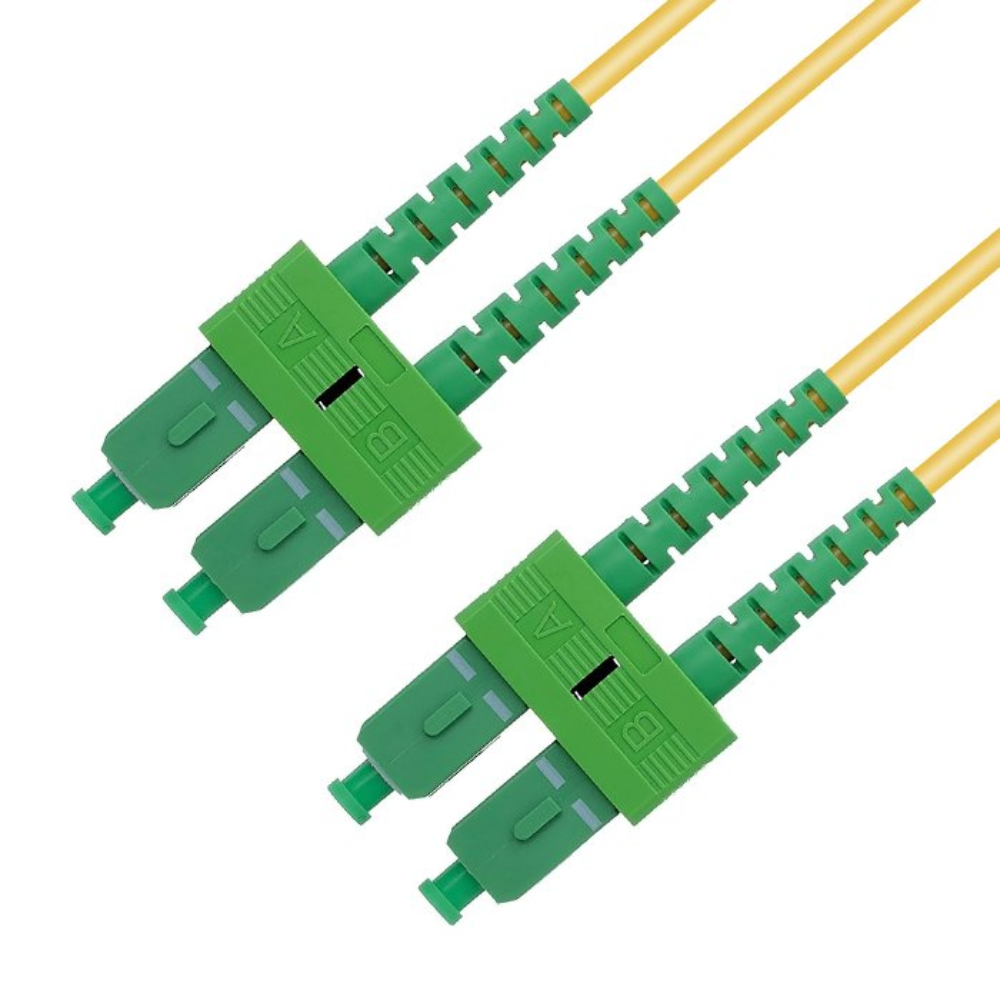

When deploying ultra-reliable high-speed communication systems, signal clarity and minimal reflection are absolutely vital. The SC/APC to SC/APC Single-Mode Duplex Fiber Optic Patch Cord is a professional-grade networking cable engineered to bridge high-density data connections with unmatched precision. Featuring dual fiber strands inside a single core structure, this single-mode OS2 patch cable is custom-tailored for high-capacity enterprise networks, carrier telecom systems, fiber-to-the-home installations, and structured datacenter layouts.

Premium Angled Physical Contact (APC) Technology

At the core of this cable's outstanding performance is the specialized Angled Physical Contact polishing on the SC connector tips. Unlike standard flat-polished connectors that reflect signals back down the core, APC connectors utilize a precise 8-degree angled polish geometry. This distinct mechanical angle causes back reflections to deflect straight out into the outer cladding of the glass rather than bouncing directly back to the transmitter source.

The practical result of this advanced structure is an exceptional return loss rating of 60dB or better alongside a low insertion loss value of 0.3dB or less. By virtually eliminating back reflection hazards, this duplex jumper preserves clean data paths across ultra-sensitive laser equipment, high-definition optical television feeds, and long-range gigabit networking lines.

High-Tier OS2 Single-Mode Transmission Core

Built upon industry-leading 9/125 micron single-mode optical fibers, this patch cable is built to handle maximum transmission distances with exceptionally low internal signal drop. OS2 grade fibers offer a significantly lower attenuation rate compared to legacy single-mode equivalents, enabling network signals to travel across broad campus layouts without requiring frequent regeneration checkpoints.

The underlying fiber structure supports dual-window laser optimized transmission wavelengths across both 1310nm and 1550nm channels. This structural versatility ensures full engineering compliance with high-bandwidth configurations, including high-speed fiber transceivers, data switches, dense wave division multiplexing networks, and precision automated optical test gear.

Rugged Physical Assembly and LSZH Construction

Datacenter racks and high-density network frames present harsh routing environments where tight spaces can twist or stress standard fiber patch cords. This duplex cable answers those design challenges with robust external layering:

• Low Smoke Zero Halogen Outer Sheath: The entire patch cord is jacketed inside a highly flame-retardant Low Smoke Zero Halogen compound. In case of an electrical fire or extreme thermal exposure, this protective jacket emits minimal smoke and entirely eliminates toxic halogen gas fumes, making it ideal for enclosed spaces or poor ventilation zones.
• Duplex Clamping Mechanism: The paired SC/APC connectors are held securely together by a robust, field-removable duplex clip. This design aligns the two lines for simple, one-step insertions while allowing network technicians to manage individual polarity paths effortlessly.
• Heavy-Duty Strain Relief Boots: Each termination point features molded strain relief boots that distribute pulling forces away from the underlying glass core during cable installation and management updates.

Versatile Enterprise Applications

Whether building local area network infrastructure, wiring complex optical distribution frames, or configuring high-speed data links between core servers and enterprise storage systems, this single-mode duplex jumper delivers flawless performance. Its universal SC connector brass standard provides widespread compatibility across patch panels, hardware distribution boxes, industrial media converters, and high-performance telecom terminals, making it a reliable staple for network scaling.

For networks utilizing mixed connection types or standard flat-polished hardware ports, we also offer a wide selection of infrastructure jumpers. If your distribution frames require variant terminations, consider deploying our high-quality SC/UPC to LC/UPC Single-Mode Duplex Patch Cables for reliable cross-connections. For industrial environments transitioning from legacy or specialized terminals, you can optimize your fiber rack interface layouts using either the FC/APC to SC/UPC Single-Mode Simplex Cable or the standard FC/UPC to ST/UPC Single-Mode Simplex Patch Cable.

Technical Specifications

Frequently Asked Questions (FAQs)

Q: What is the main structural difference between SC/APC and SC/UPC connectors?
A: SC/APC connectors feature a specialized 8-degree angled ferrule polish, whereas SC/UPC connectors have a completely flat profile. This angled face causes back reflections to escape rather than traveling back into the network, resulting in a much higher return loss rating that protects sensitive hardware.

Q: Can I connect an SC/APC connector directly into an SC/UPC hardware port?
A: No, connecting an angled APC ferrule directly into a flat UPC interface will cause high attenuation losses and can potentially scratch or permanently damage the delicate optical glass faces on both sides. Always mate APC connectors with matching APC ports.

Q: Is this single-mode OS2 fiber cord backward compatible with older OS1 setups?
A: Yes, OS2 fibers share the identical 9/125 micron core dimensions as traditional OS1 lines and are fully backward compatible. However, it is optimized with a lower overall attenuation rate for long distances and high-performance applications.

Q: What are the primary safety benefits of using an LSZH cable jacket?
A: Low Smoke Zero Halogen jackets are built with specialty non-halogen materials. If caught in a data center fire, they produce very little physical smoke and do not release highly toxic, acidic halogen gases, ensuring enhanced safety for both engineering staff and surrounding networking equipment.
