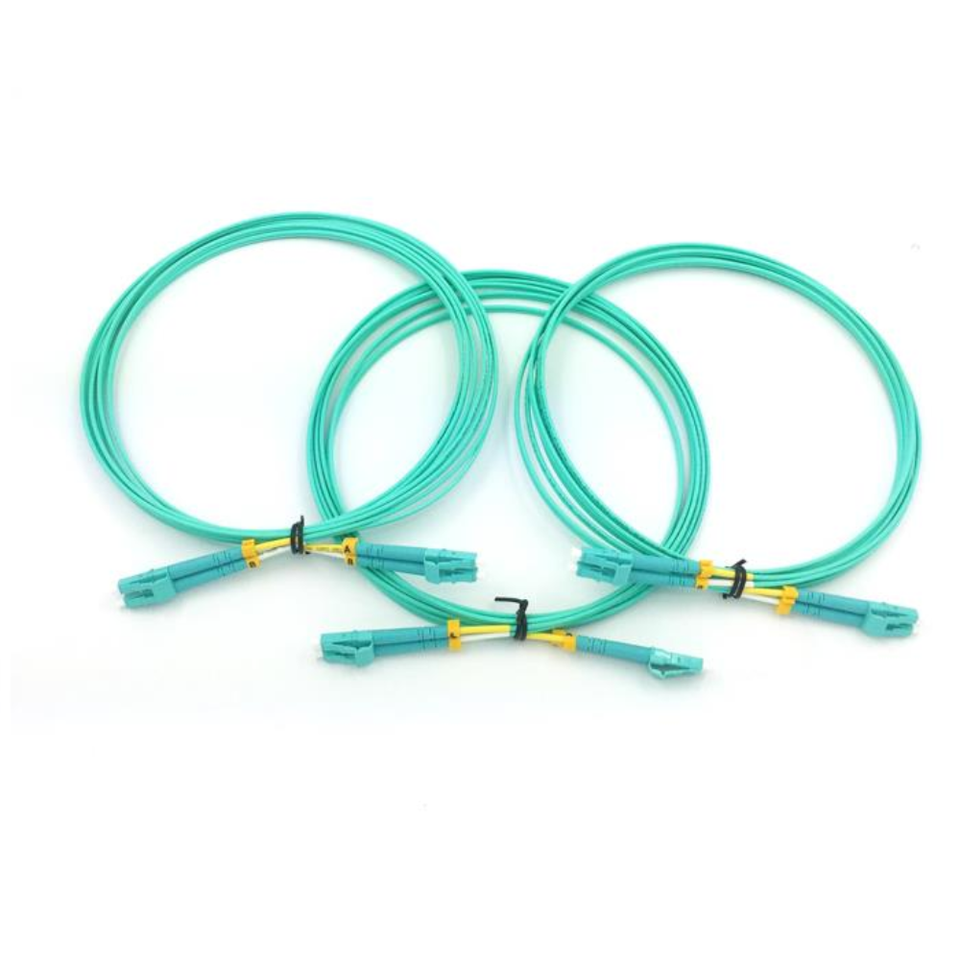

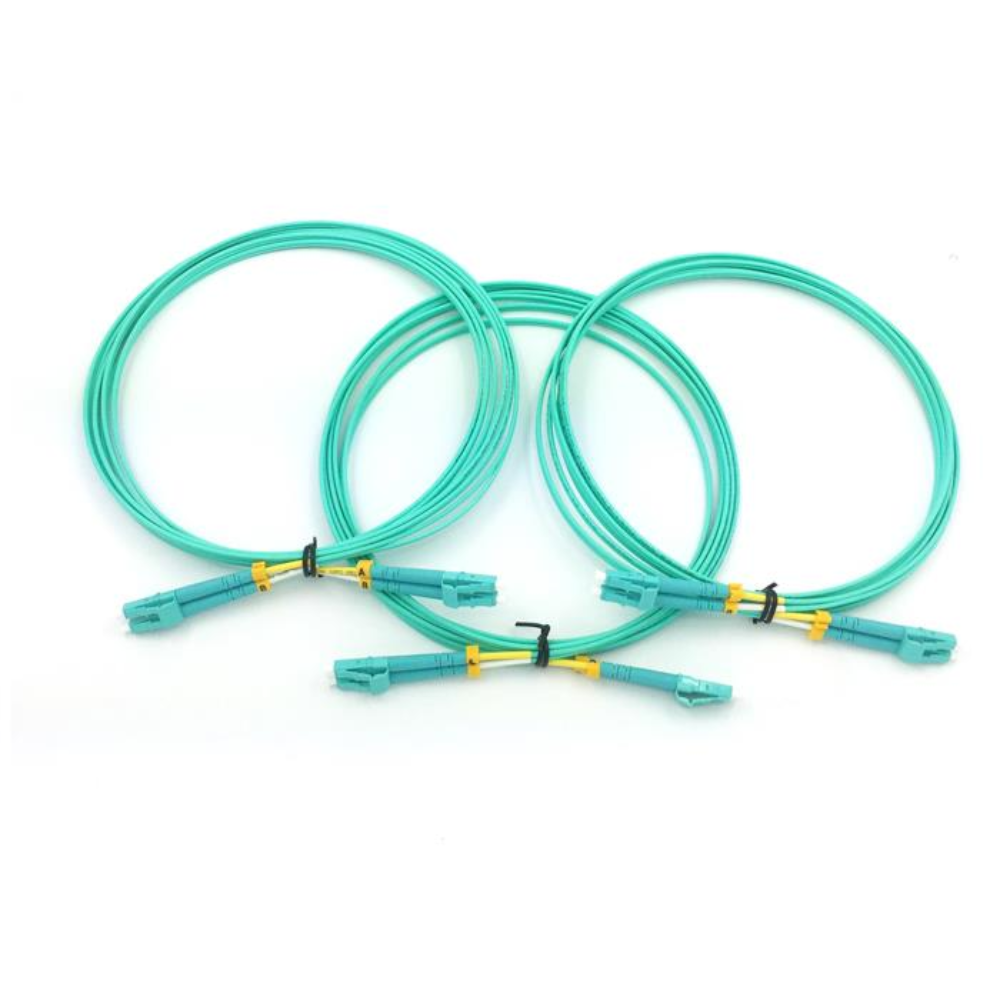

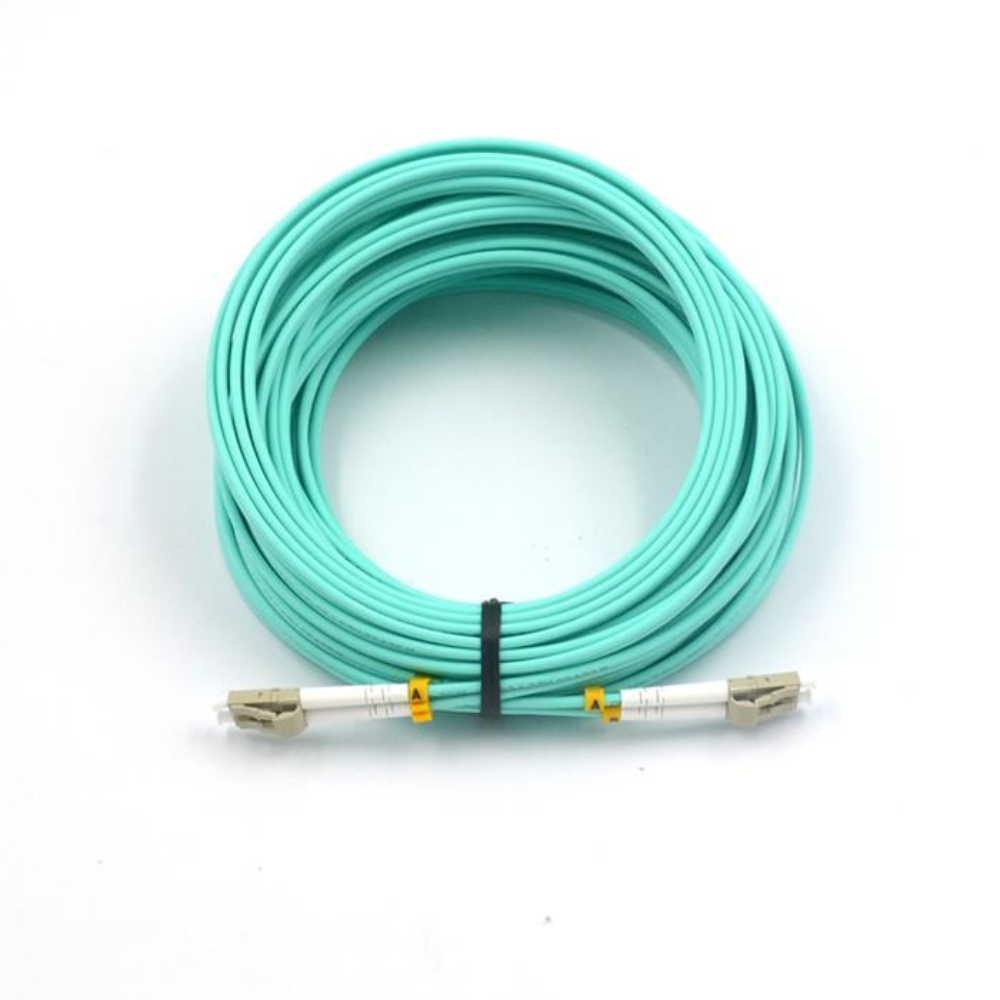

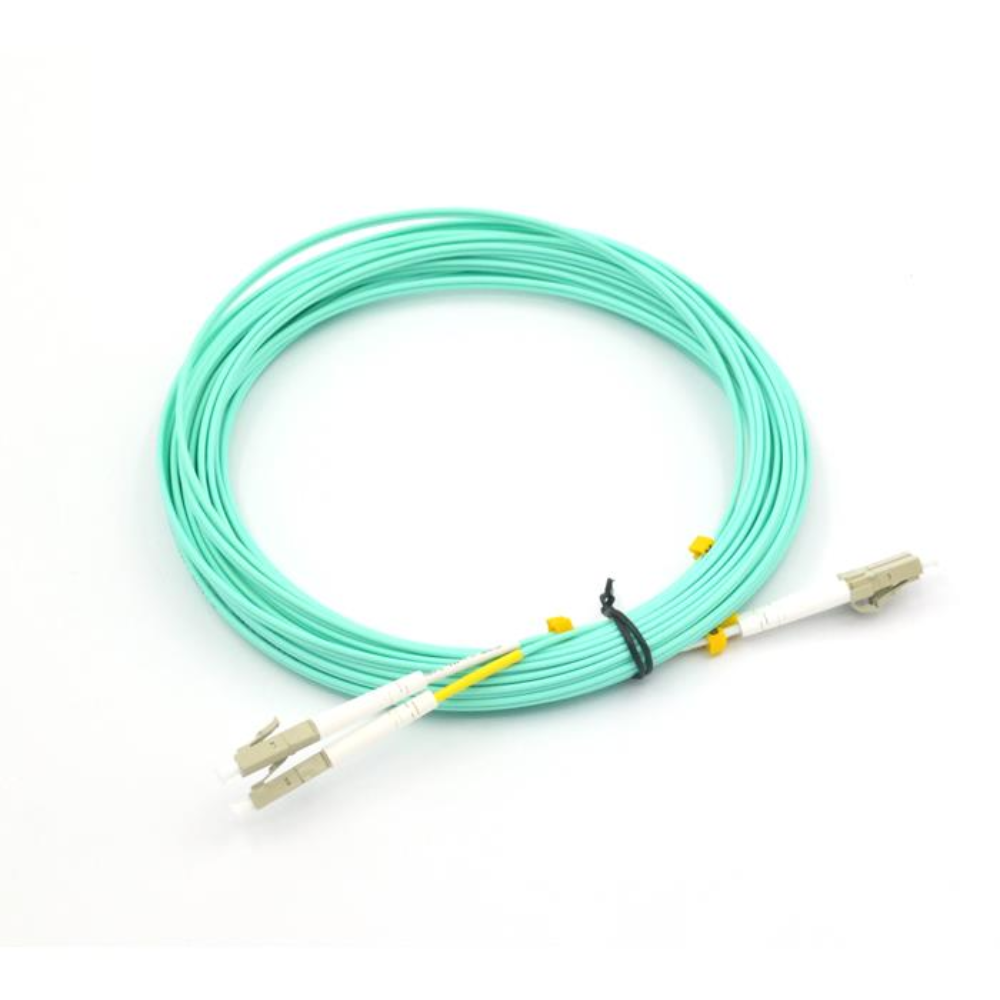

High-density data environments demand networking infrastructure that is both remarkably fast and uncompromisingly reliable. The LC/UPC to LC/UPC Multimode OM3 Duplex Fiber Optic Patch Cable is engineered precisely to meet these rigorous standards. Optimized for 10 Gigabit Ethernet applications, this aqua-jacketed fiber jumper acts as a vital backbone for modern local area networks (LANs), storage area networks (SANs), and high-speed data center cross-connects.

By utilizing advanced laser-optimized multimode fiber (LOMMF) technology, this cable balances cost-efficiency with high-bandwidth capabilities, ensuring your network remains future-proof and resilient against signal degradation.

Advanced Design and Premium Build Quality

At the core of this assembly is an OM3 50/125-micron glass core, meticulously designed to pull maximum efficiency out of 850nm Vertical-Cavity Surface-Emitting Lasers (VCSELs). Unlike legacy OM1 or OM2 configurations, OM3 glass is optimized to mitigate modal dispersion (the spreading out of light pulses as they travel), allowing data to move rapidly across longer operational spans.

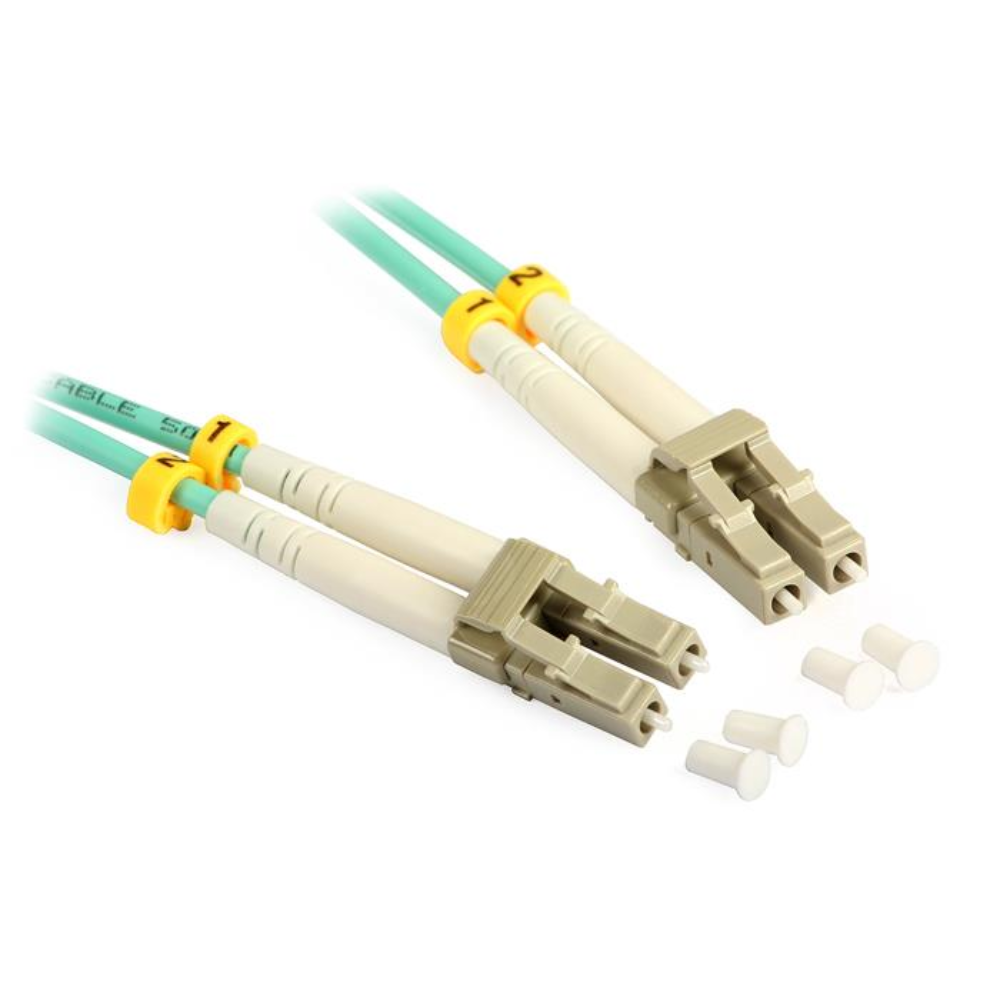

The cable features two small-form-factor LC connectors on each end. The LC connector’s 1.25mm ceramic ferrule cuts the physical footprint of standard SC connectors exactly in half, effectively doubling panel space in densely populated patch bays and server racks. Both terminations feature an Ultra Physical Contact (UPC) polish. The UPC finish ensures a highly polished, dome-shaped end-face that minimizes back-reflections, resulting in a significantly lower insertion loss (typically less than or equal to 0.2dB) and superior return loss performance.

Wrapped in a heavy-duty Duplex zip-cord configuration, this patch cord allows for simultaneous bidirectional data transmission. The outer jacket is available in industry-standard PVC or Low Smoke Zero Halogen (LSZH) materials, protecting internal glass elements from physical stress while meeting strict building safety codes regarding toxic smoke emissions during thermal events.

Unmatched 10Gb Performance and Distance Metrics

When upgrading or deploying enterprise networks, understanding distance thresholds is critical to preventing signal attenuation (loss of signal strength). The OM3 multimode fiber construction is explicitly rated for 10GBASE-SR applications, supporting blistering 10 Gigabit transmission speeds up to 300 meters.

For legacy infrastructures, it remains fully backward compatible, supporting 1Gb Ethernet spans up to 600 meters. Furthermore, it easily accommodates next-generation upgrades, running 40Gb and 100Gb network architectures over shorter distances (up to 100 meters using parallel optics solutions like MTP/MPO or specialized transceivers).

Key Technical Specifications

Installation Best Practices

1. Respect the Bend Radius: Avoid bending the patch cord tighter than a 30mm radius. Kinking or over-bending fiber glass causes micro-bends, which induce massive packet drop rates and can permanently fracture the internal core.
2. Inspect and Clean: Microscopic dust particles are the primary cause of fiber optic link failures. Always clean the LC ceramic ferrules with a dedicated 1.25mm fiber optic click-cleaner or lint-free isopropyl alcohol wipes before inserting them into adapter panels or transceivers.
3. Use Strategic Cable Management: Utilize horizontal and vertical cable managers to eliminate structural tension on the connector boots. Allowing fiber cables to hang unsupported puts physical stress on the assembly, degrading alignment over time.
