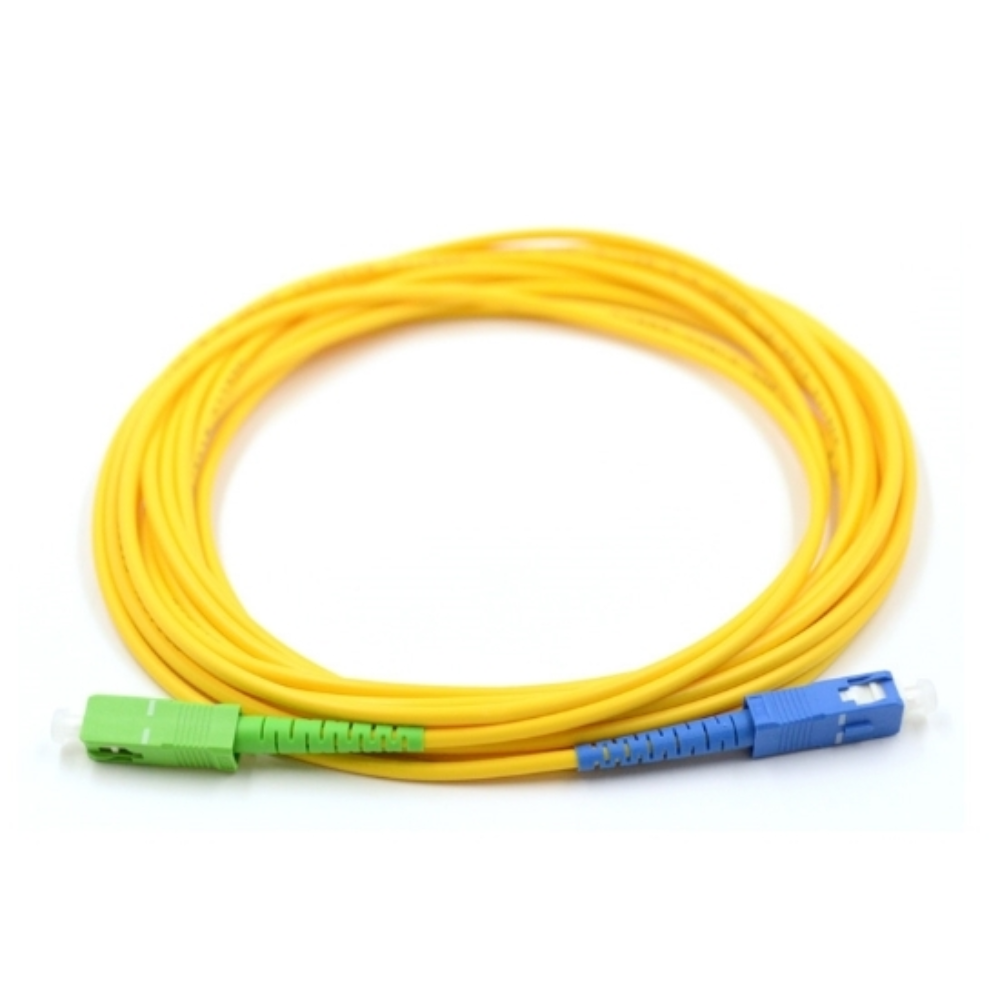

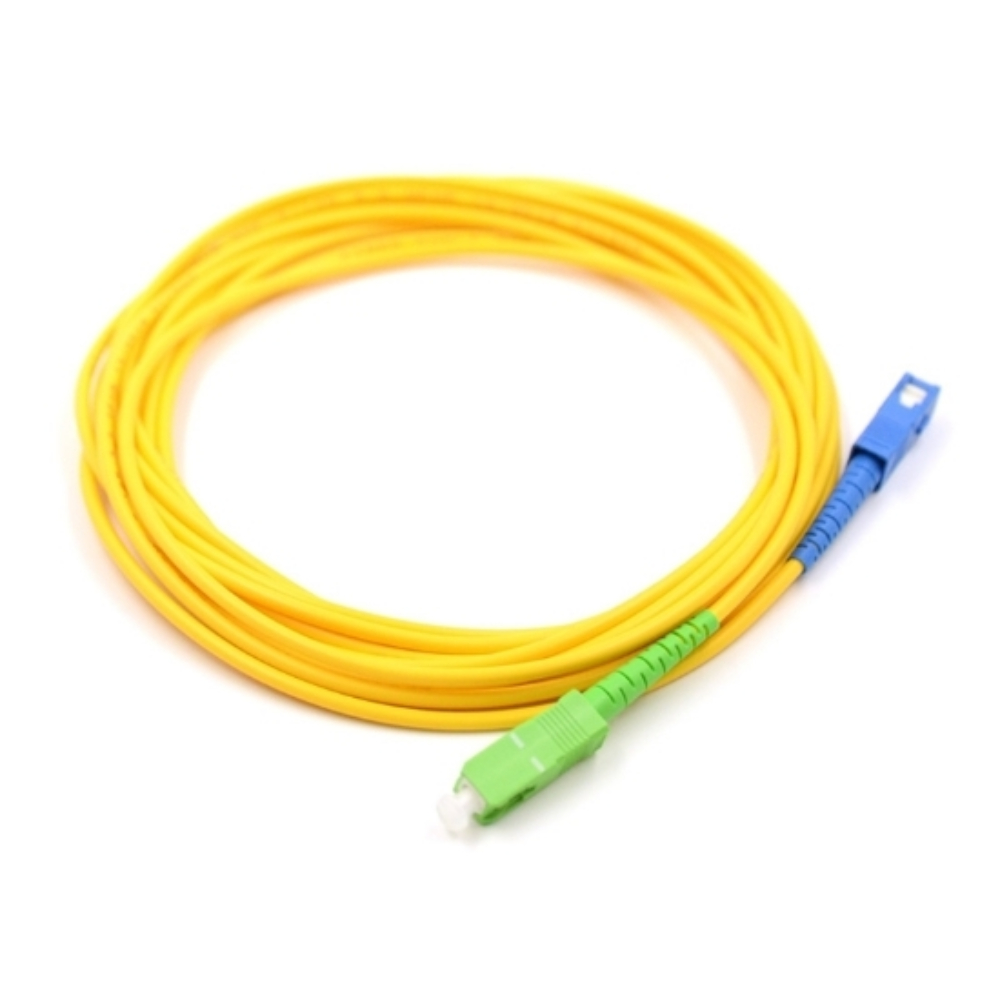

SC/APC to SC/UPC Single Mode Simplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 15.00
100% satisfaction guaranteed with every order!
Upgrade your network infrastructure with the reliable and high-performance SC/APC to SC/UPC Single Mode Simplex Fiber Patch Cord. Designed for precision data transmission, telecommunication networks, data centers, and industrial fiber optic applications, this hybrid patch cable ensures minimal signal attenuation and maximum bandwidth capabilities. Whether you are setting up enterprise local area networks (LAN), wide area networks (WAN), or connecting active cross-connect equipment with mixed port polishes, our fiber jumpers deliver exceptional optical performance you can count on.
Engineered with premium 9/125μm single-mode fiber, this simplex cable supports long-distance data transmission with superior return loss and low insertion loss characteristics. The connectors feature high-precision ceramic ferrules combining an Angled Physical Contact (APC) polish on one SC end to minimize back reflections and an Ultra Physical Contact (UPC) polish on the opposing SC end, ensuring optimal physical contact and seamless light transfer across the connection core. The durable outer jacket provides excellent protection against tension, mechanical stress, and environmental wear while maintaining flexibility for neat and efficient cable management in tight rack spaces.
To accommodate diverse installation requirements across various server rooms and telecom setups, this product is available in a comprehensive range of lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each cable is rigorously tested and inspected to meet industry standards, guaranteeing plug-and-play reliability right out of the box.
Key Specifications & Features
- Connector Type: SC/APC to SC/UPC (Simplex Hybrid Polish)
- Fiber Type: Single Mode 9/125μm (G.652D / G.657A1 compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 60 dB (APC end), ≥ 50 dB (UPC end)
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom configurations, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What is the difference in polish between the two ends of this patch cord?
This cable features an SC/APC (Angled Physical Contact) connector on one end to minimize back reflection for sensitive applications, and an SC/UPC (Ultra Physical Contact) connector on the other end for standard equipment interfaces.
2. Can I connect an APC port directly to a UPC port using this cable?
Yes, this hybrid cable is specifically engineered to bridge components or ports requiring an SC/APC connection on one side and an SC/UPC connection on the other.
3. What available lengths can I choose from for this patch cord?
We supply this cable in multiple standardized variations to fit your exact network layout: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this patch cord suited for outdoor network architecture?
This standard simplex patch cord is built for indoor data centers, server rooms, and telecommunication distribution frames. For external weather-exposed deployments, please check out our outdoor weatherproof line.
