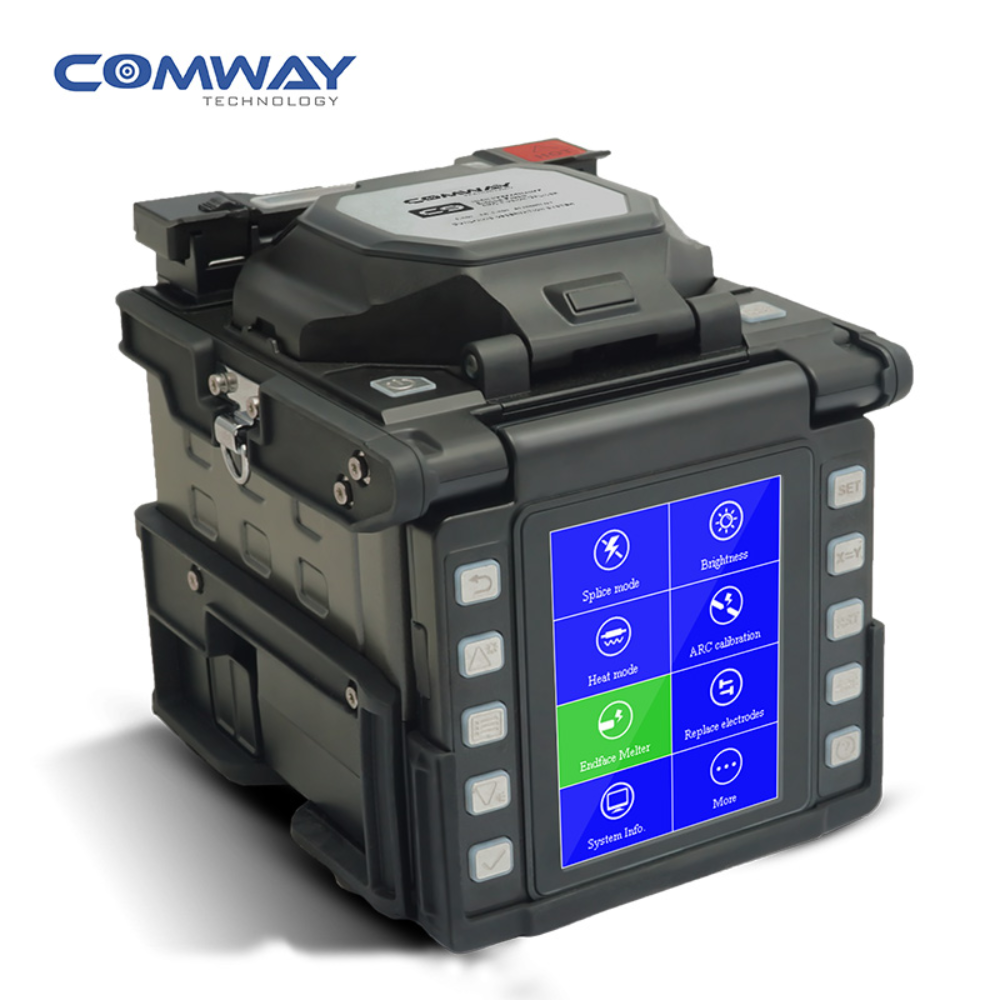

The Ultimate High-Performance 2-in-1 Fusion Splicer & Fiber Endface Melter

The COMWAY C9 is a state-of-the-art, high-performance backbone network fusion splicer engineered for professional fiber optic technicians. Designed and backed by top technology from the U.S.A., this advanced tool is a versatile 2-in-1 device that functions both as a precise fusion splicer and a patented Fiber Endface Melter. Whether you are deploying massive long-haul backbone networks, FTTx installations, or high-density data centers, the COMWAY C9 delivers unmatched speed, reliability, and precision.

Equipped with an advanced 6-motor active core-to-core alignment system, the COMWAY C9 drastically reduces splice loss and ensures perfect alignment every single time. Its robust, rugged design is built to withstand the harshest field conditions, offering exceptional dustproof, waterproof, and shock-resistant capabilities. Pair it with the industry-leading COMWAY C10 Fusion Splicer or access replacement consumables like the COMWAY CE-03 Replacement Electrodes to maintain peak efficiency in your splicing toolkit.

Key Features & Advanced Technologies

1. Patented 2-in-1 Fiber Endface Melter

Unlike traditional splicers, the COMWAY C9 features a built-in, patented Fiber Endface Melter. This technology allows technicians to melt the fiber endface safely, eliminating surface irregularities and dramatically improving optical connection quality. It’s a revolutionary development that guarantees clean, high-efficiency connections without needing separate polishing or melting tools.

2. Advanced 6-Motor Active Core Alignment

The C9 uses six high-speed motors in a true 3-axis (X-Y-Z) core alignment configuration. Coupled with real fiber core visualization technology, it automatically identifies optical fiber types (such as SM, MM, DS, NZDS, and BI) and selects the optimal splicing program, ensuring an ultra-low average loss of only 0.02dB for Single-Mode (SM) fiber.

3. Ultra-Fast Splicing and Heating Cycle

Time is money in the field. The COMWAY C9 features an incredibly fast 6-second splicing time (under the [SM Fast] program) and a swift 12-second typical heating cycle. The built-in rapid dual-heater is energy-efficient and automatically begins heating as soon as the heater cover is closed, accelerating field operations.

4. Smart ARC Control Technology

Environmental variables like altitude, humidity, and temperature can compromise ARC stability. With COMWAY’s Smart ARC Control Technology, the machine automatically calibrates the ARC discharge power in real-time based on atmospheric conditions and previous splicing results. This maintains a highly stable and consistent splice loss regardless of whether you are working at sea level or up to 5,000 meters in altitude.

5. Long-Lasting Battery & Smart Electrodes

Power your projects all day with the high-capacity, removable 8,400mAh battery, providing over 320 full cycles of continuous splicing and heating on a single charge. The C9 also utilizes specialized ID Electrodes designed to deliver up to 5,000 arc discharges, complete with automated replacement warning alerts when service is required.

Product Specifications

Standard Package Contents

The COMWAY C9 comes as a complete, field-ready kit packaged inside a heavy-duty carrying case. The package includes:

• COMWAY C9 Fusion Splicer & Endface Melter (Main Body)
• High-Precision Fiber Cleaver
• High-Capacity Battery Pack (BAT-03)
• AC Adapter (AC-02) and AC Power Cable
• DC Charger Cable (DCC-01)
• Extra Pair of Replacement Electrodes (CE-03)
• Cooling Tray
• USB Cable (USBC-01)
• Hand Strap & Shoulder Carrying Strap
• Alcohol Dispensing Bottle
• Heavy-Duty Protective Carrying Case (CP-01)

Frequently Asked Questions (FAQ)

What is the main advantage of the COMWAY C9 over other splicers?

The COMWAY C9 is unique because it combines a high-end 6-motor backbone network fusion splicer with a patented Fiber Endface Melter in a single unit. This allows technicians to clean up and prepare the fiber endface in the field, reducing optical reflectance and safeguarding against high-loss connection failures.

Can I charge the battery while operating the fusion splicer?

Yes, the COMWAY C9 supports simultaneous splicing, heating, and battery charging. The battery module is also detachable and can be charged independently of the main splicer body for added flexibility.

How do the ID electrodes benefit my field work?

COMWAY's ID electrodes communicate directly with the machine. The splicer scans the electrode to verify its origin, tracks its exact usage, and displays smart warnings when the 5,000 ARC limit is reached, ensuring you never perform a critical splice with worn-out electrodes.

Is the device protected against theft?

Yes, the COMWAY C9 offers remote tracking, locker capabilities, and optional GPS positioning via an integrated SIM card system to prevent theft and unauthorized usage.

Where can I get replacement parts or accessories?

We stock a full line of genuine COMWAY accessories. You can easily order replacement CE-03 replacement electrodes, extra batteries, and optical fiber cleavers directly through our store.
