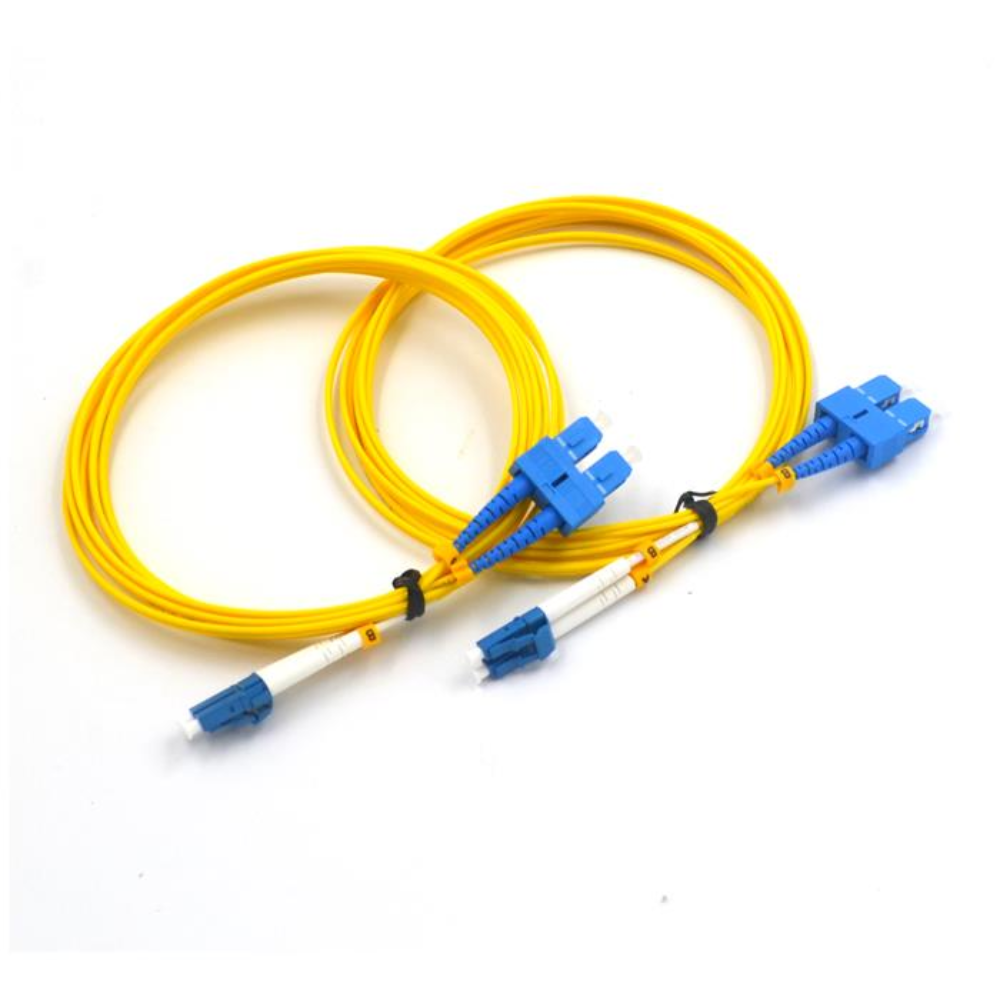

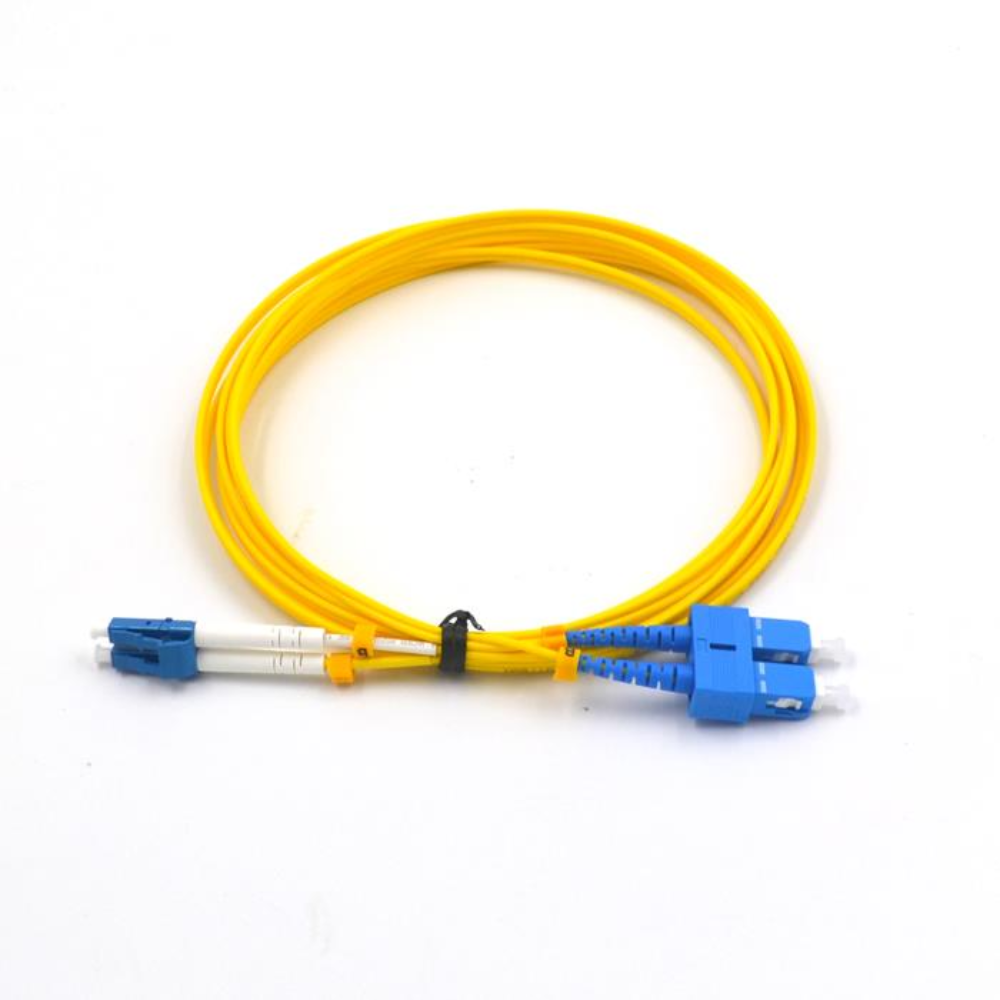

When deploying high-speed enterprise networks and high-density telecom architectures, seamless component connectivity and signal precision are essential. The SC/UPC-LC/UPC Single-Mode Duplex Fiber Optic Patch Cable is a professional-grade networking jumper engineered to bridge distinct hardware form factors with minimal attenuation. Featuring premium single-mode optical fiber strands housed in a robust duplex jacket, this patch cord provides the ultimate link for data centers, local area networks, and long-haul carrier environments.

Versatile Cross-Connector Design for Modern Hardware

This optical patch cable solves hardware mating challenges by combining two of the industry's most trusted connector configurations. On one end, it features standard SC (Subscriber Connector) push-pull terminals, which offer excellent mechanical stability and are widely utilized in standard distribution frames and legacy equipment. On the opposite end, it utilizes small-form-factor LC (Lucent Connector) snap-in interfaces, which halve the space required for terminations and integrate perfectly with high-density enterprise switches, SFP transceivers, and patch panels.

This hybrid termination format makes the jumper a highly adaptable asset for network migration projects, allowing engineers to establish clean, reliable pipelines between standard optical mainframes and high-density line cards without introducing complex conversion media.

Ultra-Physical Contact (UPC) and Optimal Performance

To deliver maximum throughput and protect delicate network components, both the SC and LC connectors undergo a meticulous Ultra-Physical Contact (UPC) machine polishing process. This precise radiused finish yields an extended surface mating area when joined inside adapters, reducing micro-gaps that compromise data transmission.

The practical result of this advanced finishing technique is an exceptionally low typical insertion loss of just 0.15dB (with a maximum threshold of 0.30dB), combined with a high return loss rating of 50dB or higher. By preventing stray back-reflections from reaching active laser transmitters, the cable ensures the long-term operational integrity of premium transceivers while preserving optimal wave propagation.

Premium OS2 9/125 Micron Single-Mode Architecture

Built with standard 9/125µm fiber cores, this duplex cable is fully optimized for single-mode optical infrastructures operating across dual-window wavelengths of 1310nm and 1550nm. The OS2-grade glass features superior low-attenuation performance, making it highly reliable for bridging server nodes, high-capacity switches, and backbone lines over extended industrial layouts.

The duplex design arranges two independent transmission pathways parallel within a durable outer sheath, allowing for continuous bidirectional data streams. The assembly is thoroughly tested with automated geometric inspection tools and interferometers, guaranteeing out-of-the-box consistency for mission-critical industrial deployments.

To support diverse network topology configurations, we offer a robust portfolio of termination jumpers. If your architecture relies on ultra-precise angled interfaces to completely suppress back reflections, consider deploying our high-performance SC/APC to SC/APC Single-Mode Duplex Patch Cords. For environments transitioning from legacy instrumentation or specialized telecom gear across fiber optic cables, you can optimize your distribution hub layout using either an FC/APC to SC/UPC Single-Mode Simplex Cable or a robust FC/UPC to ST/UPC Single-Mode Simplex Patch Cable. Additionally, for core-to-core hardware connections where ultra-flat connector consistency is critical across your mainframe terminal ports, our high-capacity armored cable solutions deliver optimal matching efficiency.

Technical Specifications

Frequently Asked Questions (FAQs)

Q: What is the main advantage of an SC-to-LC hybrid fiber patch cable?
A: This design bridges standard large-profile interfaces with small-form-factor devices. It allows you to connect legacy patch panels or optical units that use SC slots directly to high-density line switches, routers, and SFP transceivers that utilize LC connections.

Q: Can I use this single-mode cable on a multimode network setup?
A: No, single-mode cables feature a very thin core (9 microns) designed for long-distance lasers. Multimode hardware uses a larger glass core (50 or 62.5 microns). Mixing single-mode glass with multimode optics will cause high attenuation and connection drops.

Q: What does the UPC designation indicate on the connectors?
A: UPC stands for Ultra-Physical Contact. It means the connector tips are polished with an extended dome-shaped curve to ensure high-contact fiber alignment. This lowers insertion loss and keeps the return loss value above 50dB to protect laser components from back-reflections.

Q: Are the duplex connectors detachable if individual fiber lines need routing?
A: The duplex configuration uses a sturdy physical clip to keep both strands aligned for clean installation. If individual line management is necessary, the clips can be carefully detached to separate the strands while maintaining proper polarity.
