Professional High-Performance PAS Fusion Splicer with Endface Melting Technology

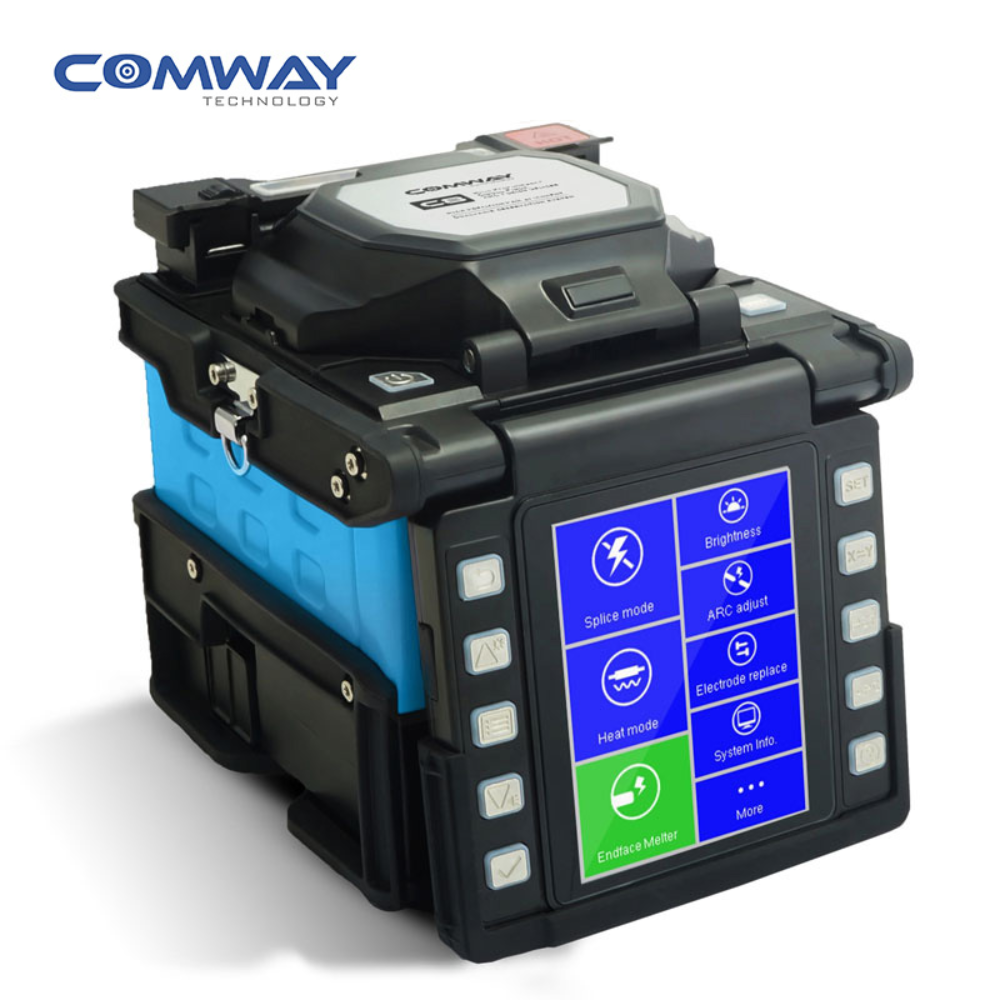

The COMWAY C8 is a professional-grade, high-performance optical fiber fusion splicer engineered to meet the demanding requirements of FTTx, metropolitan, and local access network installations. Combining state-of-the-art American engineering with practical field ergonomics, the COMWAY C8 stands out as an innovative 2-in-1 device. It functions seamlessly as both a rapid fusion splicer and a patented Fiber Endface Melter, allowing network technicians to prepare and fuse fiber ends to achieve absolute structural integrity and minimal optical reflectance.

Featuring a state-of-the-art High-Precision PAS (Profile Alignment System), the COMWAY C8 delivers remarkably low splice losses (typically 0.02dB for single-mode fibers). Designed for ultimate field durability, its ultra-rugged shell is drop-resistant, dustproof, and waterproof. Complete your advanced telecom fiber tool kits at Super Flash General Trading LLC by pairing this splicer with high-quality field consumables, such as the COMWAY CE-03 Replacement Electrodes, or upgrade to the heavy-duty COMWAY C9 Fusion Splicer for high-density backbone network deployments.

---

Key Features & Technical Capabilities

1. Integrated Fiber Endface Melter (Patented 2-in-1 Design)

The C8 goes beyond standard splicing by embedding a patented Fiber Endface Melter. This built-in module allows installers to smooth out imperfections on the fiber endface before fusion. Correcting micro-cracks and surface irregularities prior to splicing drastically limits back-reflection, producing high-return-loss connections that standard stripping and cleaving processes alone cannot match.

2. High-Precision Profile Alignment System (PAS)

By leveraging advanced image-processing algorithms and high-speed core-tracking tech, the COMWAY C8 accurately detects fiber types and aligns the cores of Single-Mode (SM), Multi-Mode (MM), Dispersion-Shifted (DS), Non-Zero Dispersion-Shifted (NZ/NZDS), and Bend-Insensitive (BI) fibers. This high-precision system guarantees repeatable, low-loss splices under diverse environmental conditions.

3. Lightning-Fast 6-Second Splicing & 12-Second Heating

Engineered for high-volume deployments, the COMWAY C8 slashes project timelines with its 6-second splicing time (under the [SM Fast] program) and a highly efficient, power-saving 12-second heating cycle. The auto-start thermal shrink oven activates immediately upon closing the heater lid, shaving off critical seconds during high-fiber-count splicing jobs.

4. Smart Real-Time ARC Control

Atmospheric changes like humidity, temperature, and elevation can directly impact arc discharge performance. The C8 is armed with COMWAY’s intelligent Smart ARC Control system, which automatically calibrates the discharge intensity dynamically based on real-time sensors. From sea-level utility rooms to mountain altitudes reaching 5,000 meters, your splices will retain absolute consistency.

5. Extended Battery Life & Durable Electrodes

Equipped with a removable, high-capacity 5,600mAh Lithium-ion battery, the COMWAY C8 is rated to deliver over 250 complete cycles of splicing and heating on a single charge. The intelligent electrode system uses premium COMWAY CE-02 electrodes, engineered to achieve up to 5,000 stable arc discharges, complete with automatic countdown prompts when replacement is recommended.

---

Technical Specifications

Feature / Parameter	COMWAY C8 Specifications
Alignment Technology	High-Precision PAS (Profile Alignment System) Alignment
Compatible Fibers	SM (G.652), MM (G.651), DS (G.653), NZ/NZDS (G.655), BI (G.657)
Splice Loss (Typical)	SM: 0.02dB | MM: 0.01dB | DS: 0.04dB | NZ/NZDS: 0.04dB | BI: 0.02dB
Splicing Cycle Time	6 seconds [SM Fast] / 10 seconds [SM G.652] typical
Heater Cycle Time	Adjustable; 12 seconds typical (designed for slim sleeves)
Return Loss	>>60dB
Battery Module	5,600mAh detachable Li-ion battery (Over 250 splice/heat cycles)
Electrode Lifespan	~5,000 Arc Discharges
Display & Optics	4.1-inch high-brightness color screen; 300x (X/Y single axis), 200x (X&Y dual)
Internal Storage	Saves up to 800 splice images / 20,000 comprehensive splice logs
Environmental Tolerance	Altitude: 0–5000m, Temp: -10°C to +50°C, Humidity: 0–95%, Wind: ≤15m/s
Weight & Dimensions	D156 × W135 × H149 (mm) | 2.0kg (without battery), 2.5kg (with battery)

---

What's Included in the Box?

The COMWAY C8 Fusion Splicer Kit is supplied in a robust, site-ready hard-shell transport case with the following components:

• COMWAY C8 Fusion Splicer (Main Body with Integrated Endface Melter)
• High-Precision CC-01 Fiber Cleaver
• 5,600mAh High-Capacity Battery Pack (BAT-02)
• AC Adapter (ADC-01) and AC Power Cable (ACC-01)
• DC Adapter Charger Cable (DCC-01)
• Pair of Spare Replacement Electrodes (CE-02)
• Drop Cable Stripper & Buffer Tube Stripper (CS-01)
• USB Data Interface Cable (USBC-02)
• Durable Splicer Cooling Tray
• Heavy-Duty Carrying Case (CP-01)
• Hand Strap, Shoulder Carrying Strap & Quick Reference Manual

---

Frequently Asked Questions (FAQ)

How does the PAS alignment on the COMWAY C8 compare to core-to-core alignment?

While premium 6-motor core alignment systems physically align the cores of the fiber using independent motors, Profile Alignment System (PAS) technology relies on advanced optical imaging to recognize core patterns and automatically adjust the position. This makes the COMWAY C8 an exceptional, cost-effective workhorse for FTTx and local access loops where high precision is required without the premium cost of an ultra-long-haul core-alignment system.

Is the COMWAY C8 suitable for high-altitude fiber splicing?

Yes. Equipped with automated air-pressure sensors and Smart ARC Control, the COMWAY C8 calibrates its fusion arc power dynamically to offset changes in air density. It operates efficiently up to 5,000 meters above sea level.

Can I order replacement electrodes and blades for this model in the UAE?

Absolutely! Super Flash General Trading LLC is a premier supplier of fiber optic equipment and accessories in Dubai. We stock authentic COMWAY spare electrodes, replacement cleaver blades, and supplementary high-capacity batteries to keep your field crews operating without downtime.

What makes the endface melter function so valuable?

Traditional cleavers can occasionally leave microscopic cracks, lips, or angled defects. The C8’s patented endface melter gently rounds out and polishes the endface via controlled heat prior to splicing. This minimizes splice-loss deviations, ensures a smoother physical contact surface, and drastically boosts the overall return loss of your network infrastructure.
