LC/UPC to SC/APC Single Mode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 17.00
100% satisfaction guaranteed with every order!

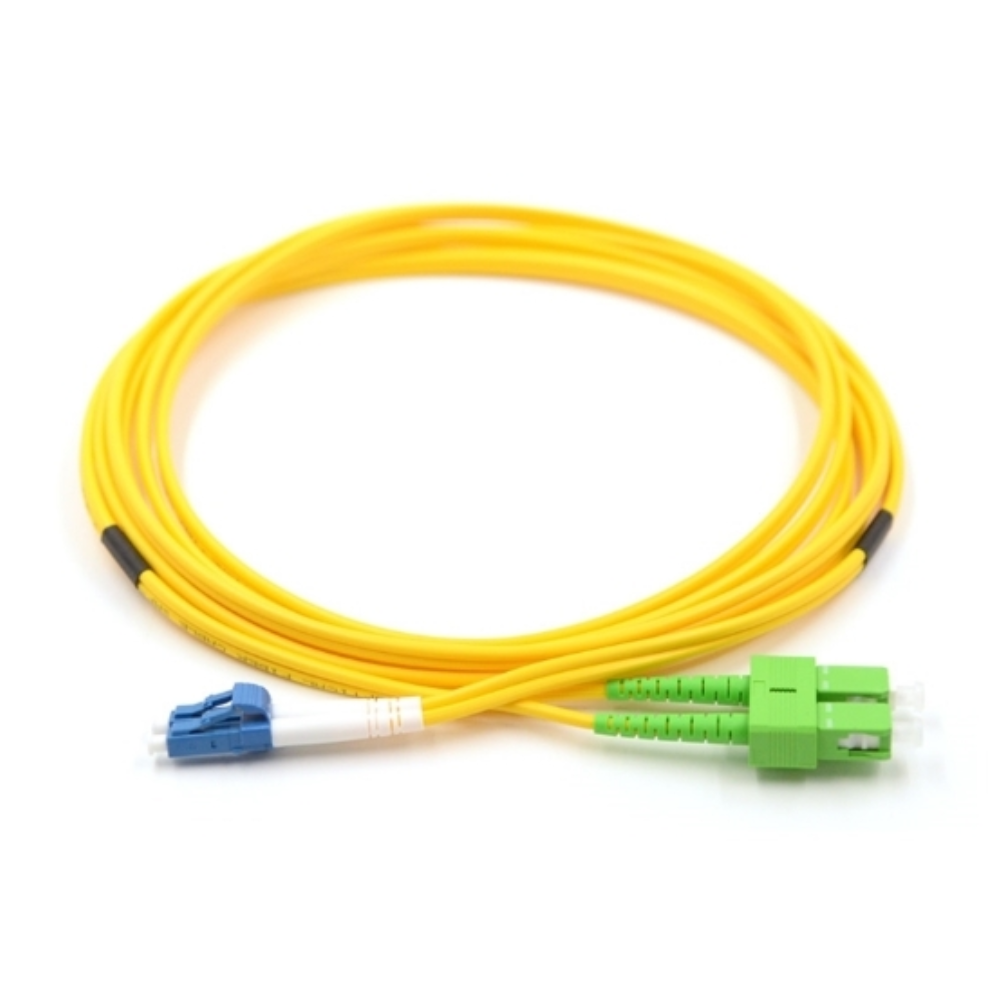

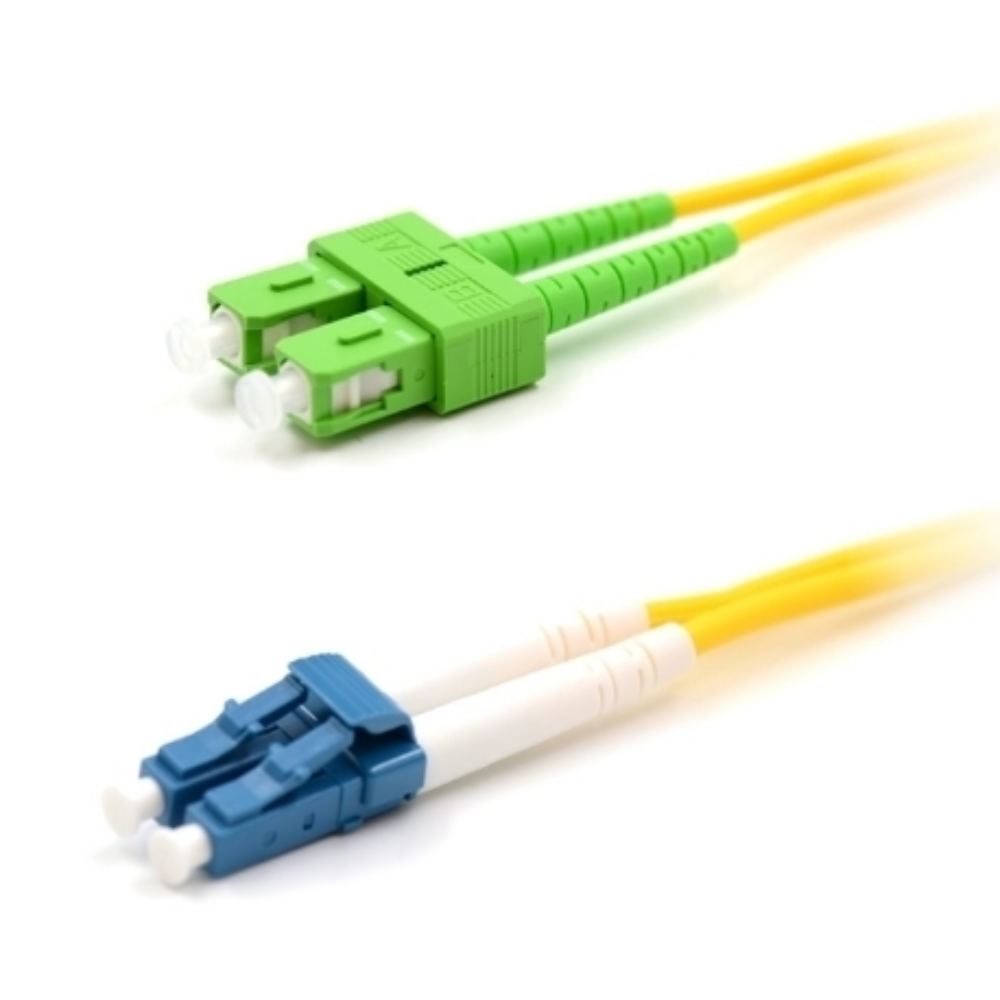

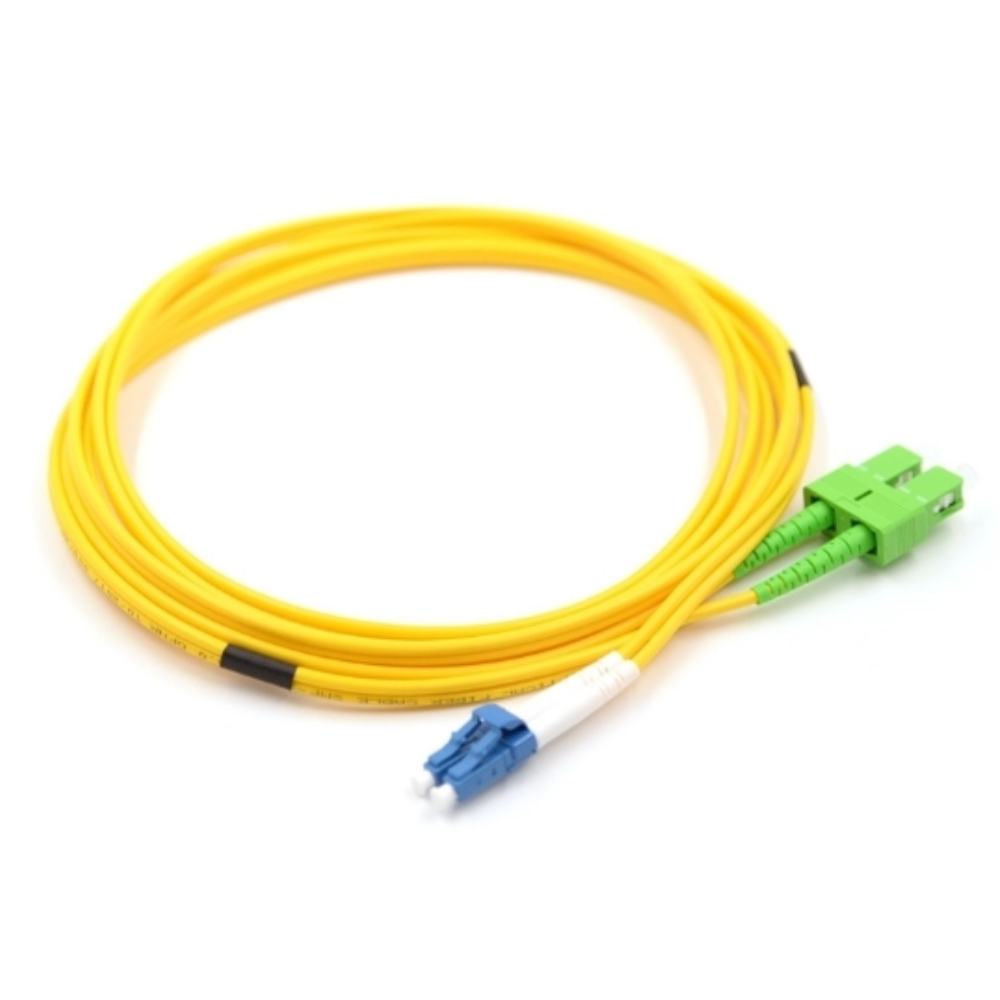

Optimize your network's return loss metrics and bridge cross-connect equipment seamlessly with the professional LC/UPC to SC/APC Single Mode Duplex Fiber Patch Cord. Featuring a specialized hybrid termination design, this patch cord mates a compact, space-saving LC/UPC connector (blue housing) on one end with an angled physical contact SC/APC connector (green housing) on the other. This unique configuration is engineered specifically for connections requiring high signal purity, such as fiber-to-the-home (FTTH) distribution boxes, passive optical networks (PON), and sensitive laser transceivers.
Built using premium 9/125μm single-mode optical fiber, this duplex jumper supports extended long-distance transmission windows with minimal attenuation and maximum bandwidth capacity. The LC end features a precise Ultra Physical Contact (UPC) polish, while the SC end is polished at an 8-degree angle (APC). This specialized angled polish deflects stray back-reflections into the glass cladding rather than bouncing them back toward the light source, delivering an exceptional return loss rating of ≥ 60 dB and an insertion loss of ≤ 0.3 dB. The robust outer jacket protects the internal glass strands against mechanical stress while retaining the flexibility needed for clean rack organization.
To accommodate diverse spatial layouts across your enterprise or data center architecture, this cable is supplied in a comprehensive range of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Every assembly undergoes rigorous factory testing to ensure immediate plug-and-play reliability upon deployment.
Key Specifications & Features
- Connector Type: LC/UPC (Blue) to SC/APC (Green) Hybrid Duplex configuration
- Fiber Type: Single Mode 9/125μm (OS2 / G.652D compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: UPC ≥ 50 dB, APC ≥ 60 dB
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What is the advantage of an APC polish on the SC connector?
The 8-degree angled APC polish minimizes back reflections by reflecting light into the cladding, providing superior return loss performance critical for high-speed laser applications.
2. Can I connect an UPC connector directly to an APC port?
No, mixing UPC and APC connectors causes high insertion loss and can permanently damage the polished end-faces due to mismatched physical contact angles.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable compatible with single-mode networks?
Yes, it is designed for 9/125μm single-mode optical networks, delivering high bandwidth and low signal degradation over long distances.
