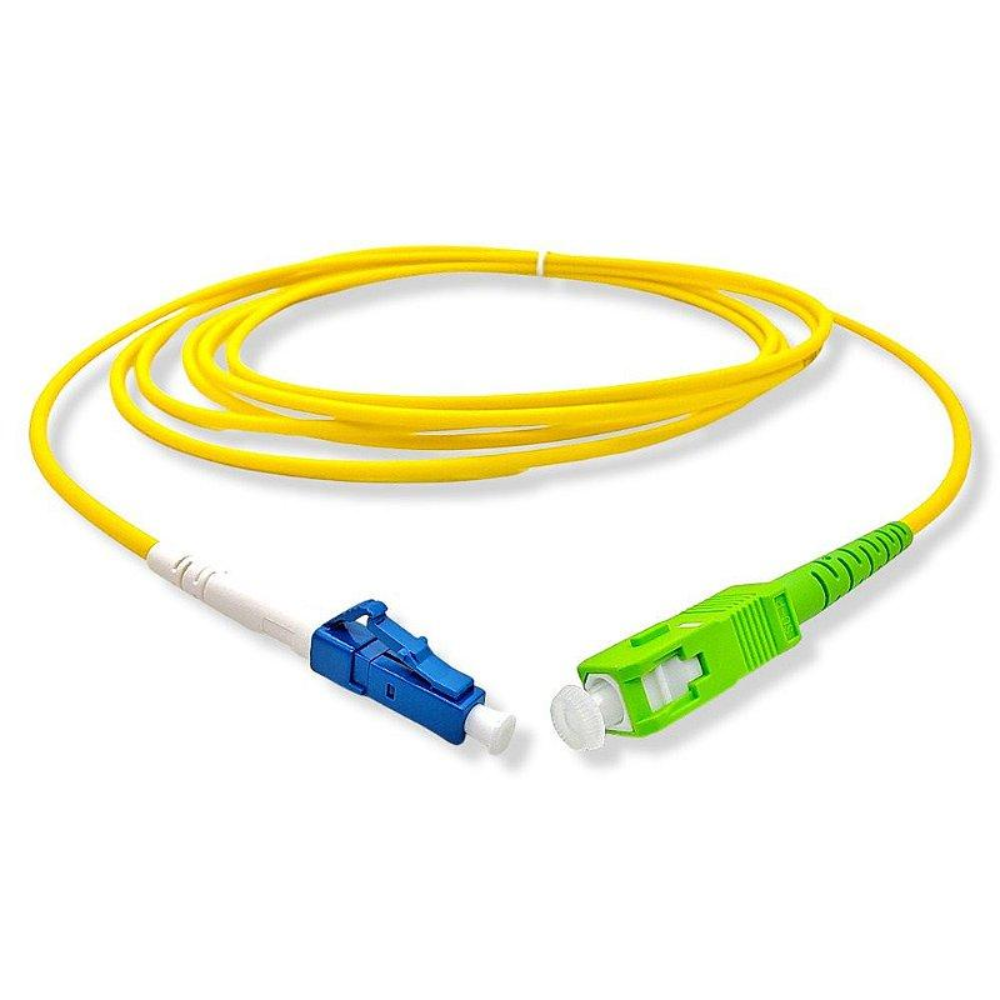

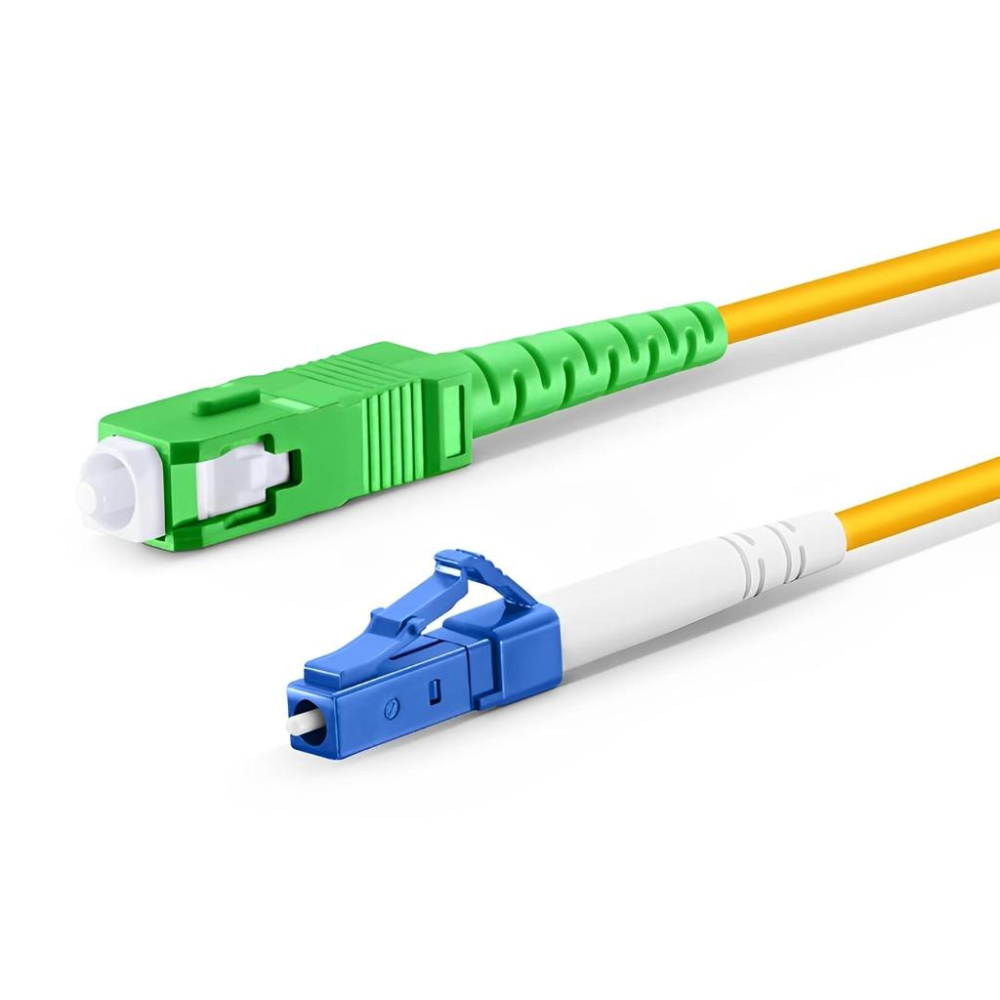

SC/APC to LC/UPC Single Mode Simplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 15.00
100% satisfaction guaranteed with every order!
Upgrade your network infrastructure with the reliable and high-performance SC/APC to LC/UPC Single Mode Simplex Fiber Patch Cord. Designed for precision data transmission, telecommunication networks, data centers, and industrial fiber optic applications, this hybrid patch cable ensures minimal signal attenuation and maximum bandwidth capabilities. Whether you are setting up enterprise local area networks (LAN), wide area networks (WAN), or connecting active cross-connect equipment with mixed ports, our fiber jumpers deliver exceptional optical performance you can count on.
Engineered with premium 9/125μm single-mode fiber, this simplex cable supports long-distance data transmission with superior return loss and low insertion loss characteristics. The connectors feature high-precision ceramic ferrules combining an Angled Physical Contact (APC) polish on the SC end to minimize back reflections and an Ultra Physical Contact (UPC) polish on the LC end, ensuring optimal physical contact and light transfer across the connection core. The durable outer jacket provides excellent protection against tension, mechanical stress, and environmental wear while maintaining flexibility for neat and efficient cable management in tight rack spaces.
To accommodate diverse installation requirements across various server rooms and telecom setups, this product is available in a comprehensive range of lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each cable is rigorously tested and inspected to meet industry standards, guaranteeing plug-and-play reliability right out of the box.
Key Specifications & Features
- Connector Type: SC/APC to LC/UPC (Simplex Hybrid)
- Fiber Type: Single Mode 9/125μm (G.652D / G.657A1 compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 60 dB (APC end), ≥ 50 dB (UPC end)
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom configurations, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What makes this a hybrid fiber patch cord?
This patch cord features two different connector types—an SC/APC connector on one end and an LC/UPC connector on the other—allowing seamless connection between different port interfaces in networking equipment.
2. Why does the SC side use an APC polish while the LC side uses UPC?
The APC (Angled Physical Contact) polish on the SC end provides extremely high return loss (low back reflection), which is ideal for FTTx and RF video applications, while the UPC polish on the LC end provides standard high-density connection performance for active gear.
3. What available lengths can I choose from for this patch cord?
We supply this cable in multiple standardized lengths to fit your exact installation layout: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable suitable for outdoor outdoor deployments?
This standard simplex patch cord is designed for indoor data center, server room, and telecommunications wiring closet applications. For external deployments, please refer to our weatherproof outdoor patch cable options.
