SC/UPC to SC/APC Single Mode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 17.00
100% satisfaction guaranteed with every order!

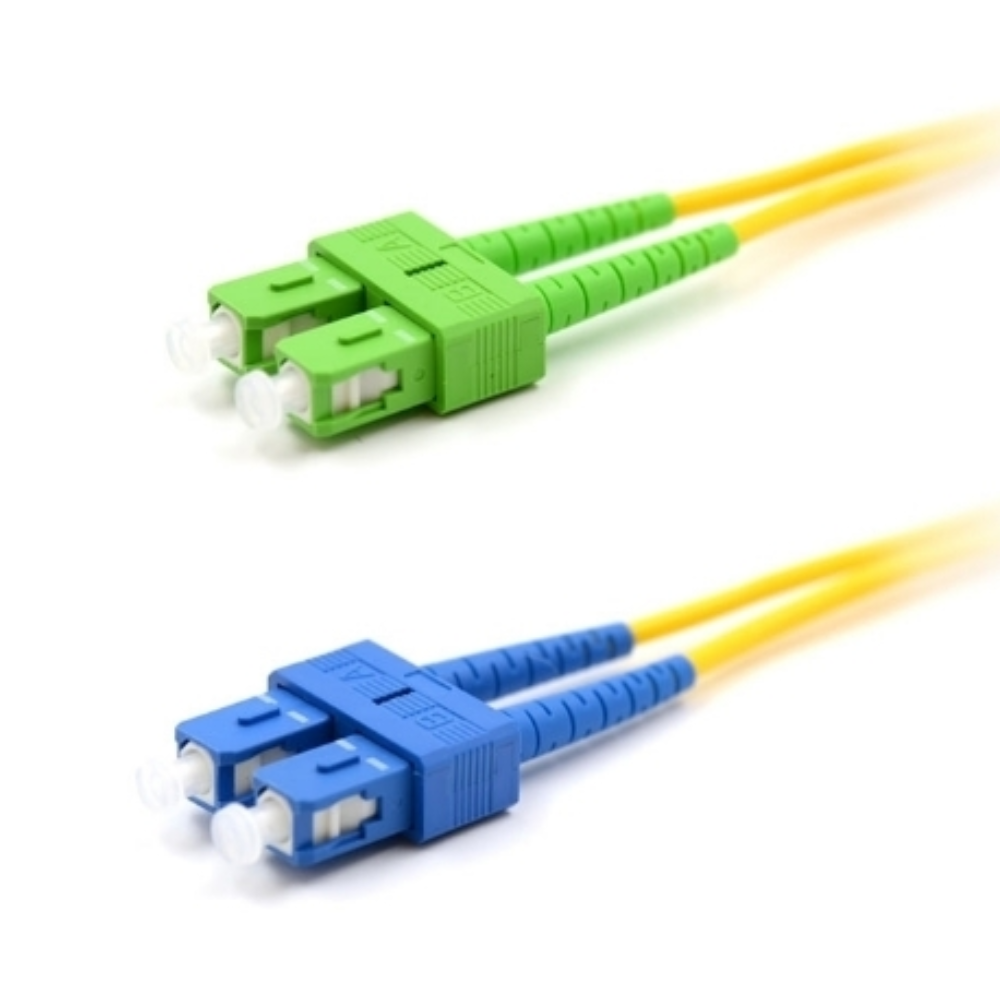

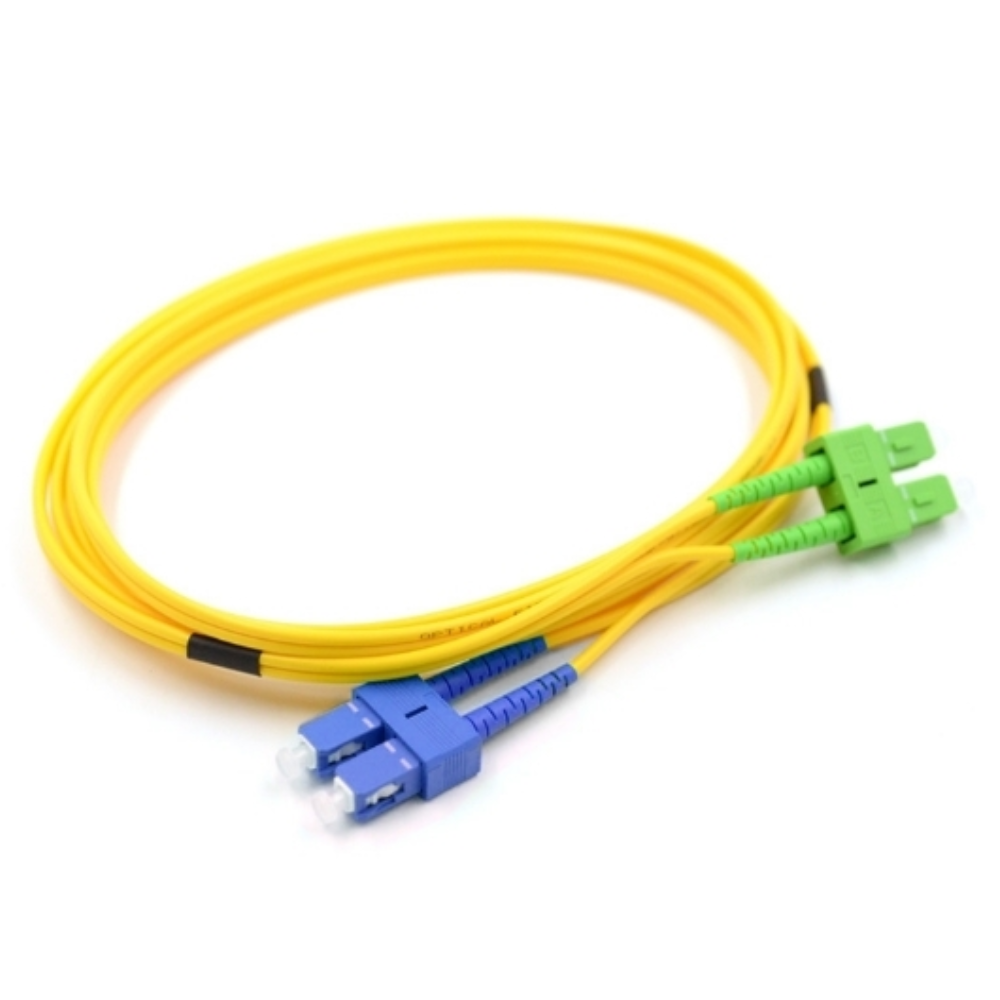

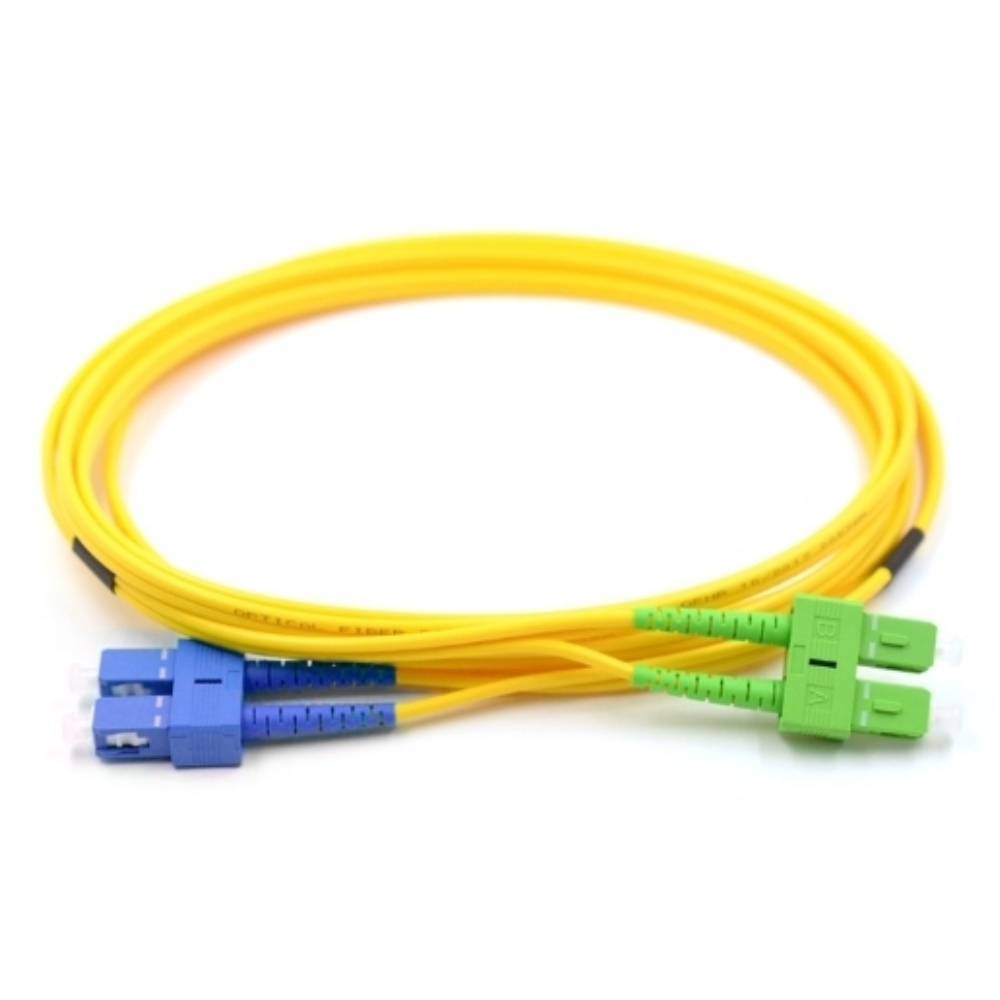

Bridge optical networking devices and passive distribution components with exceptional signal purity using the professional SC/UPC to SC/APC Single Mode Duplex Fiber Patch Cord. Designed for specialized infrastructure applications, this hybrid patch cord mates a push-pull square SC/UPC connector (blue housing) on one end with an angled physical contact SC/APC connector (green housing) on the other. This unique configuration is engineered specifically to prevent back-reflections in high-speed optical links, making it an essential component for fiber-to-the-home (FTTH) networks, cable television (CATV) systems, and sensitive laser transceivers.
Constructed from premium 9/125μm single-mode optical fiber, this duplex jumper delivers reliable, bi-directional data transmission over extended distances with minimal attenuation. The SC/UPC end features a standard flat Ultra Physical Contact polish, while the SC/APC end is precision-polished at an 8-degree angle. This angled finish reflects stray light into the protective glass cladding rather than bouncing it back toward the laser source, achieving an outstanding return loss rating of ≥ 60 dB and an insertion loss of ≤ 0.3 dB. The durable outer jacket protects internal fibers against mechanical strain while maintaining the flexibility necessary for organized cabinet routing.

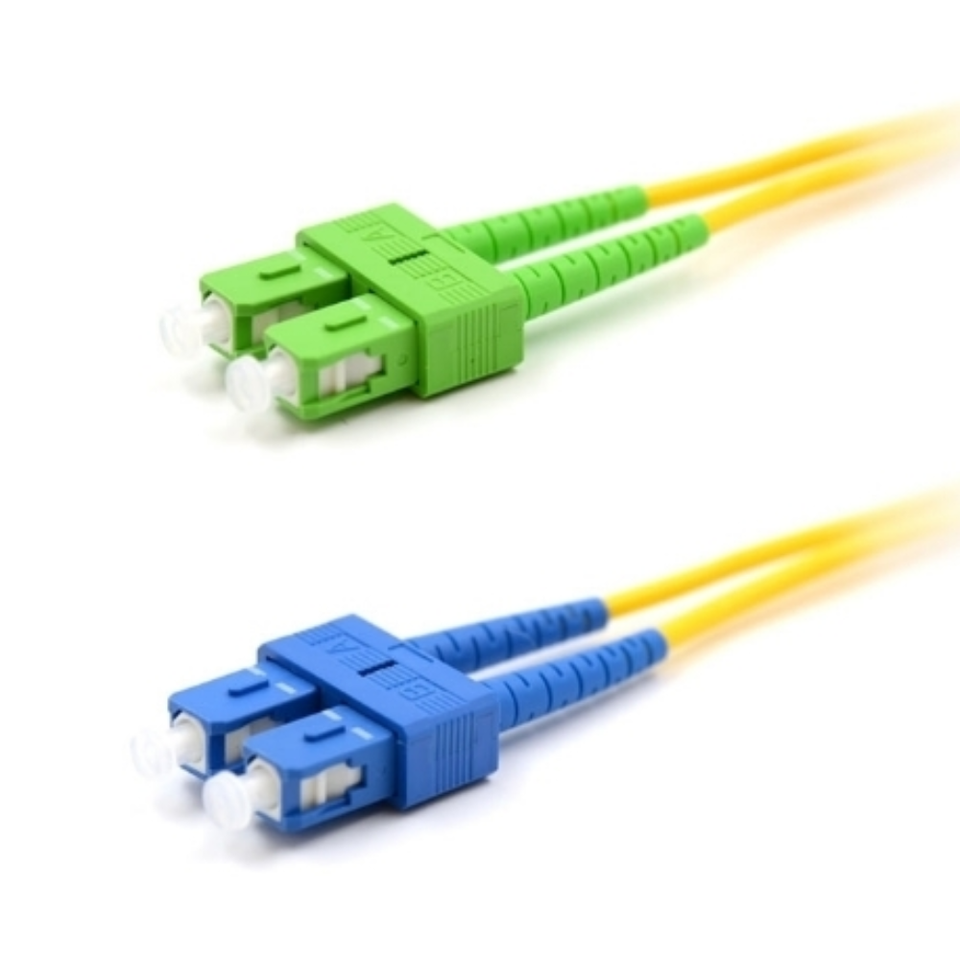

To accommodate diverse spatial requirements across your data center or enterprise layout, this cable is available in a comprehensive range of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each unit undergoes strict optical testing to guarantee immediate plug-and-play reliability upon deployment.
Key Specifications & Features
- Connector Type: SC/UPC (Blue) to SC/APC (Green) Hybrid Duplex configuration
- Fiber Type: Single Mode 9/125μm (OS2 / G.652D compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: UPC ≥ 50 dB, APC ≥ 60 dB
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What is the purpose of a hybrid SC/UPC to SC/APC patch cord?
It is used to bridge equipment with standard UPC ports to infrastructure components requiring APC angled connections, preventing back-reflection issues in sensitive setups.
2. How do I distinguish between the UPC and APC ends?
The UPC end features a blue connector housing with a flat polish, while the APC end features a green housing with an 8-degree angled polish.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable compatible with single-mode networks?
Yes, it is designed for 9/125μm single-mode optical networks, delivering high bandwidth and low signal degradation over long distances.
