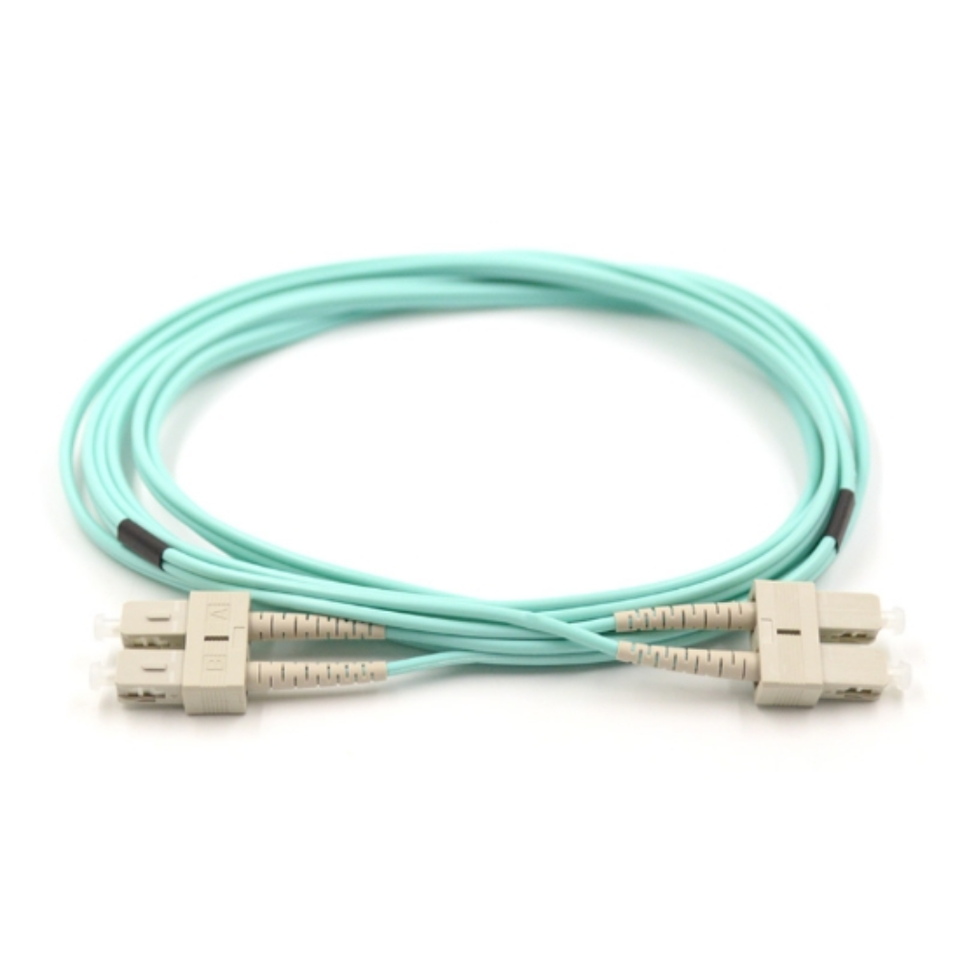

SC/UPC to SC/UPC OM4 Multimode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 20.00
100% satisfaction guaranteed with every order!
Upgrade your high-speed enterprise backbone and optical distribution networks using the professional SC/UPC to SC/UPC OM4 Multimode Duplex Fiber Patch Cord. Engineered for superior modal bandwidth and maximum throughput over extended reach distances, this premium patch cable features reliable, snap-in SC/UPC duplex connectors on both ends. Distinguished by an eye-catching Erika violet (magenta) outer jacket, OM4 cables surpass standard OM3 configurations, making them the preferred standard for high-speed 10G, 40G, and 100G Ethernet applications, data center interconnects, and telecommunication rooms.
Manufactured using high-grade 50/125μm laser-optimized OM4 multimode optical fiber, this duplex jumper provides minimal signal attenuation and exceptional transmission efficiency. Both connector tips are finished with an Ultra Physical Contact (UPC) machine polish to minimize back reflection and maintain a low insertion loss rating of ≤ 0.3 dB. The robust, flame-retardant jacket (PVC/LSZH) protects the delicate internal glass fibers against environmental stress, twisting, and crushing while maintaining the flexibility required for clean cable routing in patch panels and server racks.
To accommodate diverse spatial requirements across your facility, this cable is available in a wide range of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each unit undergoes strict factory testing to ensure total reliability right out of the box.
Key Specifications & Features
- Connector Type: SC/UPC (Snap-in Push-Pull) to SC/UPC Duplex configuration
- Fiber Type: Multimode 50/125μm OM4 (Laser-Optimized)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 30 dB
- Ferrule Material: High-precision Ceramic
- Jacket Color / Material: Erika Violet (Magenta) / PVC or LSZH
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What are the key advantages of OM4 multimode fiber over OM3?
OM4 fiber features a higher effective modal bandwidth compared to OM3, allowing it to support high-speed 10G, 40G, and 100G Ethernet links over extended reach distances with minimal loss.
2. Why is the jacket color Erika violet (magenta)?
Erika violet or magenta is the standardized TIA-568 color designation for OM4 laser-optimized multimode cables, allowing technicians to easily differentiate them from aqua OM3 or yellow single-mode lines.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. How do SC connectors latch into network ports?
SC connectors use a push-pull latching mechanism with a square molded plastic housing, making them quick to insert and secure in patch panels and transceivers.
