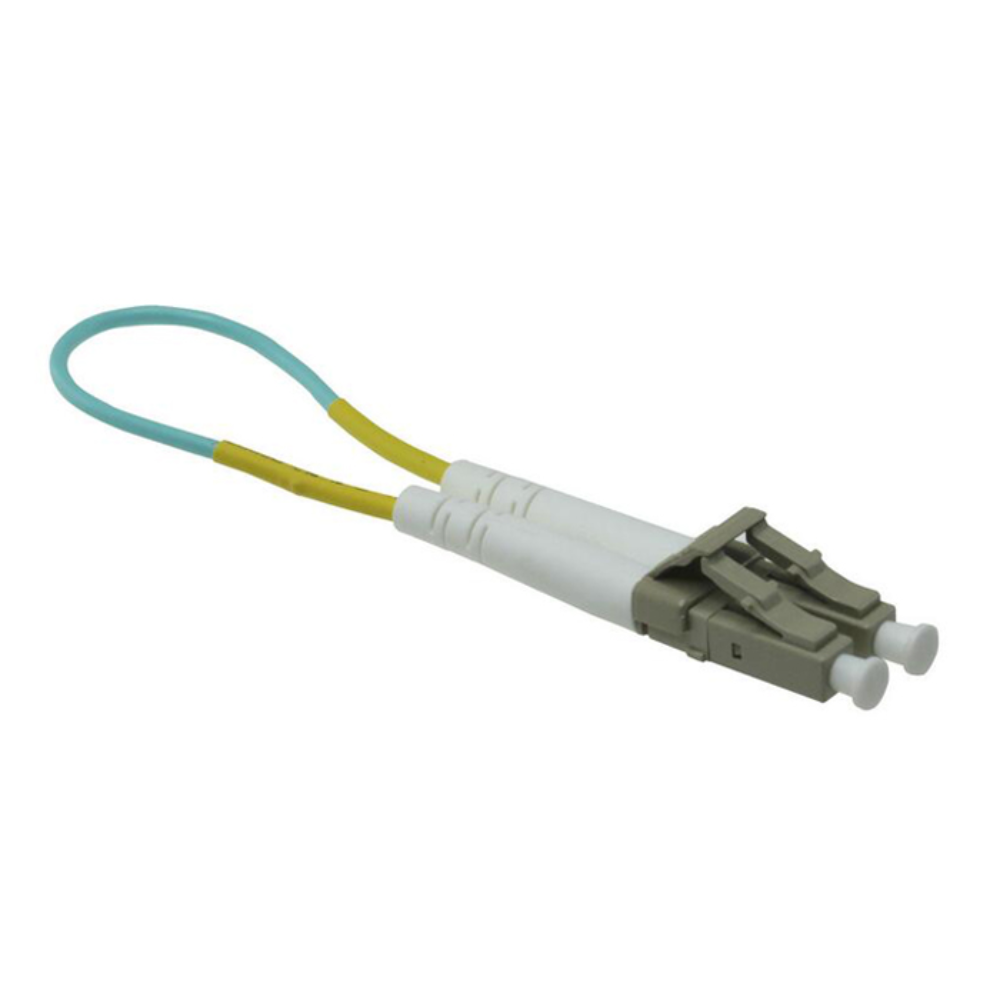

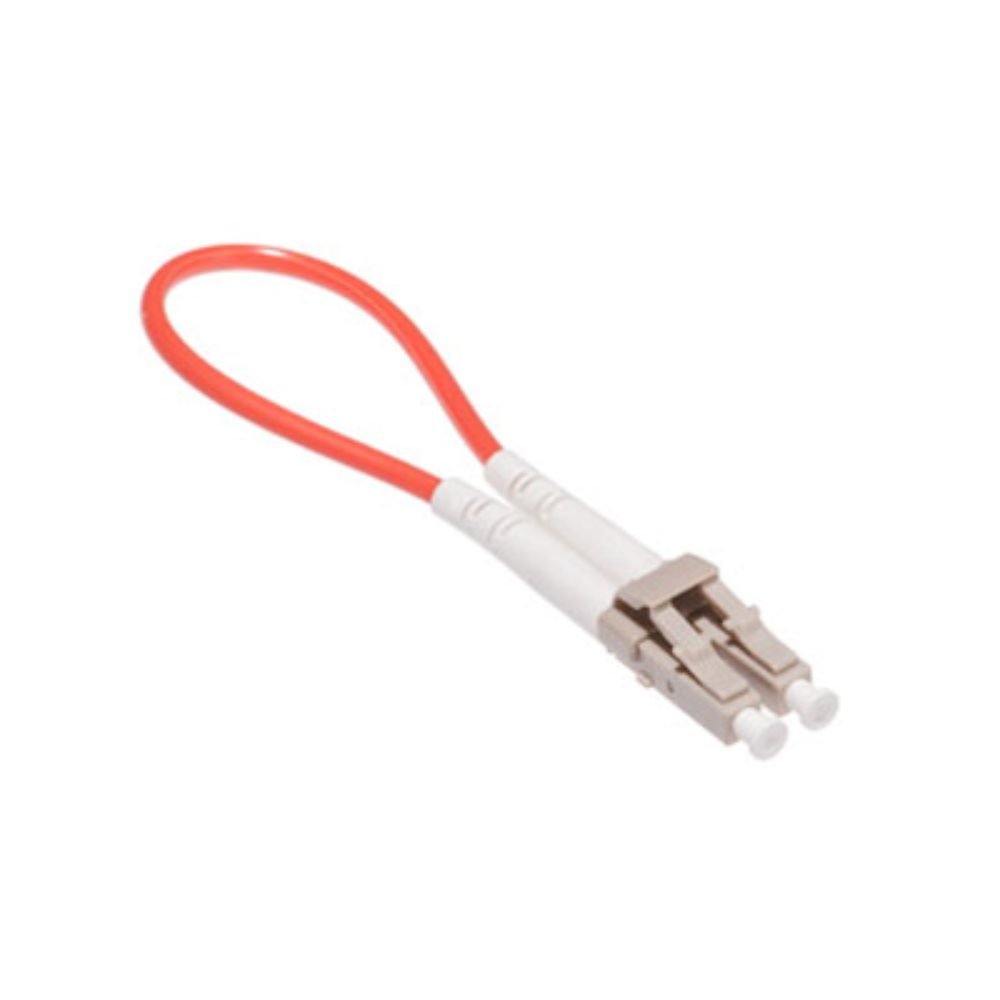

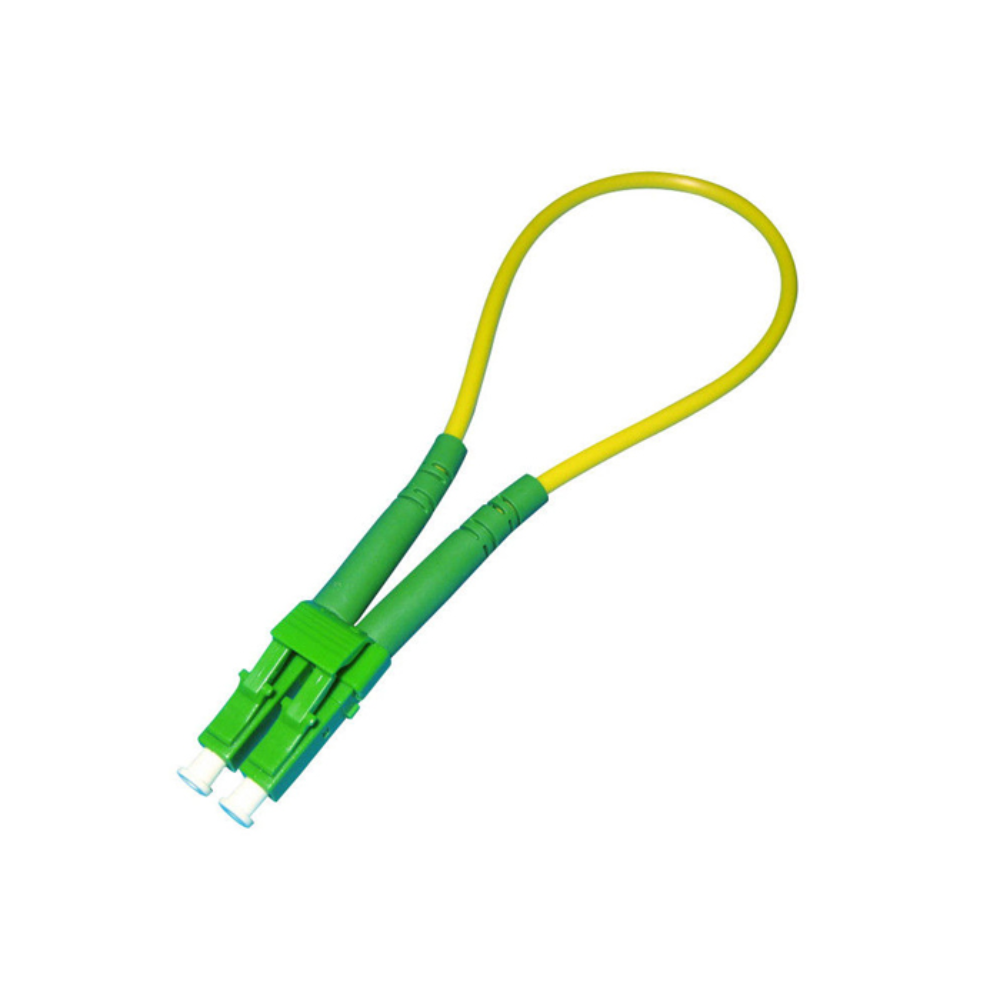

LC Fiber Optic Loopback Cable
SUPER FLASH
Regular price
Dhs. 0.00
100% satisfaction guaranteed with every order!
Validating optical network equipment, testing transceiver modules, and executing rigorous diagnostic routines require absolute reliability and signal precision. The LC Fiber Optic Loopback Cable is a specialized testing component designed to route optical signals directly from the transmitter port back to the receiver port within laboratory benches, switch manufacturing facilities, and enterprise data center test environments. Built with a compact duplex LC footprint and a high-purity internal fiber jumper, this loopback cable provides a stable and repeatable testing pathway for high-density SFP and SFP+ transceiver modules.
Essential for telecommunications engineers, system integrators, and equipment burn-in technicians, this professional-grade diagnostic plug ensures accurate signal verification, protocol stress testing, and routine maintenance audits across high-speed optical infrastructure arrays.
Compact Duplex Architecture and High-Density Compatibility
Modern data center switches and routers often feature high-density transceiver ports where physical space is extremely limited. The LC interface utilizes a small-form-factor (SFF) design featuring a 1.25mm ceramic ferrule, which is half the physical footprint of traditional SC connectors. This compact engineering allows multiple loopback cables to be plugged into adjacent SFP, SFP+, or XFP ports simultaneously without crowding or mechanical interference.
The connector shell features a secure latch-clip retention mechanism that locks firmly into the transceiver bay, preventing accidental pull-outs during automated testing cycles while allowing quick, tool-free release when testing concludes. The internal fiber loop is safely housed inside a flexible, flame-retardant outer jacket that protects the glass core from sharp bends and operational stress. For technicians and network contractors requiring professional fusion splicing tools, optical power meters, or component distribution racks to support testing benches, explore our full hardware catalog in the fiber optic cables catalog.
High-Purity Optical Glass and Ultra Physical Contact (UPC) Polishing
At the mechanical center of this loopback assembly are premium singlemode OS2 (9/125µm) or multimode (OM3/OM4 50/125µm) optical glass strands. Engineered to meet rigorous telecommunication standards, the internal loop provides low insertion loss and stable attenuation across standard operating wavelengths (1310nm/1550nm for singlemode, 850nm/1300nm for multimode). This precise length control prevents optical power overload on sensitive receiver diodes during continuous loopback testing.
Every terminal end-face undergoes a rigorous Ultra Physical Contact (UPC) geometric polishing process, eliminating microscopic surface imperfections to achieve smooth, domed ferrule tips. This maximizes direct glass-to-glass contact, resulting in consistently low insertion loss (typical ≤ 0.25dB) and high return loss metrics (≥ 50dB for singlemode). For engineering teams expanding their testing infrastructure or managing complex distribution networks, review our advanced optical management frameworks.
Key Technical Specifications
| Component Type | LC Fiber Optic Diagnostic Loopback Cable |
| Connector Interface | Duplex LC/UPC Small-Form-Factor (SFF) |
| Fiber Core Specifications | Singlemode OS2 (9/125µm) or Multimode (OM3/OM4 50/125µm) |
| Insertion Loss Performance | ≤ 0.25dB Typical Across Operating Wavelengths |
| Return Loss Metrics | ≥ 50dB (Singlemode UPC Grade Polish) |
| Retention Mechanism | Secure Latch-Clip Transceiver Locking Design |
| Jacket Material Standard | LSZH (Low Smoke Zero Halogen) or PVC Diagnostic Jacket |
| Operating Temperature Range | -20°C to +75°C |
Diagnostic Handling and Best Practices
- Inspect and Clean End-Faces Regularly: Dust accumulation on the ceramic ferrule can significantly increase insertion loss and distort test results. Always clean the LC connector tips with a mechanical click-cleaner before plugging them into transceiver ports.
- Match Fiber Core Types Accurately: Ensure you deploy the correct fiber type (singlemode OS2 vs multimode OM3/OM4) matching your transceivers to prevent high attenuation caused by core-diameter mismatches.
- Handle by the Connector Body: Always insert and remove the LC loopback by grasping the outer plastic housing or boot, avoiding any pulling tension directly on the flexible fiber loop.
Related Fiber Optic Assets & Collections
To scale out your full architectural network setup or cross-compare with other high-precision termination variants, please explore our alternative setups and hardware solutions below:
- Explore FC Fiber Optic Loopback Cable Specifications
- View LC/UPC to LC/UPC Multimode OM3 Duplex Patch Cables
- Check SC/APC to SC/APC Single-Mode Duplex Patch Cords
- Shop FC/APC to SC/UPC Single-Mode Simplex Patch Cables
Frequently Asked Questions (FAQ)
Q: What is the main purpose of an LC fiber optic loopback cable?
A: An LC loopback cable provides a return optical path from a transmitter back to a receiver port, widely used in laboratory testing, equipment burn-in procedures, and network diagnostic checks for SFP and SFP+ transceivers.
Q: Why is the LC connector preferred for high-density switch testing?
A: The LC connector features a small-form-factor (SFF) 1.25mm ferrule design, taking up half the space of standard connectors. This allows multiple loopbacks to be tested side-by-side in high-density switch ports without crowding.
Q: Can I use a singlemode LC loopback cable on multimode testing ports?
A: No, matching the fiber core type is critical. Using a singlemode OS2 loopback on multimode equipment creates core size mismatches, leading to high insertion loss and inaccurate test results.
