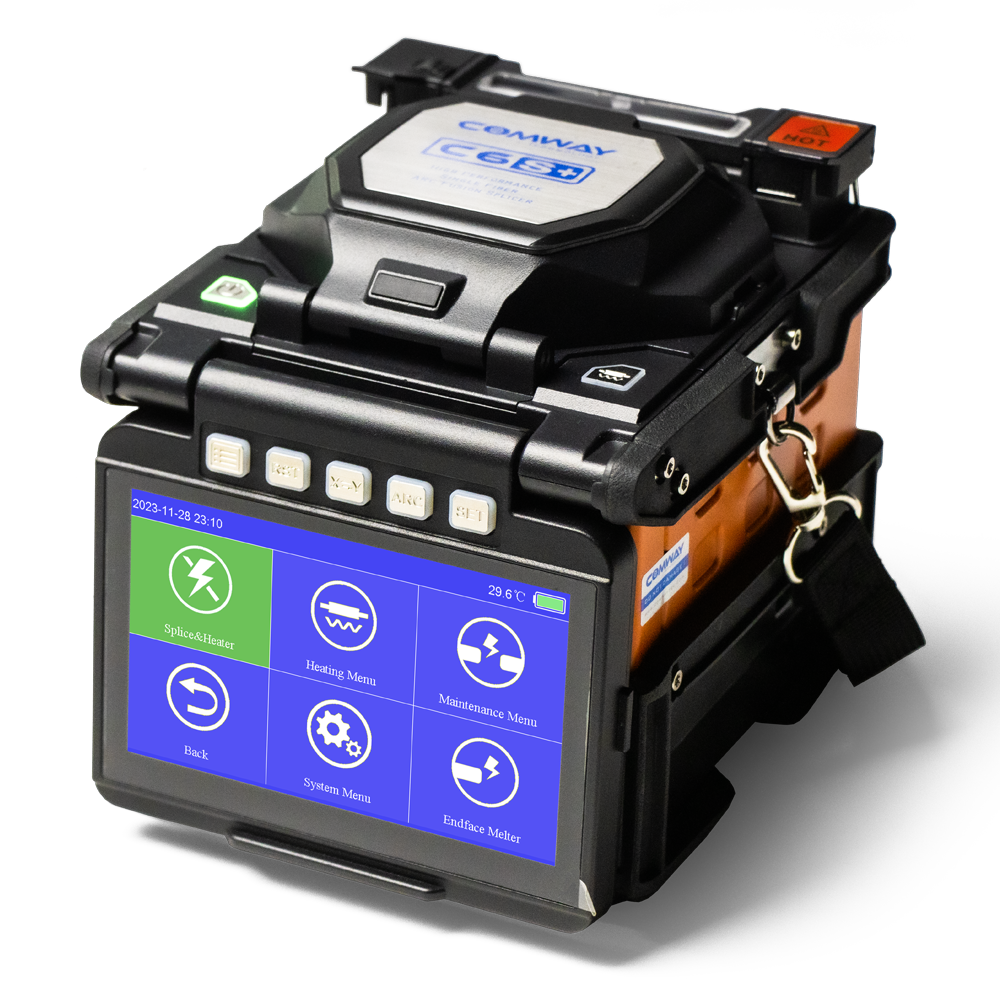

Introduction to the Comway C6S+ Fusion Splicer
The Comway C6S+ Fusion Splicer represents the next generation of professional fiber optic installation equipment. Engineered for high-speed, high-precision core-to-core alignment, the C6S+ is built to handle the most demanding FTTx, trunk, and metropolitan fiber optic installations. With an upgraded processing engine and state-of-the-art Profile Alignment System (PAS) technology, this robust fusion splicer delivers ultra-low splice loss and exceptional efficiency in any field condition.
In modern optical telecommunications, precision and speed dictate project success. The Comway C6S+ is carefully crafted to address these priorities, ensuring that network technicians can operate quickly without compromising splice quality. Whether you are scaling up residential fiber broadband infrastructure or performing critical optical backbone repairs, the C6S+ is a vital addition to your hardware lineup. For similar high-end solutions, consider exploring our Comway C10S V2 Fusion Splicer to find the ideal match for your operational scale.
Key Performance Features of the Comway C6S+
Equipped with state-of-the-art core detection systems, the Comway C6S+ boasts features designed to streamline field operations and offer maximum longevity under challenging environments:
- High-Speed PAS Core Alignment: Employs a highly accurate Profile Alignment System (PAS) to guarantee precise, core-to-core alignment, resulting in consistent single-mode and multi-mode fiber connection integrity.
- Rapid Splicing & Heating Cycles: Drastically cuts down setup and execution times with lightning-fast splicing cycles, combined with customizable thermal shrink heating profiles.
- Long-Lasting Battery Life: Powered by a high-capacity lithium-ion battery, enabling crews to work all day in remote locations without constantly needing a power source.
- Rugged, Field-Ready Architecture: Engineered to withstand dust, water droplets, and physical drops, protecting sensitive internal optoelectronics from rough job-site conditions.
- Generous Internal Storage: Effortlessly logs up to tens of thousands of splice data results to aid quality assurance auditing and post-installation reviews.
To achieve the ultimate clean cut before alignment, we highly recommend pairing this splicer with an authentic Comway Fiber Cleaver. A precise fiber endface directly translates to a lower decibel loss when performing automated splicing with the C6S+ platform.
Technical Specifications and Data
Below are the technical configurations and capabilities built into the core structure of the Comway C6S+ fusion splicing unit:
| Feature Specification | Operational Metrics / Compatibility |
|---|---|
| Fiber Alignment Technology | High-precision PAS (Profile Alignment System) Core-to-Core Alignment |
| Compatible Fiber Types | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657) |
| Cladding & Coating Diameter | Cladding: 80–150 μm | Coating: 100–1000 μm |
| Typical Splice Loss | SM: 0.02dB | MM: 0.01dB | DS: 0.04dB | NZDS: 0.04dB |
| Splicing & Heating Times | Fast, automated programs optimized for rapid turnaround cycles |
| Operational Battery Capacity | High-capacity rechargeable lithium battery designed for extended multi-cycle performance |
| Data Storage Capacity | Capable of archiving thousands of splice records directly to internal memory |
Field Applications and Best Practices
The Comway C6S+ is remarkably versatile, supporting local access networks, enterprise campuses, and national telecom backbones. For optimal results, optical field technicians should enforce consistent clean-room prep procedures on-site. Stripping cables with premium tools, such as the Comway Ribbon Fiber Stripper, and executing standard cleaning processes prevents microscopic dust contaminants from interrupting the high-precision camera lenses of the PAS alignment mechanism.
Furthermore, standard maintenance, such as electrode cleaning and performing diagnostic test arcs, ensures that the C6S+ remains calibrated to ambient air density and local temperature shifts. Whether you are high up on an aerial strand or down inside an underground utility vault, this fusion splicer adapts automatically to keep your deployments on track.
Frequently Asked Questions (FAQs)
Q1: What makes the Comway C6S+ different from older fusion splicer models?
A1: The C6S+ features an upgraded computing processing core, more refined optical camera sensors, and enhanced battery longevity. This allows for faster core-to-core PAS alignment profiling and more reliable thermal shrink performance.
Q2: Can I download software updates or manual guides for the Comway C6S+?
A2: Yes, official product manuals, datasheets, and firmware downloads can be accessed directly from our dedicated Comway Download Support Portal.
Q3: Does the C6S+ support modern bending-insensitive (BI) fibers?
A3: Yes. The C6S+ is fully compatible with G.657 Bending Insensitive (BI) fibers, making it exceptionally well-suited for high-density FTTH indoor drops where fiber bending is common.
Q4: How do I verify the warranty or serial number registration for my unit?
A4: You can verify your system details, check active registration statuses, and check compliance by entering your system code on the official Comway Serial Number Tool.
