The rapid growth of modern telecom infrastructures and local fiber distributions places immense pressure on field technicians to deliver flawless, ultra-low-loss fiber joins in record time. The COMWAY A3+ Mini Fusion Splicer is engineered to meet these precise demands. Balancing an ultra-compact design with elite-level internal technology, the A3+ is the ultimate workspace companion for Fiber-to-the-Home (FTTH) installers, internet service providers (ISPs), and telecom engineers.

Featuring a high-precision Profile Alignment System (PAS) with a robust 4-motor core-to-core/cladding alignment drive, the COMWAY A3+ manages to keep connection losses to a bare minimum. An ultra-fast splicing run of just 5 seconds (using the SM FAST program) paired with a rapid 15-second shrink-sleeve heater guarantees that field workflows move smoothly and efficiently.

Key Features of the COMWAY A3+ Splicer

• Precision PAS 4-Motor Alignment: Leverages high-precision optical cameras and dynamic core-to-core micro-adjustments in X and Y directions to minimize splice attenuation.
• Rapid Processing Speeds: Boasts an ultra-fast 5-second splicing routine and a standard 15-second heater recovery window.
• Highly Portable & Rugged Form Factor: At just 1.5 kg (1.8 kg including the battery pack), it is remarkably easy to carry during aerial or high-altitude installations.

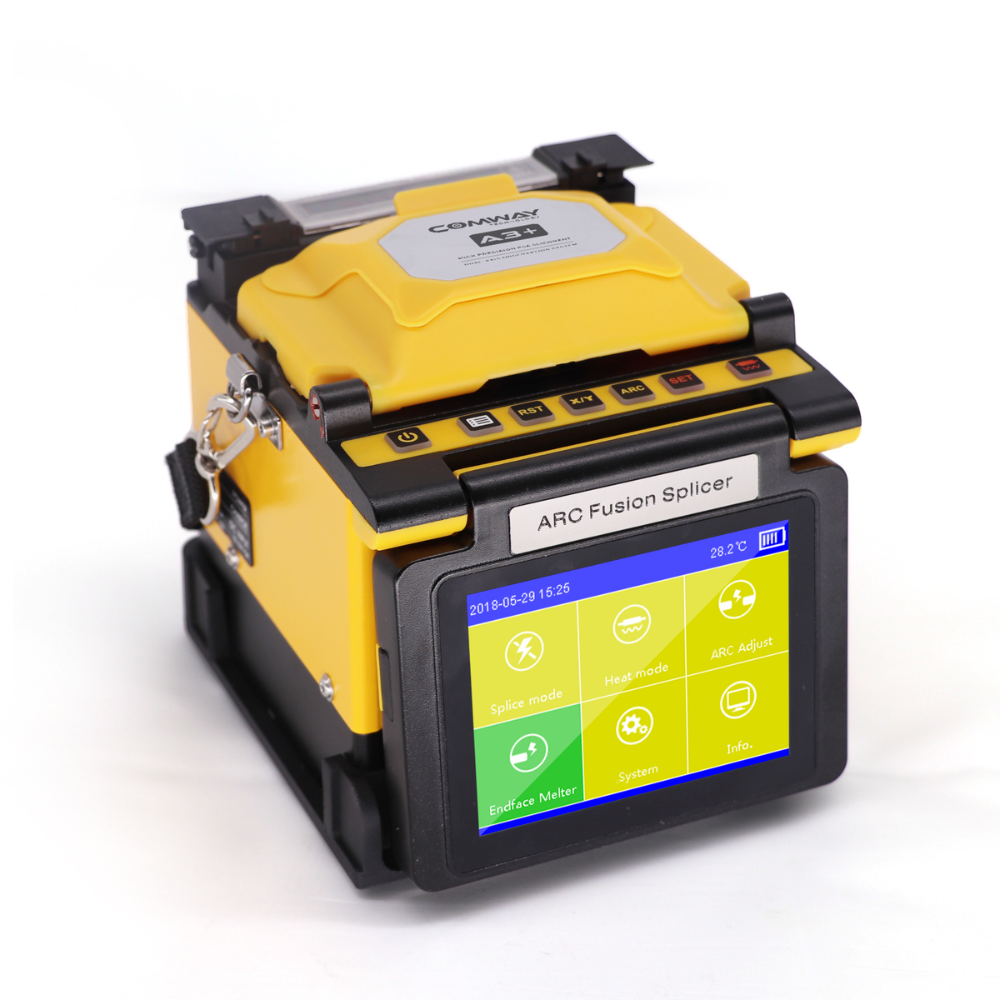

• High-End 4.3-inch Touchscreen Display: Outfitted with an anti-reflective, high-light color touchscreen displaying 400x fiber magnification.
• Durable Environmental Seals: Designed with water, dust, and shock resistance equivalent to an IP52 rating, surviving field-grade drops of up to 1 meter.

Detailed Technical Specifications

Technicians and network planners can evaluate the detailed capabilities of the COMWAY A3+ through the comprehensive engineering specifications table below:

High-Precision PAS Alignment & Loss Reduction

Low-loss connections are critical to maintaining high-speed fiber data links over long spans. The COMWAY A3+ addresses this through its intelligent Profile Alignment System (PAS):

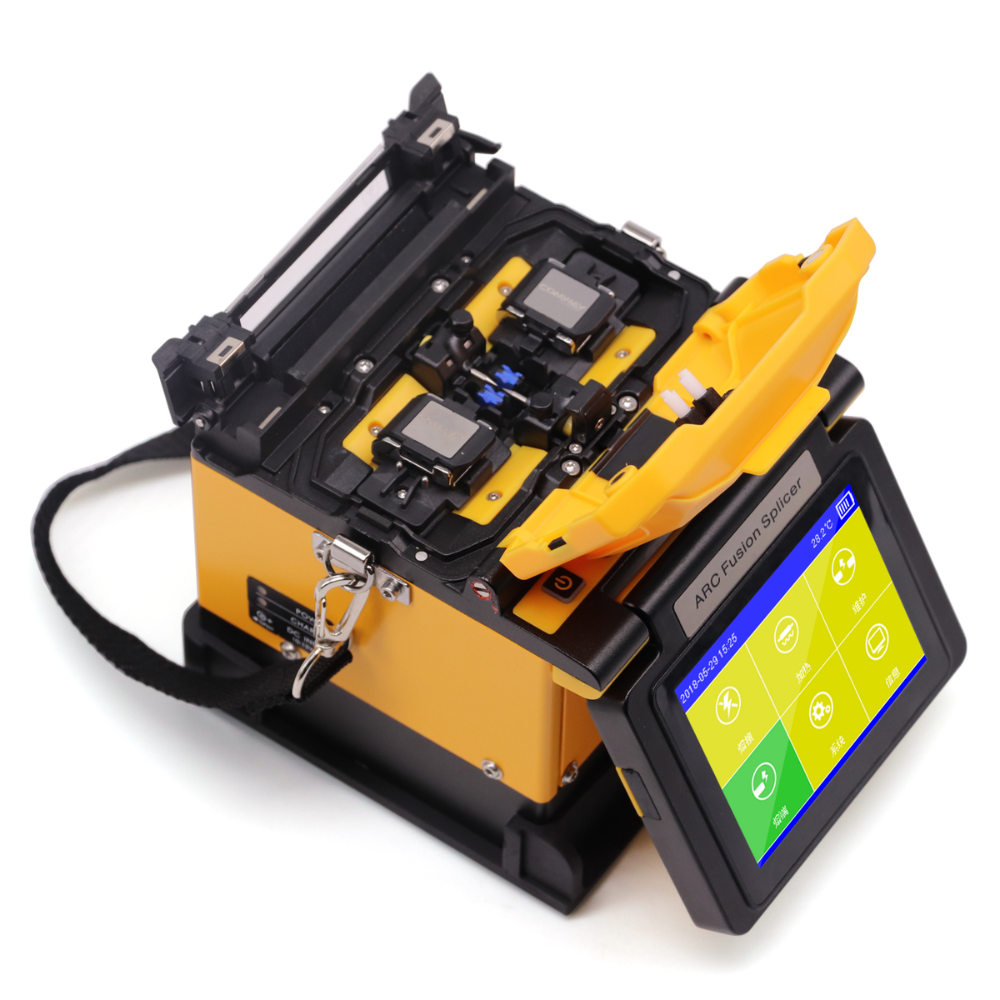

1. Precision Dual Cameras: High-definition cameras capture live, detailed cross-sectional views of the inserted optical fibers.
2. Dynamic 4-Motor Adjustments: The internal motors align the physical cores or cladding zones in both lateral directions (X and Y planes) immediately prior to firing the fusion arc.
3. Smart ARC Control: The machine features automated ARC power calibration. By evaluating the performance of previous arc discharges and sensing environmental changes (altitude, moisture, temperature), it dynamically self-calibrates the fusion discharge in real-time.

Comparing COMWAY's Professional Splicer Range

Choosing the right splicing machine depends on your project scale. If you are handling large-scale trunk lines rather than local FTTH distributions, you can check out COMWAY’s broader portfolio in the comprehensive COMWAY Fusion Splicers & Accessories selection:

• For high-count ribbon network trunks, you will want to deploy the specialized COMWAY Ribbon Fusion Splicer C10R.
• For ultimate-range backbones requiring ultra-precise, long-haul splicing standards, look to the COMWAY Fusion Splicer C10S V2 or the COMWAY Fusion Splicer C10S.
• Technicians seeking an optimized, mid-range core alignment machine can utilize the robust COMWAY Fusion Splicer C6.
• For advanced dual-function performance, network engineers rely on specialized platforms like the COMWAY C8 2-in-1 Fiber Endface Melter Fusion Splicer or the heavy-duty COMWAY C9 2-in-1 Fiber Endface Melter Fusion Splicer.
• For highly portable installations, both the COMWAY Fusion Splicer A3 and the upgraded, ultra-compact COMWAY A4 Mini ARC Fusion Splicer serve as ultra-agile, space-saving alternatives.
