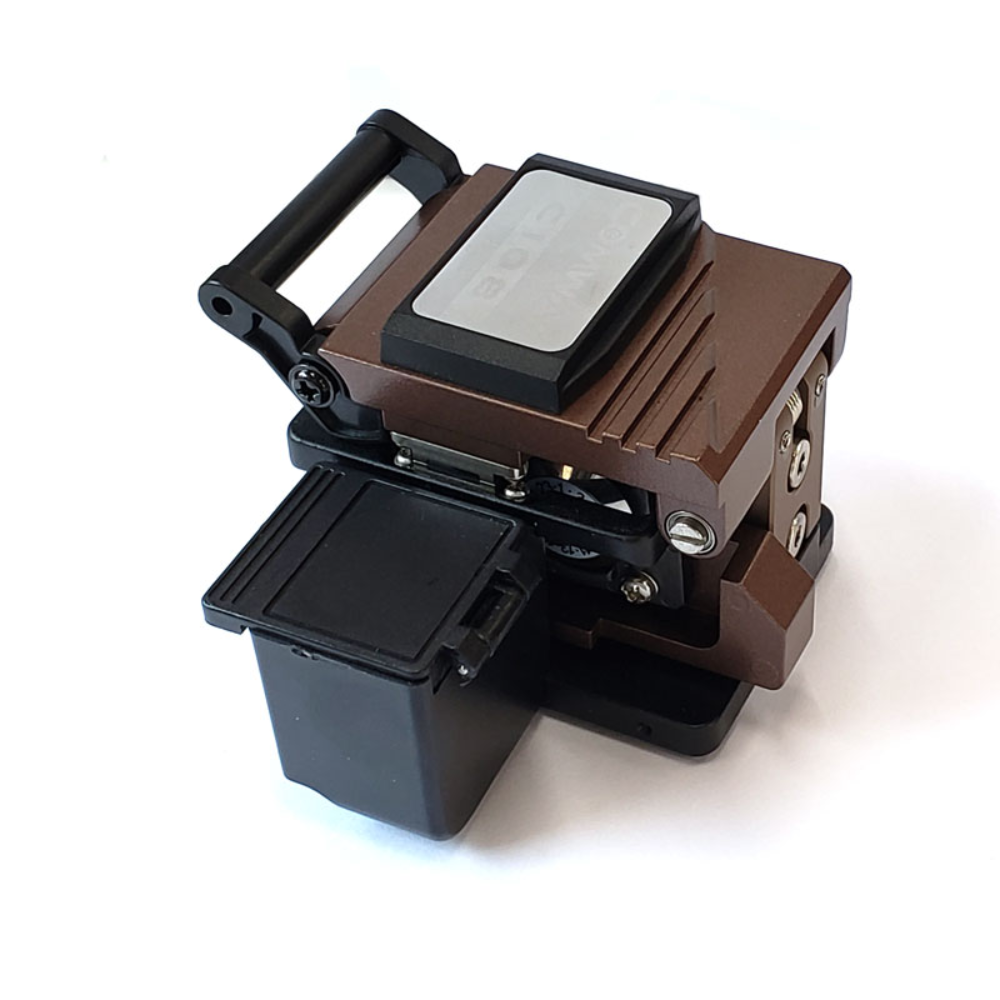

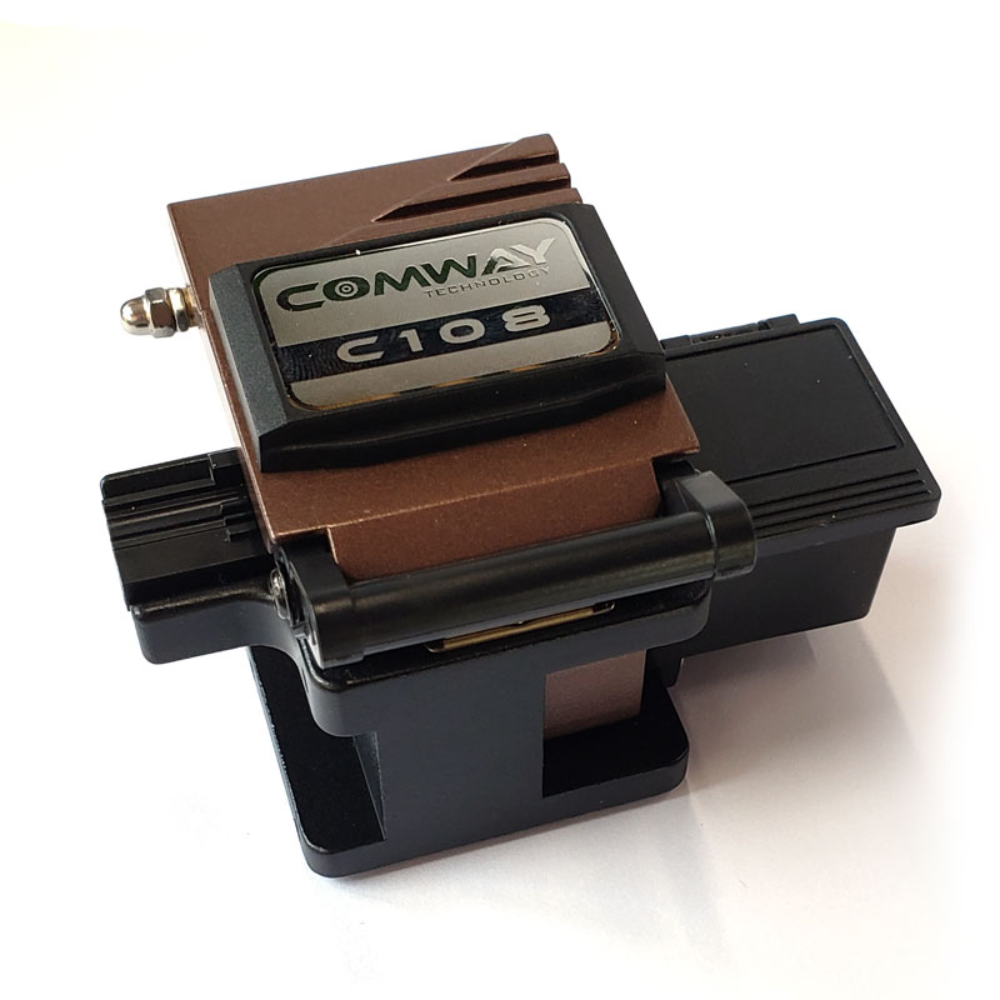

High Precision Cleaver C108
100% satisfaction guaranteed with every order!
In high-performance optical fiber splicing, the quality of the initial fiber cleave directly dictates the ultimate insertion loss of the fused joint. Even the most advanced fusion splicer cannot completely compensate for a jagged, angled, or contaminated fiber face. The High Precision Cleaver C108 is a premium, field-ready instrument engineered to provide consistently perfect perpendicular cleaves. Designed for telecom engineers, enterprise network installers, and Fiber-to-the-Home (FTTH) technicians, this mechanical tool minimizes execution errors and ensures rapid, stable field prep work.
Constructed with a heavy-duty metal chassis and dynamic stabilization springs, the High Precision Cleaver C108 holds standard silica glass fibers securely during the scoring and fracturing cycle. This high-precision cleaver features an automatic fiber scrap collection system, keeping your immediate work area free from hazardous glass shards. Whether you are prepping standard single-mode drop cables or high-density ribbon groupings, the High Precision Cleaver C108 delivers repeatable engineering tolerance levels, keeping your average cleave angle strictly below 0.5 degrees.
Key Features of the High Precision Cleaver C108
- Ultra-Precise Cleaving Angle: Routinely achieves a cleave angle of less than 0.5 degrees, minimizing macro-bends and surface imperfections before splicing.

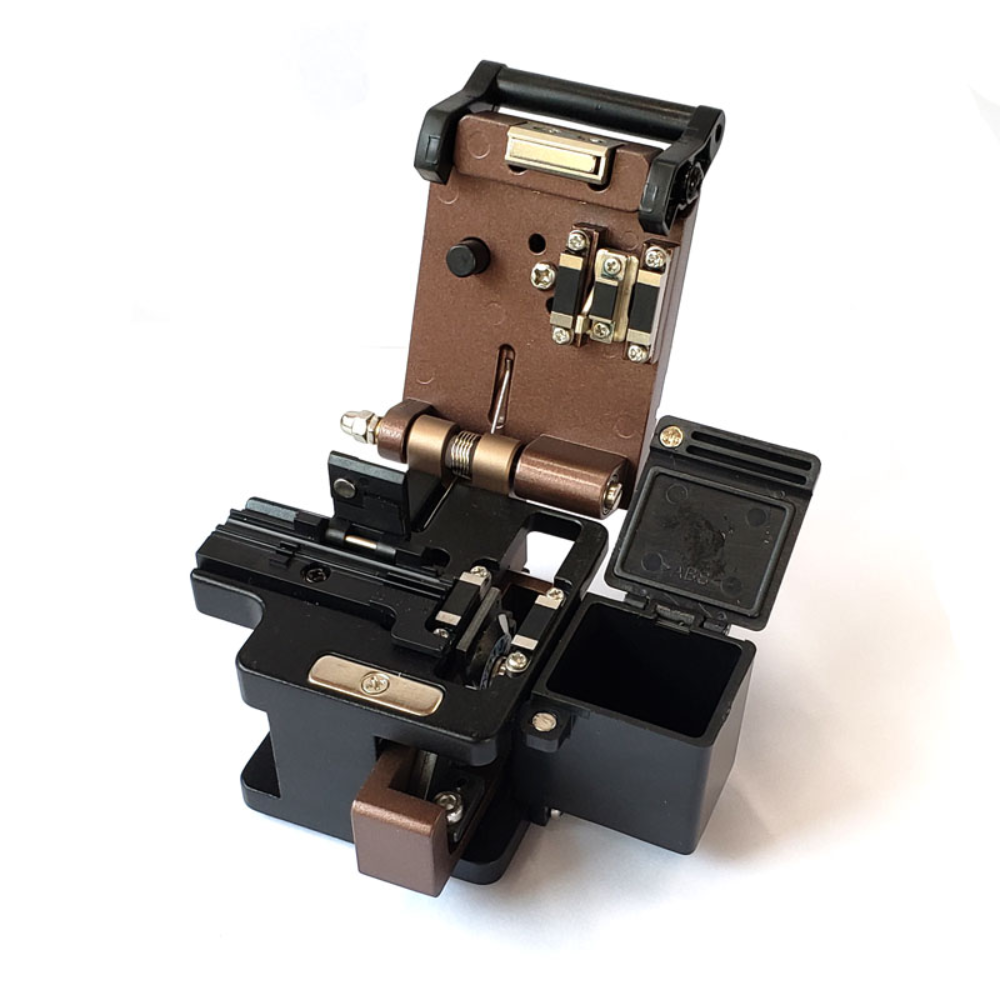

- Automatic Glass Shard Collector: Integrated mechanical trash bin automatically sweeps and stores hazardous glass fiber cut-offs for enhanced site safety.
- 16-Position Adjustable Blade: The premium tungsten carbide blade features 16 individual cutting indexes, delivering up to 48,000 clean cuts over its functional lifespan.
- Dual-Fiber and Ribbon Compatibility: Outfitted with a versatile universal adapter plate that perfectly accommodates 250µm coated fiber, 900µm buffered jacket fiber, flat drop cables, and multi-core ribbon configurations.
- Streamlined Operational Mechanics: Utilizes a smooth, one-step operational sequence—pressing down the top cover clamps, scores, and cleaves the optical path simultaneously.
Optimizing the Cutting Flow for Low-Loss Splicing
Achieving a clean break relies on micro-scoring the silica surface perfectly before applying precise bending tension. The High Precision Cleaver C108 manages this process through targeted internal engineering controls. Dual top rubber dampening blocks hold the fiber perfectly concentric, preventing the optical cable from twisting or slipping out of alignment when the scoring blade travels beneath.
The inner carriage moves the tungsten carbide blade smoothly along a precise mechanical slider path, maintaining a uniform touch height across the fiber face. As the cutting slide finishes its forward movement and the top lid opens, an internal gear mechanism draws the scrap piece cleanly into the rear containment bin. If you ever encounter operational inconsistencies or need guidance on calibration, you can find expert troubleshooting steps through our comprehensive Comway splicing machine support center.
Discover More Premium Fiber Alignment Equipment
To maintain seamless transmission characteristics across high-capacity data networks, using high-quality fiber preparation gear is essential. Discover our collections at Super Flash to build out your technical toolkits:
- For rapid, stress-free fiber terminations, combine your precision cleaver with high-performance fusion machines and matching original field equipment parts available in our Comway fusion splicers accessories catalog.
- For advanced network installations that demand precision 4-motor PAS alignment, deploy the compact COMWAY A4 Mini ARC Fusion Splicer.
- For specialized 2-in-1 capabilities that melt the fiber endface while offering exceptional splicing performance, consider upgrading your field kit to the innovative COMWAY C8 2-in-1 fiber endface melter fusion splicer or its high-capacity counterpart, the COMWAY C9 2-in-1 fiber endface melter fusion splicer.
- For intermediate enterprise networks or dense fiber distribution panels, look to reliable core alignment options like the COMWAY Fusion Splicer C6 or the heavy-duty COMWAY Fusion Splicer C10S V2 available through our storefront listings.
Detailed Technical Specifications
Review the robust mechanical tolerances and technical parameters below:
| Feature / Parameters | Technical Details |
|---|---|
| Model Number | High Precision Cleaver C108 |
| Applicable Optical Fiber | Silica glass bare fiber series |
| Fiber Core Count | Single fiber to multi-core ribbon configurations |
| Cladding Diameter | 125 µm standard |
| Coating Outer Diameter | 250 µm to 900 µm, 2mm/3mm cords, flat drop cables |
| Cleave Length Range | 5 mm to 20 mm (coating dependent) |
| Typical Cleave Angle | Typically less than 0.5 degrees |
| Blade Lifespan | 48,000 individual cleaves (16 indexed positions × 3,000 cuts) |
| Operation Mechanism | Automatic single-action impact fracture |
| Scrap Handling System | Fully integrated automatic disposal collector chamber |
| Chassis Dimensions | 95 mm (W) × 78 mm (D) × 59 mm (H) |
| Total Instrument Weight | Approximately 320 grams |
Frequently Asked Questions (FAQs)
Q1: Why is the average cleave angle important for fusion splicing?
A: The fusion splicer aligns the physical cores of the fibers before firing the electric arc. If the cleave angle is steep (over 1 degree) or has chips, the glass will fuse unevenly, leading to high attenuation points or bubble formations within the joint. The High Precision Cleaver C108 keeps this angle under 0.5 degrees for maximum splicing efficiency.
Q2: How do I adjust the cutting position when the blade becomes dull?
A: When a specific cutting index begins creating irregular cleaves, you can loosen the central locking screw on the blade carriage and rotate the circular tungsten carbide blade clockwise to the next numbered marker (1 through 16).
Q3: Can the High Precision Cleaver C108 handle flat FTTH drop cables?
A: Yes. The multi-functional clamp plate integrated into the C108 is designed to hold 250µm fiber, 900µm tight-buffered fiber, and standard 2mm × 3mm rectangular indoor FTTH drop cables securely without requiring any adapter swap.
Q4: Where can I find genuine replacement blades and accessories?
A: You can source original tungsten replacement wheels, backup storage cases, and matching setup toolings through our related dynamic categories listed on the main store collections layout.
