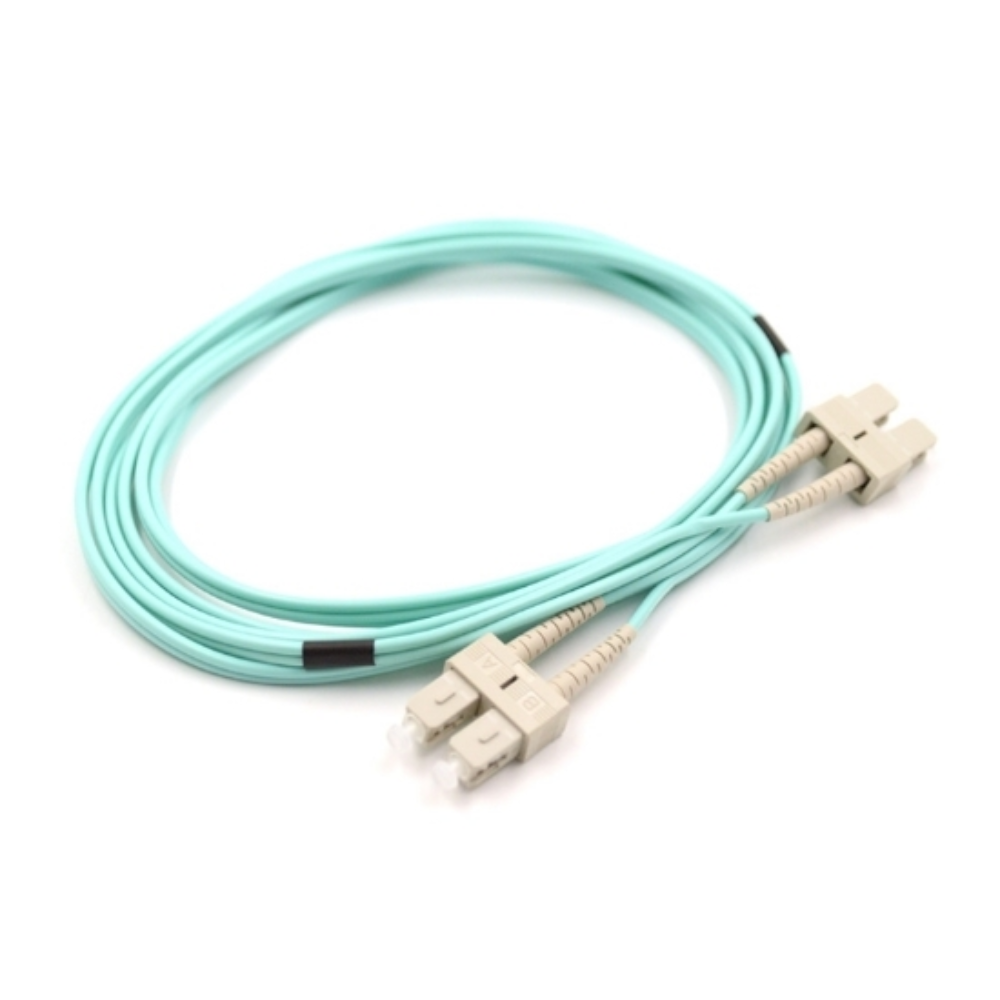

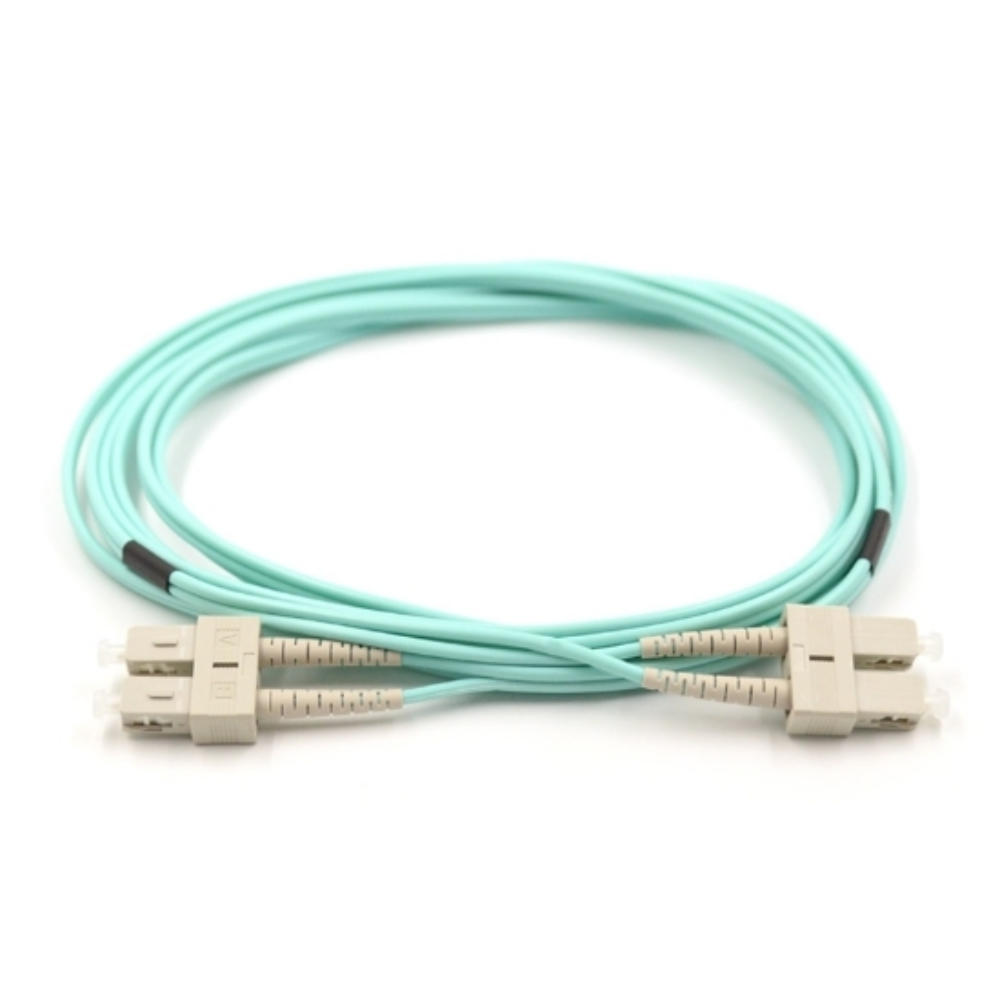

SC/UPC to SC/UPC OM3 Multimode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 20.00
100% satisfaction guaranteed with every order!
Empower your high-speed data center, enterprise network, and server room infrastructure with exceptional throughput using the professional SC/UPC to SC/UPC OM3 Multimode Duplex Fiber Patch Cord. Specifically designed to support 10 Gigabit, 40 Gigabit, and 100 Gigabit Ethernet applications, this patch cable features secure, push-pull SC/UPC connectors (distinguished by their aqua-colored housings) on both ends. This makes it an ideal solution for high-density patch panels, switch-to-server connections, and storage area networks (SAN) where robust mechanical mating and lightning-fast data transmission are paramount.
Constructed from premium 50/125μm laser-optimized OM3 multimode optical fiber, this duplex jumper delivers reliable, low-attenuation performance across short to medium reach distances. The ultra physical contact (UPC) ceramic ferrules ensure minimal surface reflection and a low insertion loss rating of ≤ 0.3 dB, maximizing signal integrity for high-frequency VCSEL laser sources. Encased in a durable, flame-retardant aqua jacket (PVC/LSZH), the internal strands are thoroughly protected against mechanical stress while retaining the exceptional flexibility required for clean, organized rack management.
To accommodate diverse spatial requirements across your server room or enterprise facility, this cable is supplied in a wide selection of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each individual unit undergoes strict factory optical testing to guarantee immediate plug-and-play reliability upon deployment.
Key Specifications & Features
- Connector Type: SC/UPC (Aqua Housing) to SC/UPC Duplex configuration
- Fiber Type: Multimode 50/125μm OM3 (Laser-Optimized)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 30 dB
- Ferrule Material: High-precision Ceramic
- Jacket Color / Material: Aqua / PVC or LSZH
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What network speeds does an OM3 multimode fiber patch cord support?
OM3 multimode fiber supports 10Gbps Ethernet up to 300 meters, as well as 40Gbps and 100Gbps applications over shorter distances using laser-optimized 850nm sources.
2. Why is the jacket color aqua for OM3 cables?
Aqua is the standardized industry color code for OM3 and OM4 laser-optimized multimode cables, allowing technicians to easily distinguish them from single-mode or older multimode fiber types.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable compatible with standard SC transceivers?
Yes, it features standard SC duplex connectors that seamlessly mate with multimode optical transceivers, media converters, and patch panels.
