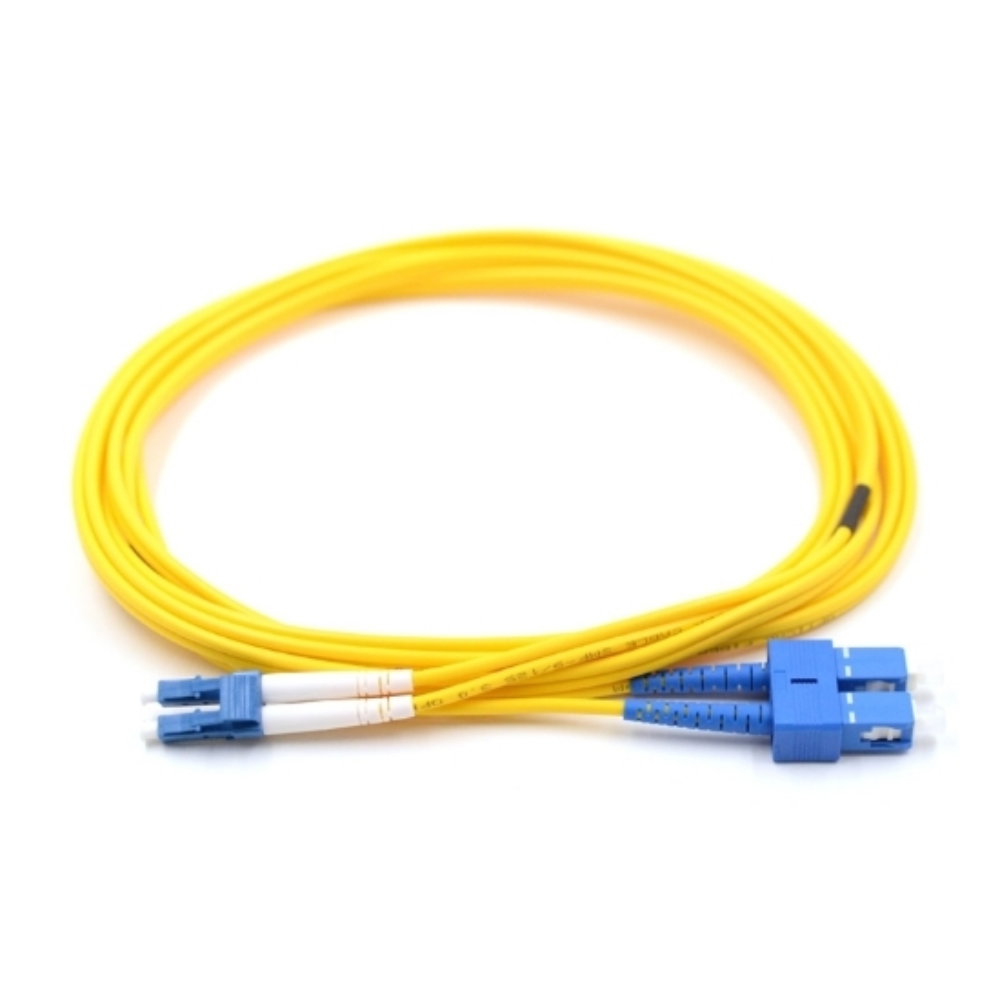

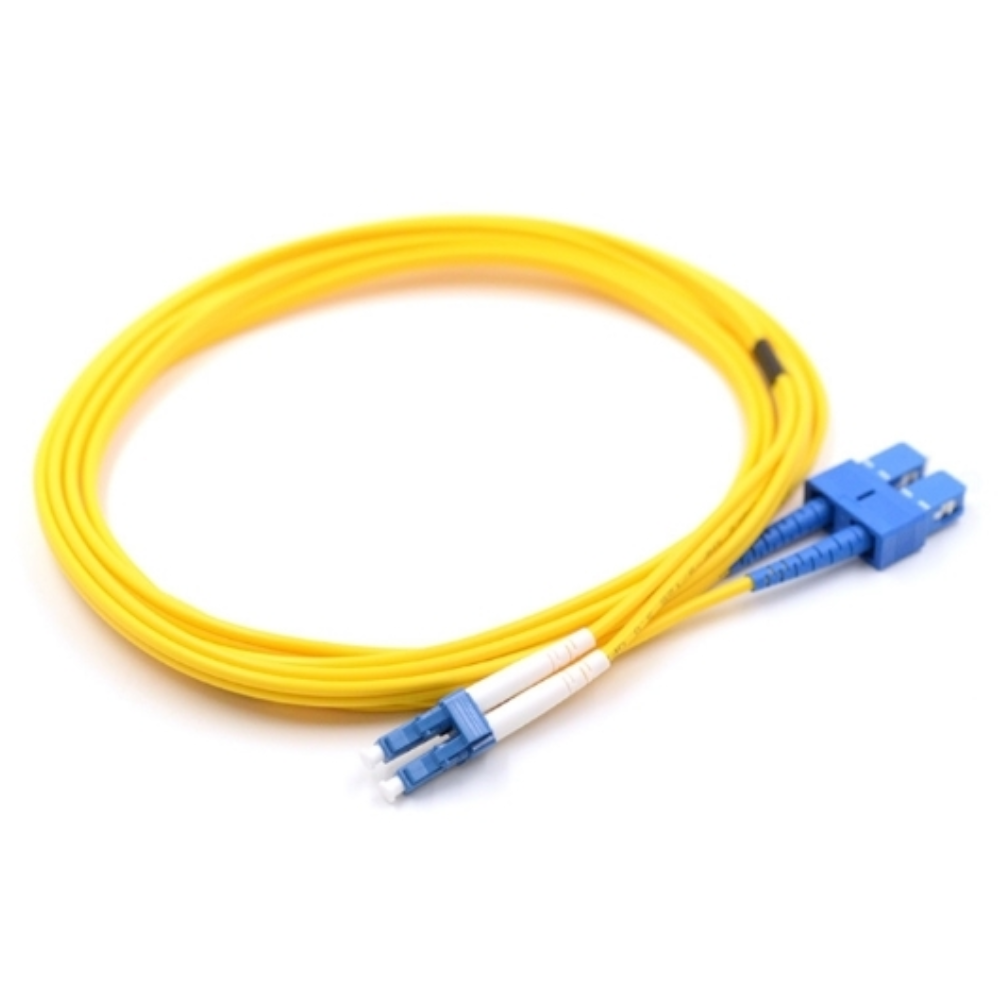

LC/UPC to SC/UPC Single Mode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 17.00
100% satisfaction guaranteed with every order!
Seamlessly bridge disparate optical ports and networking equipment across your infrastructure with the professional LC/UPC to SC/UPC Single Mode Duplex Fiber Patch Cord. Featuring a hybrid connector design equipped with a compact small form-factor LC latch clip on one end and a push-pull square SC housing on the other, this patch cord is engineered for optimal signal transfer between high-density switches, transceivers, media converters, and patch panels.
Manufactured using superior 9/125μm single-mode optical fiber, this duplex jumper facilitates reliable, bi-directional data transmission over extended distances with minimal attenuation and maximum signal integrity. Both connector ferrules are precision-polished to an Ultra Physical Contact (UPC) standard, ensuring excellent core alignment, low insertion loss, and dependable return loss metrics. The durable outer jacket safeguards the internal fibers against mechanical strain while maintaining the flexibility required for clean, organized cable management within server racks.
To accommodate diverse layout requirements across various network architectures, this product is available in a comprehensive range of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each unit undergoes strict factory testing to guarantee immediate plug-and-play reliability upon deployment.
Key Specifications & Features

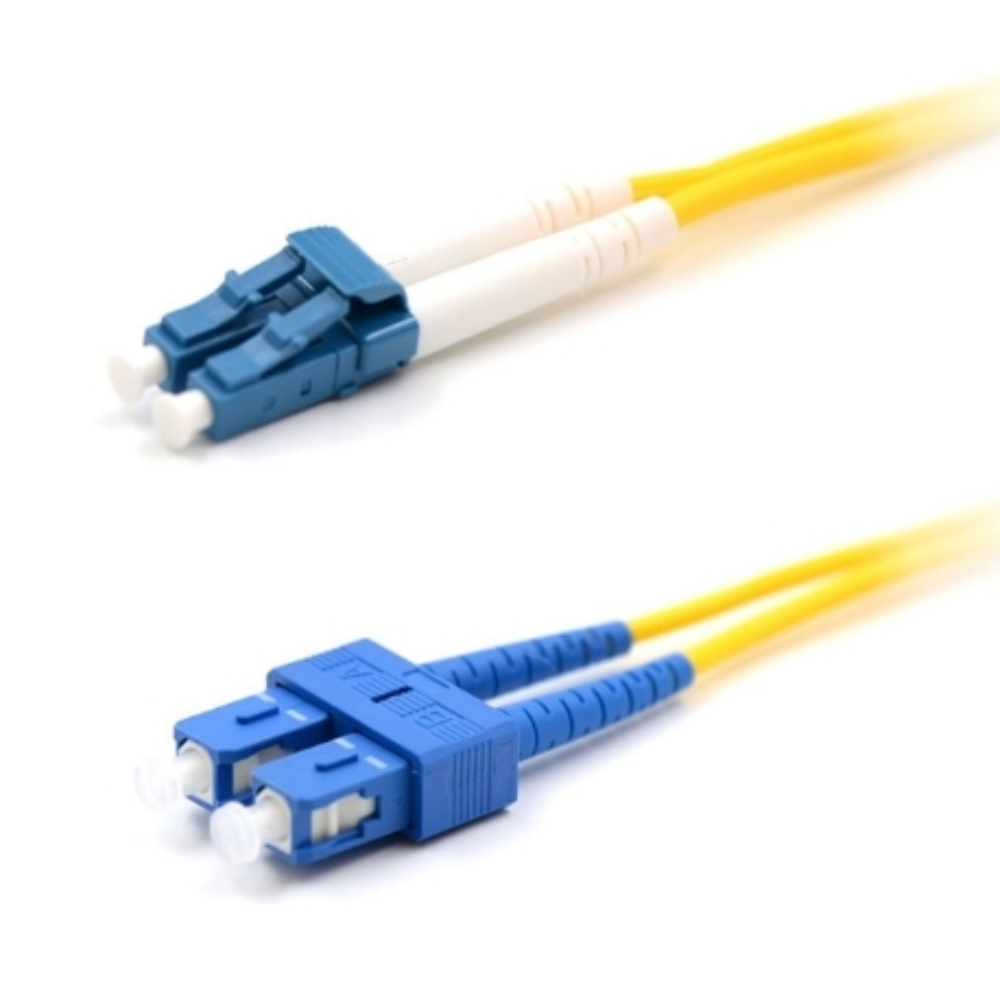

- Connector Type: LC/UPC (Blue) to SC/UPC (Blue) Hybrid Duplex configuration
- Fiber Type: Single Mode 9/125μm (G.652D / G.657A1 compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 50 dB (UPC Polish)
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What is a hybrid LC to SC fiber patch cord used for?
It is used to connect active networking equipment or panels that feature different port types, such as linking an LC-based switch port to an SC-based transceiver or wall outlet.
2. Do both ends feature a UPC polish?
Yes, both the LC and SC ends are manufactured with Ultra Physical Contact (UPC) polishing to maintain low insertion loss and dependable return loss metrics.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable compatible with standard single-mode network setups?
Yes, it is designed for 9/125μm single-mode optical networks, providing high bandwidth and low signal degradation over long distances.
