ST/UPC-LC/UPC Multimode OM3 Duplex Fiber Patch Cable
SUPER FLASH
Regular price
Dhs. 0.00
100% satisfaction guaranteed with every order!

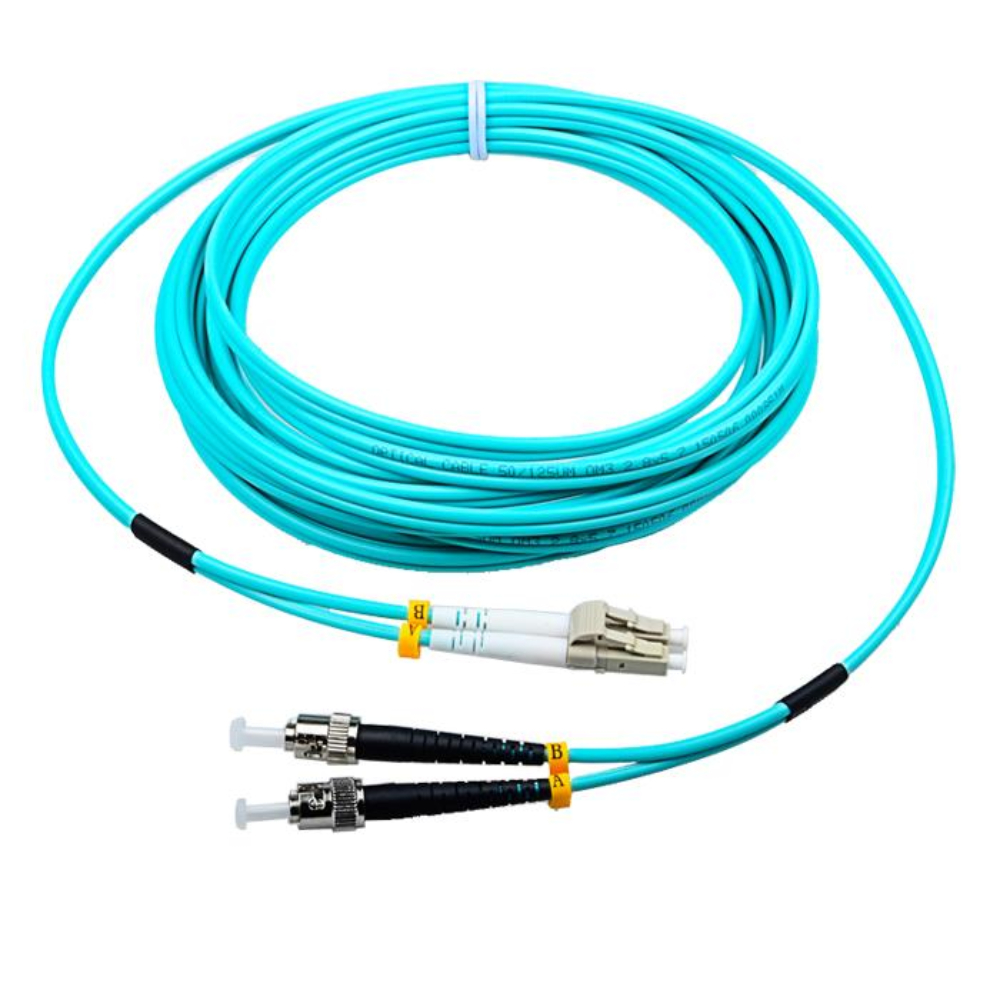

Bridging legacy optical hardware with modern high-density networking switch architecture requires specialized hybrid connectivity solutions. The ST/UPC-LC/UPC Multimode OM3 Duplex Fiber Patch Cable is a precision-engineered hybrid jumper designed to link traditional bayonet-style ST ports with contemporary small-form-factor LC transceiver equipment. Built with laser-optimized 50/125µm OM3 multimode optical glass, this duplex patch cord supports blazing 10-Gigabit Ethernet data rates across local area networks (LANs), campus backbones, and enterprise data center server racks.
Whether you are upgrading server architectures, integrating older distribution frames with high-speed switches, or deploying structured cabling in commercial telecommunication hubs, this heavy-duty OM3 hybrid assembly guarantees minimal insertion loss and reliable, high-bandwidth signal transmission.
Hybrid ST-to-LC Architecture and Mechanical Versatility
The unique hybrid design of this patch cord solves common compatibility challenges found in mixed-generation network environments. On one end, the ST (Straight Tip) connector utilizes a spring-loaded twist-and-lock bayonet barrel mechanism. This reliable circular coupling style is widely deployed in legacy industrial networks, security systems, and older distribution panels, offering exceptional mechanical retention that resists accidental pull-outs under physical vibration.
On the opposite end, the dual LC (Lucent Connector) interface features a compact small-form-factor (SFF) 1.25mm ceramic ferrule paired with a convenient push-pull latch clip. This allows seamless integration into high-density SFP transceivers, switches, and patch panels without crowding adjacent ports. For network engineers, infrastructure contractors, and data center managers requiring professional fusion splicing tools, optical power meters, or component distribution racks to support deployment setups, explore our primary warehouse inventory in the fiber optic cables catalog.
OM3 Laser-Optimized Glass and Ultra Physical Contact (UPC) Polish
At the core of this hybrid assembly is 50/125µm laser-optimized OM3 multimode optical fiber (aqua-colored jacket), specifically designed for 850nm and 1300nm vertical-cavity surface-emitting laser (VCSEL) sources. OM3 fiber supports 10-Gigabit Ethernet transmission distances up to 300 meters, as well as 40Gb/s and 100Gb/s configurations over shorter data center runs, making it an ideal choice for high-speed enterprise networks.
Both terminal ends undergo rigorous Ultra Physical Contact (UPC) polishing cycles, creating a smooth, domed ferrule end-face that eliminates microscopic air gaps. This direct glass-to-glass contact ensures exceptionally low insertion loss (typical ≤ 0.25dB) and reliable return loss performance, protecting your data stream from packet errors. For technical teams expanding regional distribution layouts or configuring complex patch frameworks, review our advanced optical management platforms.
Key Technical Specifications
| Cable Assembly Type | ST/UPC to LC/UPC Multimode OM3 Duplex Hybrid Patch Cable |
| Fiber Core Specifications | Multimode OM3 50/125µm Laser-Optimized (Aqua Sheath) |
| Connector Interfaces | ST Bayonet Twist-Lock (Side A) to Duplex LC Push-Pull Latch (Side B) |
| Insertion Loss Performance | ≤ 0.25dB Maximum Across Operating Wavelengths (850nm/1300nm) |
| Bandwidth Capacity | 10Gb/s up to 300 Meters (OM3 Laser Optimized Standard) |
| Polish Grade | UPC (Ultra Physical Contact) Domed Ceramic Ferrule Finish |
| Jacket Material Standard | LSZH (Low Smoke Zero Halogen) Aqua Outer Sheath |
| Operating Temperature Range | -20°C to +75°C |
Installation and Handling Best Practices
- Engage the ST Bayonet Lock Fully: When connecting the ST side, push the outer metal sleeve forward and twist until the pin seats securely into the slot. Incomplete locking can cause high insertion loss due to axial misalignment.
- Keep Ferrule Ends Decontamination-Free: Dust particles on multimode glass cores scatter light and degrade network throughput. Always clean both connector tips using a mechanical click-cleaner prior to mating.
- Observe Minimum Bend Radii: While OM3 jackets feature flexible flame-retardant polymers, avoid sharp kinking or excessive tension around cable management hooks to protect the internal optical strands.
Related Fiber Optic Assets & Collections
To scale out your full architectural network setup or cross-compare with other high-precision termination variants, please explore our alternative setups and hardware solutions below:
- Explore FC/APC to FC/APC Singlemode Simplex Fiber Patch Cables
- View FC/APC to SC/UPC Single-Mode Simplex Patch Cable Specifications
- Check SC/UPC to LC/UPC Single-Mode Duplex Patch Cords
- Shop High-Performance Simplex Interconnect Solutions
Frequently Asked Questions (FAQ)
Q: What is the main benefit of using an ST-to-LC hybrid patch cable?
A: An ST-to-LC hybrid cable bridges legacy hardware outfitted with bayonet ST ports to modern high-density networking equipment featuring small-form-factor LC transceivers without requiring separate hardware converters.
Q: What transmission speed and distance does OM3 multimode fiber support?
A: OM3 50/125µm laser-optimized multimode fiber supports 10-Gigabit Ethernet data transmission up to 300 meters, making it ideal for high-speed campus backbones and data center server connections.
Q: How does the ST connector lock into place compared to an LC connector?
A: The ST connector utilizes a twist-and-lock spring-loaded bayonet barrel mechanism for secure physical retention, whereas the LC connector uses a compact push-pull latch clip designed for high-density ports.
