Migrating to high-speed Gigabit Ethernet networks while managing legacy multi-mode infrastructure poses structural challenges for enterprise data installations. The FC/UPC to LC/UPC Multimode Mode Conditioning Fiber Optic Patch Cable provides a precision-engineered solution. Designed specifically for 1000BASE-LX transmission links running over existing 62.5/125µm OM1 or 50/125µm OM2 multi-mode networks, this premium patch cord eliminates the common operational pitfalls of laser-driven hardware on legacy glass core deployments.

By shifting the optical launch characteristics away from the physical center of the fiber, this specialized cable ensures stable data streams, preventing packet dropouts and preserving structural hardware investments across local area networks (LANs), enterprise storage arrays, and high-density telecom cross-connect bays.

The Mechanics of Mode Conditioning Technology

Standard multi-mode fiber optic systems traditionally relied on Light Emitting Diode (LED) sources to propagate light signals down the core. Modern high-bandwidth networking hardware relies on highly focused Single-mode Vertical-Cavity Surface-Emitting Lasers (VCSELs) or Fabry-Perot edge-emitting lasers to hit Gigabit and 10-Gigabit operational thresholds. When a single-mode laser source is coupled directly into the center of a legacy multi-mode glass core, an undesirable phenomenon known as Differential Mode Delay (DMD) occurs.

DMD splits the single laser transmission into multiple spatial paths, causing varying light waves to reach the receiving optics at marginally different time intervals. The practical result is severe pulse spreading, high bit-error rates, and complete channel jitter. The FC/UPC to LC/UPC Mode Conditioning Patch Cord incorporates a permanent, built-in offset fusion splice. This offset couples a precise single-mode fiber core into a multi-mode fiber line with a microscopic, calibrated off-center alignment. By pushing the laser launch toward the outer edges of the multi-mode core, DMD is eliminated, creating an even, uniform modal distribution across the full link distance.

This design operates strictly under the rigorous specifications outlined in IEEE 802.3z standards for Gigabit Ethernet. For system engineers seeking comprehensive diagnostic tools or fusion splicing machinery to terminate custom multi-mode lines in the field, explore our full spectrum of telecom maintenance hardware within our fiber optic cables catalog.

Premium Structural Architecture & Advanced Terminations

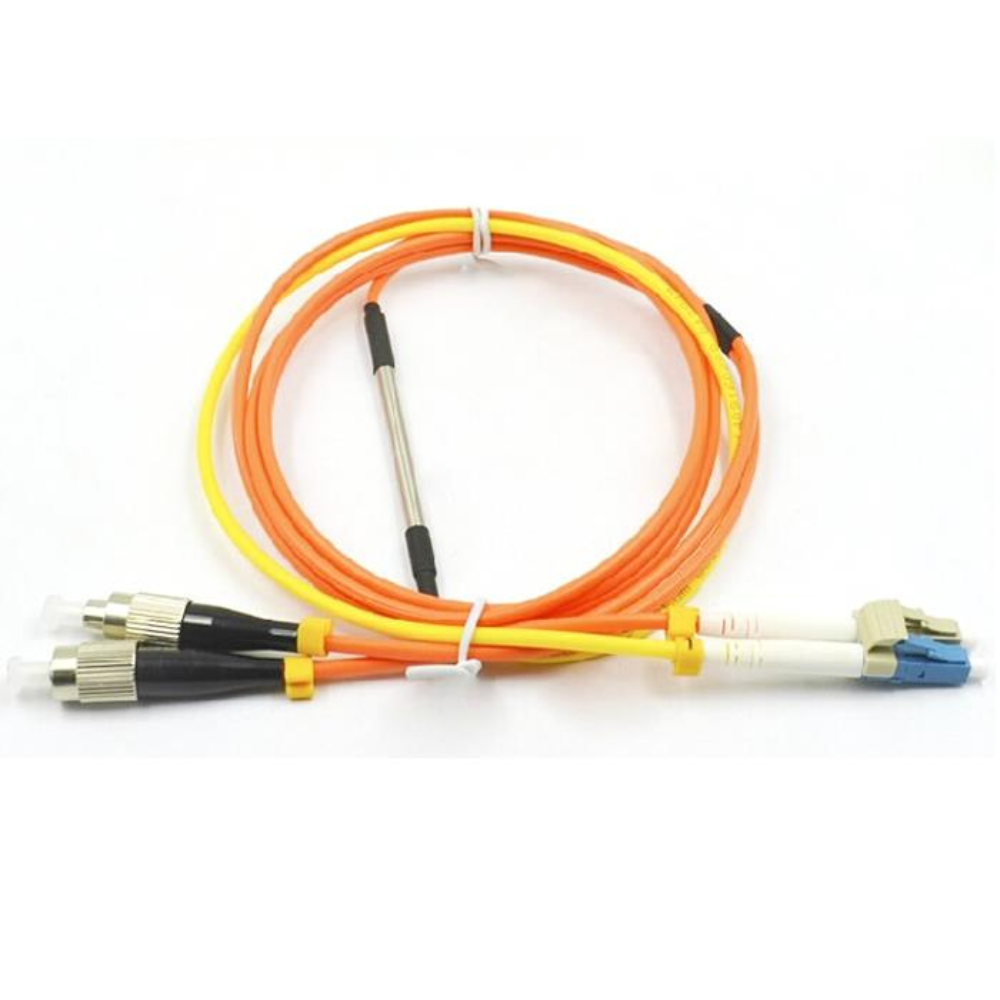

At the structural core of this premium cable assembly is a hybrid fiber construction combining a 9/125µm single-mode launch lead permanently spliced to a 50/125µm or 62.5/125µm multimode optical core. This assembly is housed in a ruggedized duplex configuration designed for heavy-duty operational use. The input side features a threaded, heavy-duty FC/UPC connector. The FC (Ferrule Connector) architecture features a metal housing with a reliable screw-on mechanism, ensuring high mechanical pull strength and exceptional structural stability in high-vibration networking environments.

The output side utilizes a compact, push-pull LC/UPC connector. Featuring a 1.25mm ceramic ferrule, the LC connector reduces spatial demands by 50% compared to legacy SC styles, maximizing configuration capacity inside high-density distribution hubs. Both connection heads feature an Ultra Physical Contact (UPC) geometric polish. This dome-like surface architecture maximizes direct physical glass contact while mitigating back-reflections, resulting in an exceptionally low insertion loss profile (≤ 0.3dB) and enhanced return loss values (≥ 35dB) across all connected optical ports.

The outer jacket layer is extruded using Low Smoke Zero Halogen (LSZH) compounds, guaranteeing maximum public safety by preventing toxic halogen gas release during extreme thermal events. For enterprise installers configuring new panels or establishing raw field setups, ensuring flawless core alignments requires matching equipment. Explore our specialized distribution networks to review precision fiber termination systems and testing units.

Key Technical Specifications

Installation and Deployment Directives

1. Directional Orientation Alignment: Mode conditioning cables are highly directional. The specialized single-mode launch leg must always connect to the transmit (TX) port of your single-mode transceiver hardware. The standard multi-mode side must map directly into the corresponding multi-mode patch bay or hardware distribution panel. Reverse orientation will cause catastrophic link degradation.
2. Maintain Bend Radius Standards: Ensure the permanent inline splice enclosure (the hard plastic molding housing the offset fiber junction) remains completely flat and unsupported. Avoid bending the fiber jacket below a 30mm radius boundary to prevent permanent micro-fractures in the glass structure.
3. Ferrule Decontamination Routines: Laser emissions passing through contaminated terminations can bake microscopic dust into the ceramic end-face. Always clean the FC and LC connection tips using single-use click-cleaners or lint-free mechanical swabs before insertion. For engineering squads building custom distributions requiring permanent links, verify clean connections using high-grade optical tools.
