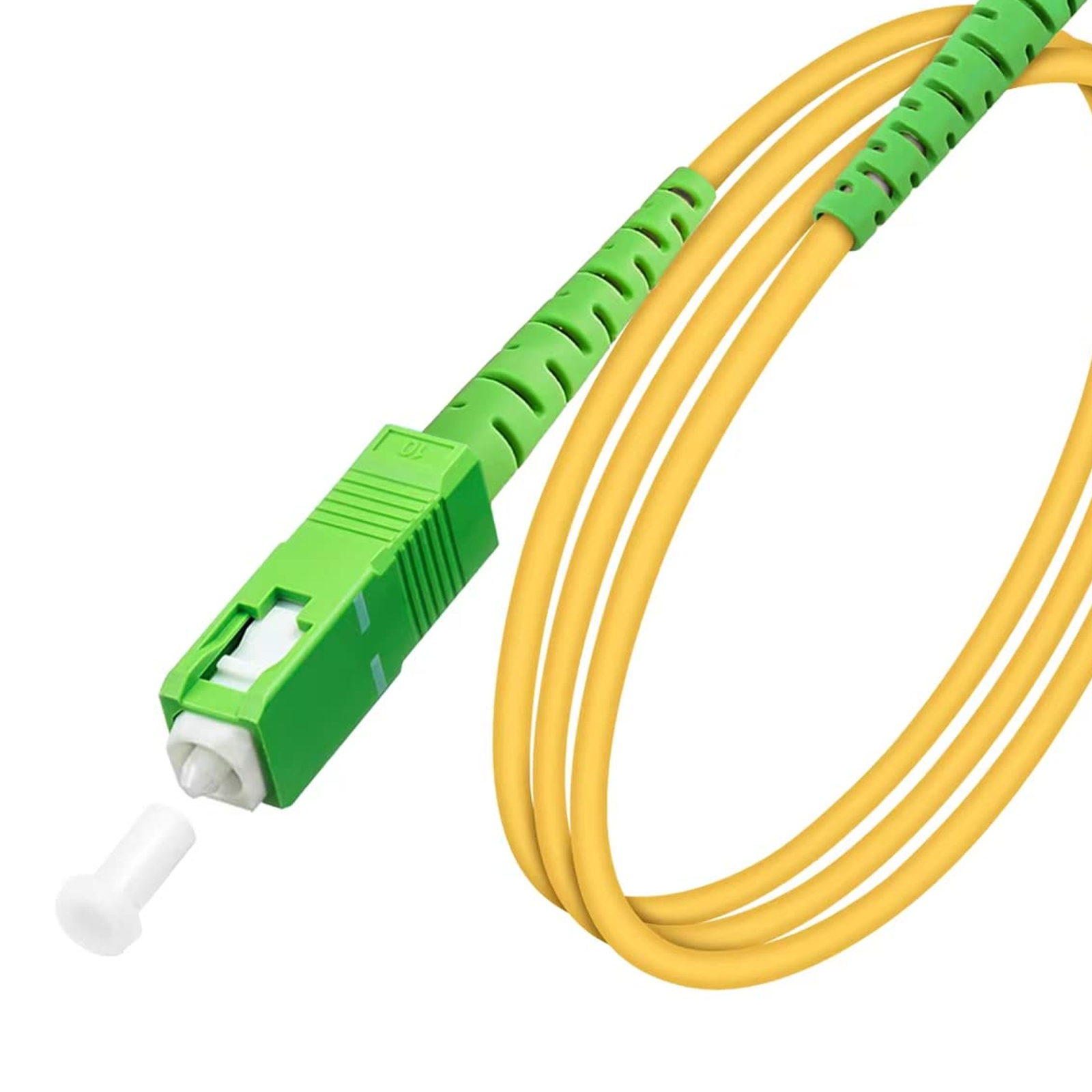

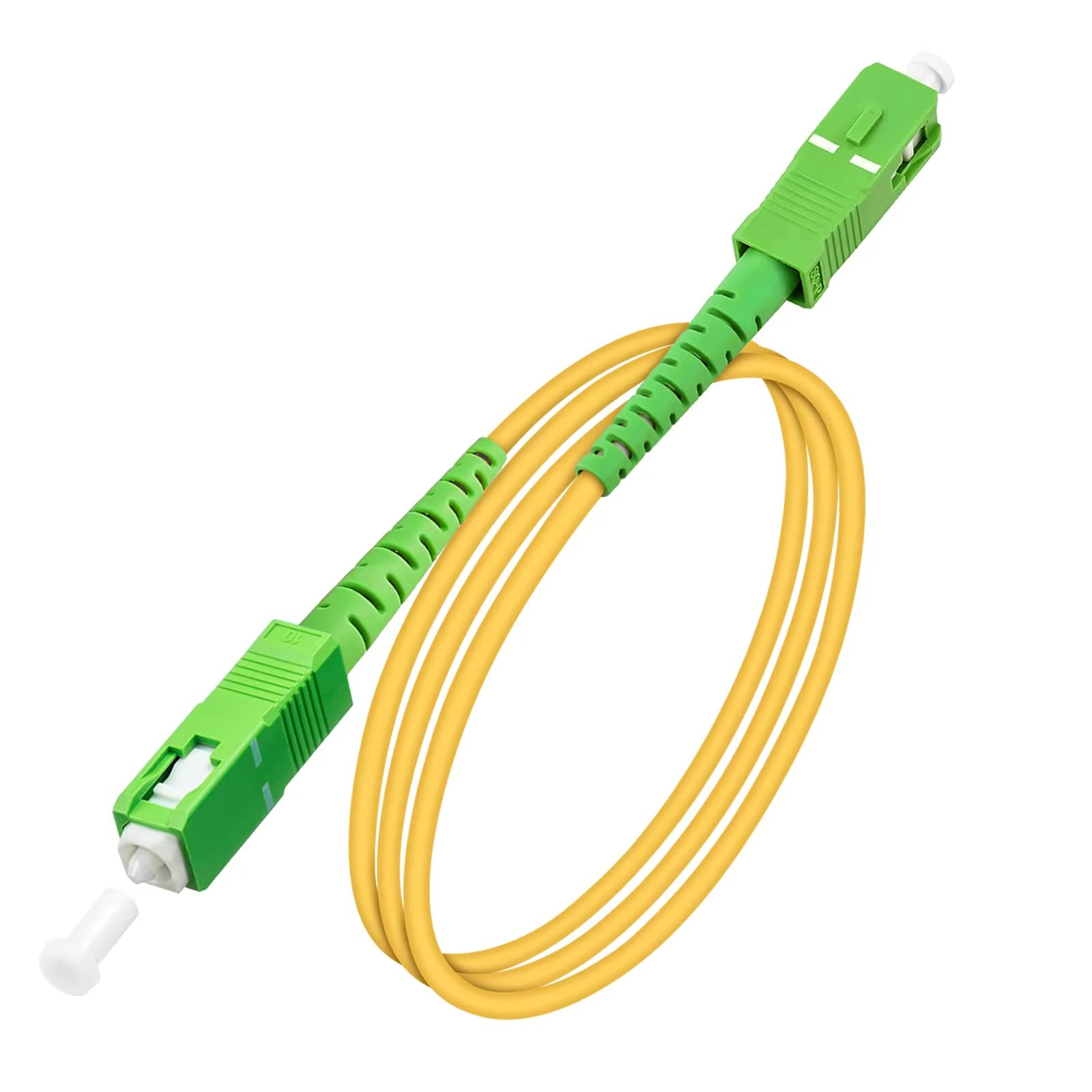

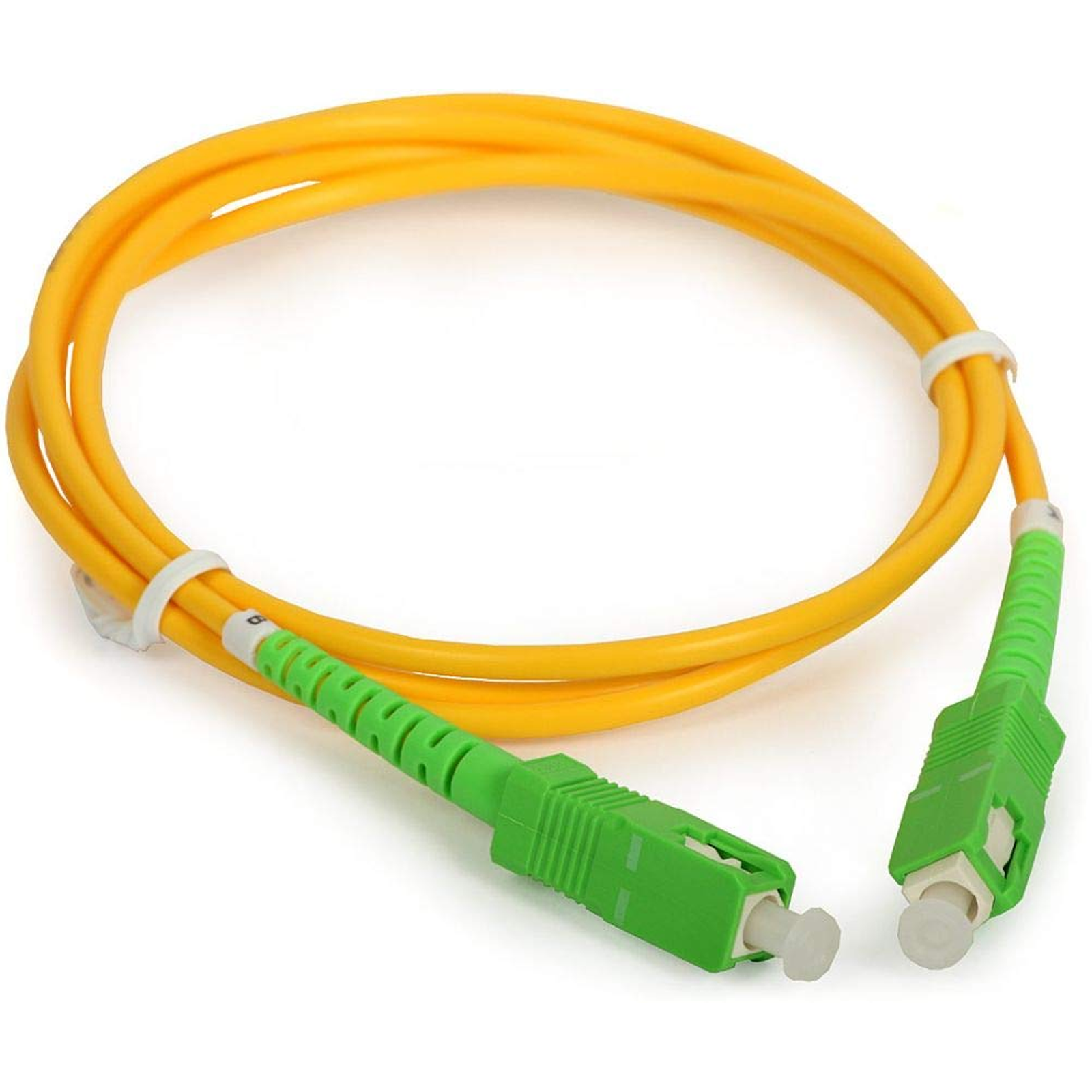

SC/APC to SC/APC Single Mode Simplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 15.00
100% satisfaction guaranteed with every order!
Upgrade your telecom, ISP, and enterprise networks with our premium SC/APC to SC/APC Single Mode Simplex Fiber Patch Cord. Engineered with high-grade 9/125µm OS2 single-mode fiber cores, this jumper delivers ultra-low insertion loss (≤ 0.2 dB) and superior return loss (≥ 60 dB). The green Angled Physical Contact (APC) connectors feature an 8-degree polished ferrule end-face, minimizing optical back reflection to safeguard sensitive transmitters in high-bandwidth networks.
Whether you are connecting FTTH optical network terminals (ONTs), patch panels, or high-speed GPON devices, this simplex patch cord guarantees consistent optical signal integrity across all deployment scenarios. Available in versatile standard lengths ranging from 1.5M up to 50M, it provides maximum flexibility for both tight rack routing and long-distance inter-cabinet connectivity.
Key Features & Technical Specifications
- Connector Type: SC/APC to SC/APC (Green Connectors)
- Fiber Mode: OS2 Single Mode 9/125µm
- Strand Count: Simplex (1 Strand)
- Cable Jacket: 2.0mm / 3.0mm LSZH (Low Smoke Zero Halogen)
- Operating Wavelength: 1310nm / 1550nm
- Insertion Loss: ≤ 0.2 dB
- Return Loss: ≥ 60 dB
- Durability: > 1000 mating cycles
- Operating Temperature: -20°C to +70°C
Ideal Applications
- FTTH & Telecom Networks: Seamlessly links fiber distribution hubs to subscriber premises.
- Data Centers & Enterprise Cabling: High-density cross-connects in server racks and network cabinets.
- CATV & Broadband Testing: Perfect for high-return-loss sensitive video and data transmission links.
Looking for alternative fiber setups? Check out our FC/APC to SC/UPC Single Mode Simplex Patch Cable for cross-connect installations, or explore our SC/APC Duplex Fiber Patch Cord if your equipment requires dual-strand connectivity. Browse our complete Fiber Optic Cables Collection for armored, outdoor, and loopback cabling solutions.
Need Bulk Quantities or Project Pricing?
Super Flash General Trading LLC is a leading wholesale supplier of networking and ICT infrastructure solutions in the UAE. We offer special contractor discounts, project quotes, and bulk pricing on all fiber cabling accessories.
Frequently Asked Questions (FAQs)
What does SC/APC mean?
SC stands for Subscriber Connector (a push-pull square connector), and APC stands for Angled Physical Contact. APC connectors feature a ferrule polished at an 8-degree angle, which significantly reduces optical back reflection compared to standard flat (UPC) connectors.
Can I connect an SC/APC connector to an SC/UPC connector?
No, you should never mate an APC (green) connector directly with a UPC (blue) connector. Doing so will cause severe insertion loss and can permanently damage the ceramic ferrules. If you need to interface between APC and UPC equipment, use a hybrid FC/APC to SC/UPC Fiber Cable or appropriate hybrid adapters.
What is the difference between Simplex and Duplex fiber cords?
A Simplex fiber cord consists of a single fiber strand (one connector on each end) used for one-way data transmission or bi-directional (BiDi) transceivers. A Duplex cable consists of two parallel fiber strands for simultaneous transmit and receive channels.
