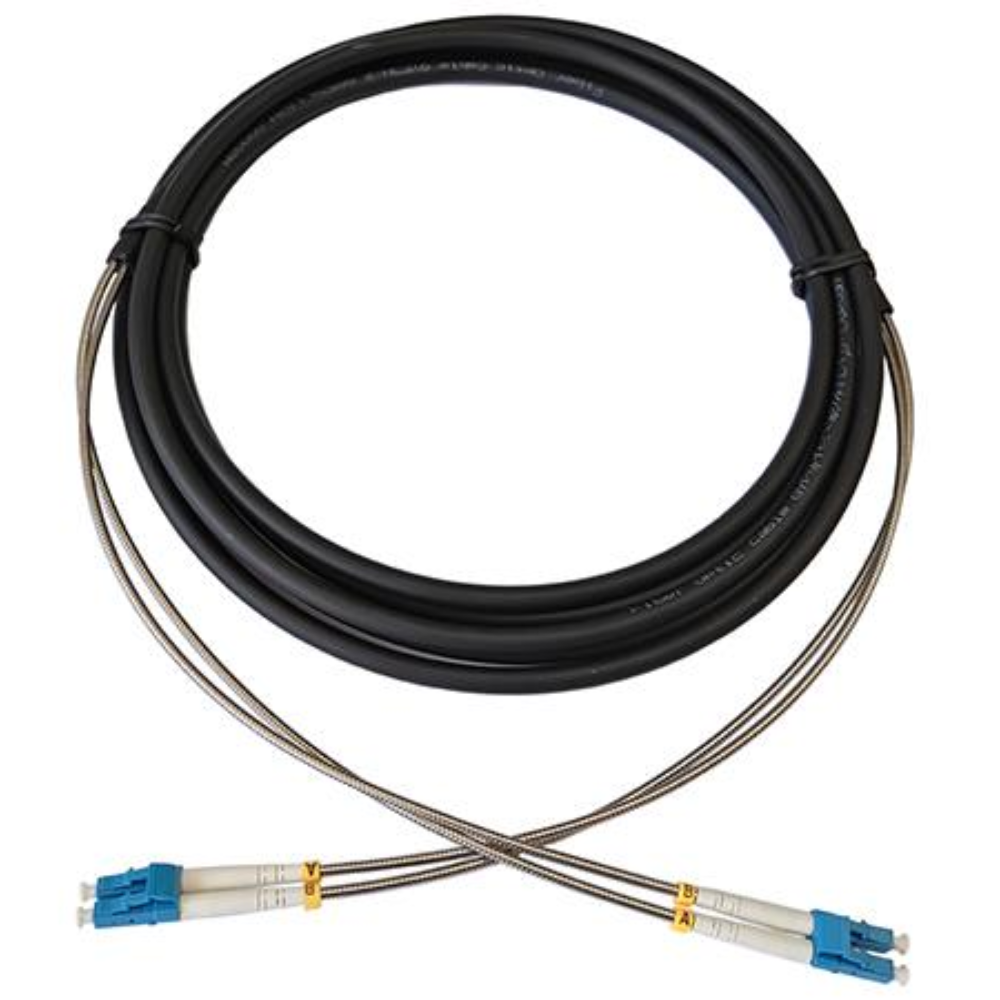

Modern telecommunications, next-generation 5G cellular deployments, wireless base stations, and demanding outdoor industrial setups require specialized components that can handle harsh environments. The FTTA (Fiber-to-the-Antenna) Outdoor Weatherproof Fiber Optic Patch Cable is engineered to deliver high-bandwidth data performance while providing maximum protection against physical damage. Built with a highly durable, UV-resistant outer jacket, water-blocking tactical components, and specialized connector assemblies, this industrial-grade outdoor fiber cable forms a dependable high-speed data link between remote base station units and exposed antenna ports.

Designed for cell tower installations, BBU-to-RRU (Baseband Unit to Remote Radio Unit) distributions, external campus surveillance arrays, and marine-grade communication layouts, this heavy-duty FTTA assembly provides long-term stability under severe environmental stress and prevents costly network down-time.

Rugged Outdoor Structural Architecture and Environmental Protection

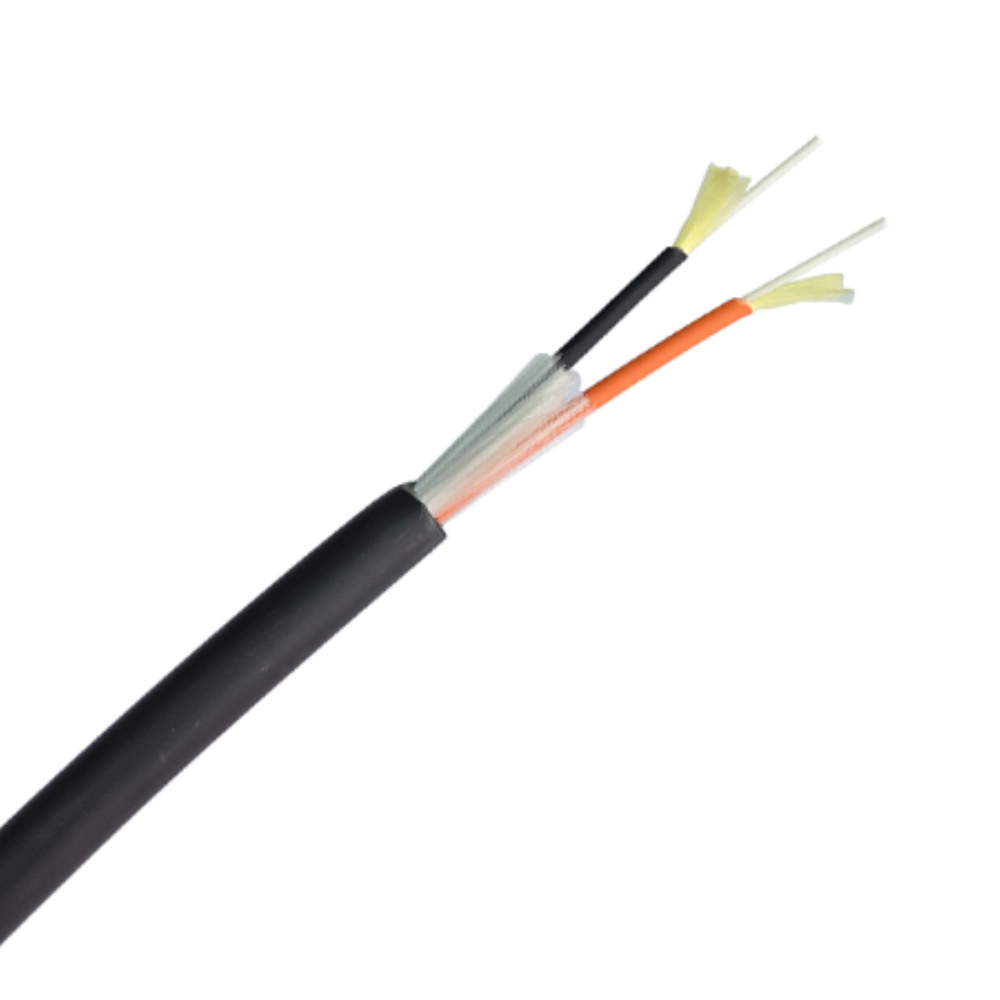

Standard indoor patch cords quickly crack and degrade when exposed to sunlight, heavy rain, and freezing temperatures. This FTTA outdoor tactical assembly counters these vulnerabilities with a ruggedized multi-layered design. The outer layer features a thick, UV-stabilized, flame-retardant jacket that prevents solar breakdown and structural tearing during installation over rough surfaces. Beneath this outer shell, water-blocking aramid strength members and specialized synthetic yarn layers absorb tensile forces during long vertical conduit runs, protecting the internal glass cores from stretching strain.

The internal optical strands are further isolated within individual sub-jackets, ensuring reliable performance in high-moisture environments. For field engineers, cell site technicians, or network contractors who require professional fiber splicing machinery, optical distribution systems, or precision tools to manage outdoor multi-fiber links, check out our full array of professional telecom equipment inside the fiber optic cables catalog.

High-Capacity Optical Performance and Waterproof Connector Systems

At the mechanical center of this outdoor assembly are high-precision glass strands tailored to international G.657.A2 bend-insensitive or G.652.D singlemode performance parameters. The bend-insensitive glass formulation allows field teams to manage tight corner routing and routing enclosures without causing high macro-bending attenuation, ensuring consistent signal performance across thousands of meters. Operating within the standard 1310nm and 1550nm telecommunication windows, this FTTA network jumper easily supports high-speed CPRI, OBSAI, and standard Ethernet data protocols across extreme environments.

The terminal ends are fitted with specialized, waterproof connector housings (such as FullAXS, PDLC, or ODVA systems) that enclose premium duplex LC or SC connection heads. These protective shells feature an IP67-rated ingress protection lock, preventing dust, humidity, and driven rain from reaching the polished optical glass interface. Every connector undergoes a strict Ultra Physical Contact (UPC) polishing cycle, forming a smooth, domed surface that optimizes direct glass-to-glass contact.

This results in exceptionally low channel loss metrics (typical insertion loss ≤ 0.3dB) and elevated return loss statistics (≥ 50dB), protecting sensitive remote radio heads from performance-degrading back-reflections. For enterprise infrastructure squads managing multi-channel distribution frames or setting up regional telecommunication towers, browse our highly optimized deployment networks to view expert fiber management frameworks.

Key Technical Specifications

Outdoor Installation and Handling Guidelines

1. Secure the Bayonet Lock System: When attaching the waterproof connector head into the remote transceiver port, verify the outer bayonet lock mechanism is completely seated and clicked. An incomplete twist-lock will break the IP67 seal, allowing humidity to collect on the internal optical interface.
2. Avoid Tight Kinking Near Enclosures: While this FTTA line uses bend-insensitive optical glass, do not exceed the minimum structural bend radius near attachment clips or junction entries under active tension. Always maintain a smooth loop radius to ensure optical longevity.
3. Rigorous Face-End Decontamination: Outdoor installations present extreme dust and moisture risks. Always use a professional mechanical clean-click tool to sweep the internal LC connector faces right before locking the assembly into place. For tower crews completing critical links, evaluate all connections using specialized optical validation gear.
