SC/UPC to ST/UPC Single Mode Duplex Fiber Patch Cord
SUPER FLASH
Regular price
Dhs. 17.00
100% satisfaction guaranteed with every order!

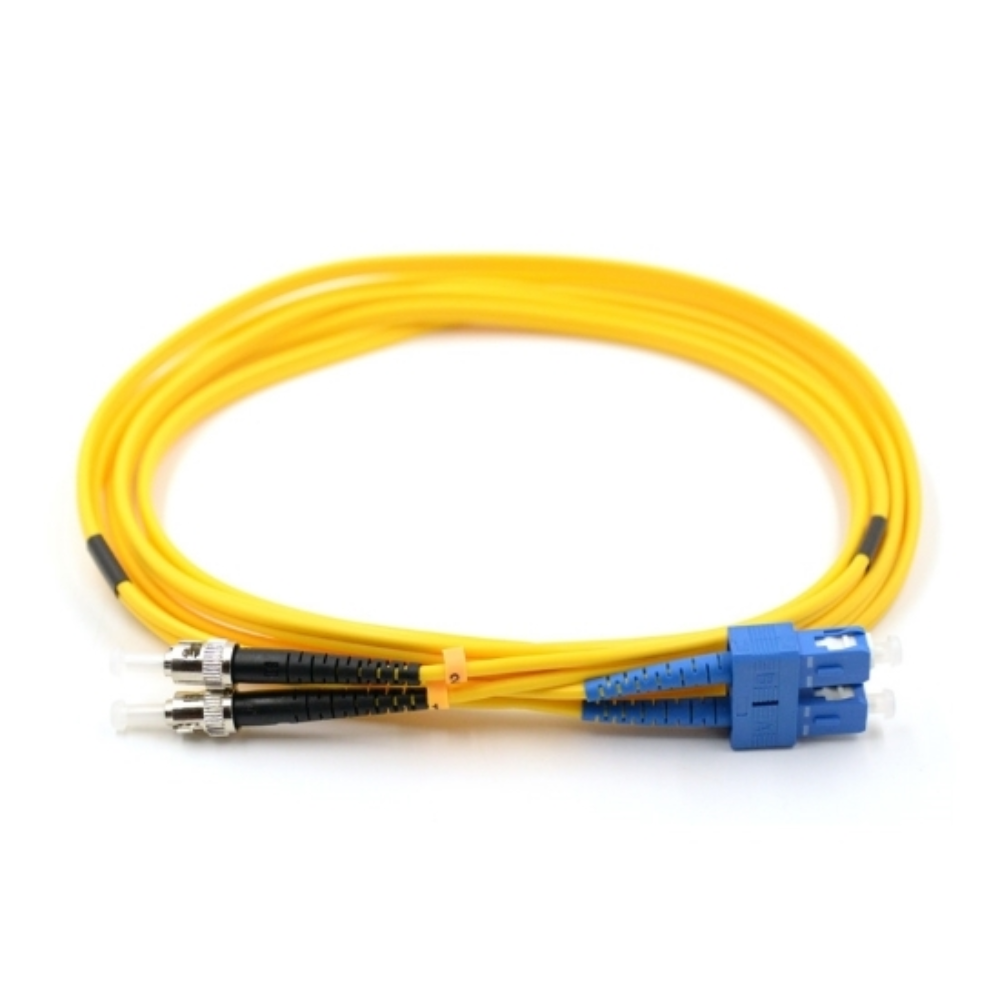

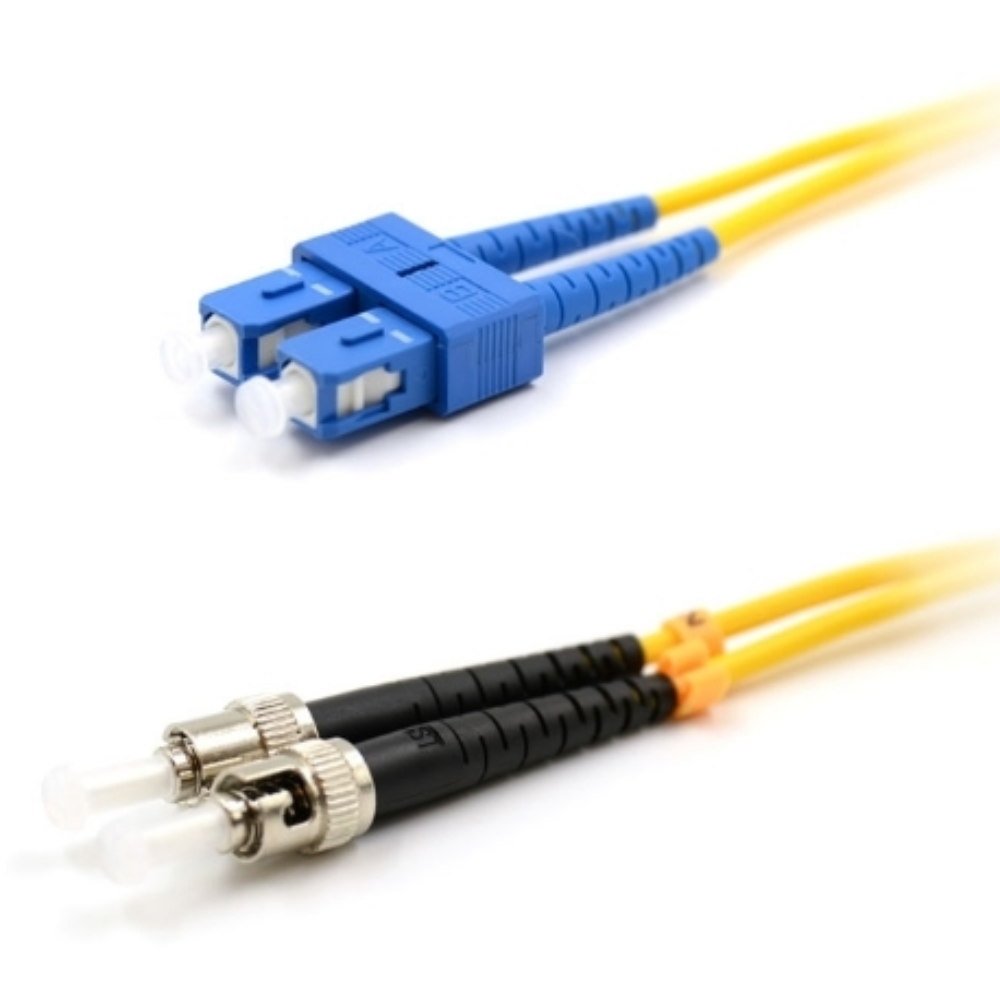

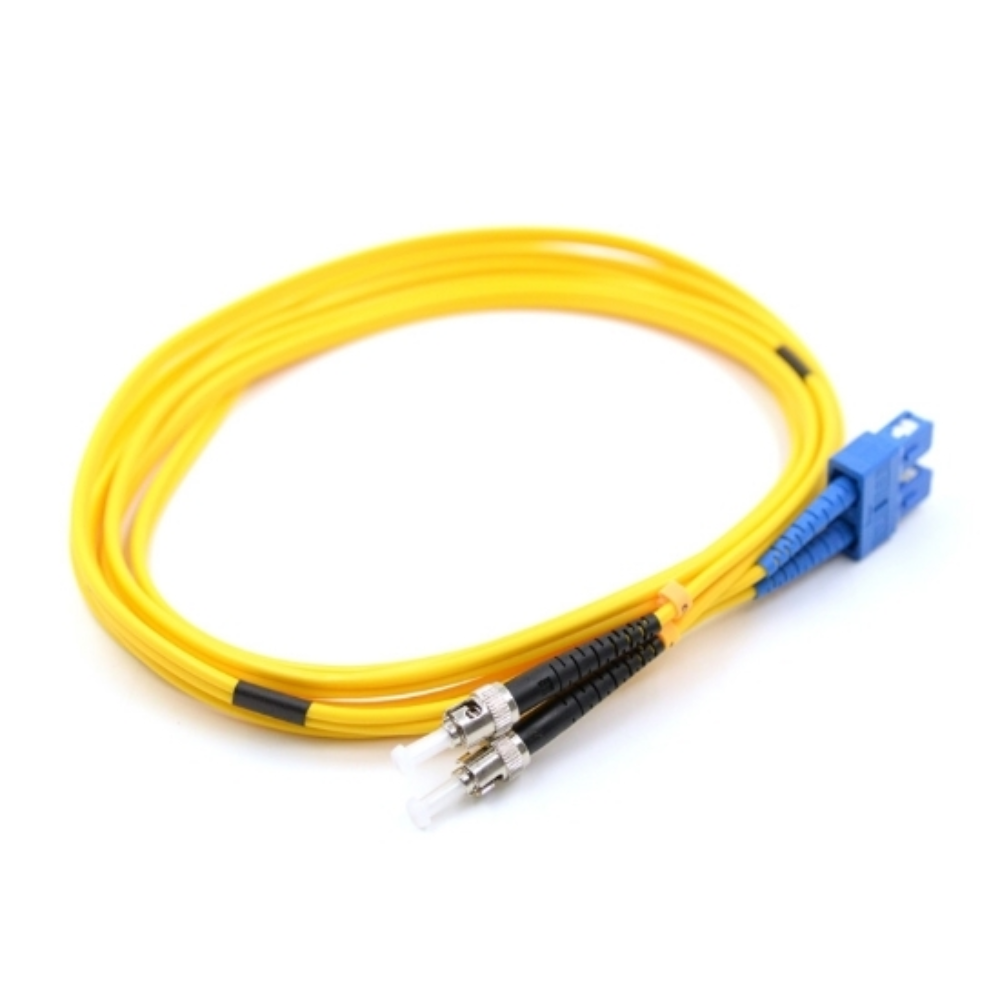

Seamlessly link legacy networking hardware with modern distribution panels using the professional SC/UPC to ST/UPC Single Mode Duplex Fiber Patch Cord. Engineered for high-precision hybrid connectivity, this patch cable mates a square, push-pull SC/UPC connector (blue housing) on one end with a circular, twist-to-lock bayonet ST/UPC connector on the other. This unique configuration is ideally suited for bridging traditional telecommunications equipment, campus backbone networks, measurement instruments, and industrial control systems that require robust mechanical mating.
Constructed from premium 9/125μm single-mode optical fiber, this duplex jumper delivers reliable, low-loss transmission performance across extended distances. Both connector ends feature an Ultra Physical Contact (UPC) machine polish, minimizing air gaps during physical mating to yield an exceptional return loss rating of ≥ 50 dB and an insertion loss of ≤ 0.3 dB. The durable outer jacket shields internal glass strands against environmental strain while maintaining the flexibility necessary for clean rack management and high-density patching cabinets.
To accommodate diverse spatial requirements across your data center or enterprise facility, this cable is available in a comprehensive range of precision lengths, including 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M. Each unit undergoes strict optical testing to guarantee immediate plug-and-play reliability upon deployment.
Key Specifications & Features
- Connector Type: SC/UPC (Push-Pull) to ST/UPC (Bayonet Twist-Lock) Hybrid Duplex configuration
- Fiber Type: Single Mode 9/125μm (OS2 / G.652D compatible)
- Available Lengths: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M
- Insertion Loss: ≤ 0.3 dB
- Return Loss: UPC ≥ 50 dB
- Ferrule Material: High-precision Ceramic
- Jacket Material: PVC / LSZH (Low Smoke Zero Halogen)
Explore Related Fiber Optic Solutions
Looking for alternative configurations or complete infrastructure products? Explore our full catalog through our Fiber Optic Cables Collection. You may also be interested in these related products:
Planning a Bulk Purchase or Commercial Deployment?
We offer special wholesale pricing, custom lengths, and fast fulfillment for enterprise and contractor orders across the UAE.
Frequently Asked Questions (FAQs)
1. What is the main application for an SC to ST hybrid patch cord?
It is used to interconnect modern equipment featuring SC ports with legacy networking hardware, patch panels, or test instruments equipped with ST bayonet ports.
2. How does the ST connector secure into place?
The ST connector uses a circular barrel housing with a twist-and-lock bayonet mechanism, providing secure, vibration-resistant latching.
3. What available length variations can I choose from?
We supply this patch cord in multiple standard lengths to fit your precise layout requirements: 1.5M, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M, and 50M.
4. Is this cable compatible with single-mode networks?
Yes, it is designed for 9/125μm single-mode optical networks, delivering high bandwidth and low signal degradation over long distances.
