42U Data Rack Overview

A 42U data rack is a foundational component in a data center, designed to securely house and organize electronic equipment. Characterized by its frames and covers (doors), the rack typically has a rectangular parallelepiped shape and is used on the floor. This rack is crucial for maintaining the proper operation of hardware by providing a secure and protective environment.

Dimensions Options

The 42U data rack is available in various dimensions to suit different needs:

• Height Options: The rack comes in several height options, including 22U, 27U, 32U, 37U, 42U, and 47U. This allows for flexibility depending on the amount of equipment you need to install.
• Width and Depth: The standard width of the rack is 800mm, and it also has a standard depth of 800mm. This depth supports devices and items with a workable installation space of 600mm.

Door Options

The data rack offers a variety of door configurations to enhance security and accessibility:

• Front Doors: Options include mesh single-door designs with a spring lock or mesh double-door configurations. These choices allow for different levels of accessibility and airflow.
• Rear Doors: Rear doors come in solid steel or vented/mesh options. You can select between double-door or single-door designs to fit your specific needs.
• Side Doors: Removable side doors are available with an optional small round lock. These provide additional flexibility for accessing equipment.

Accessories Options

The rack includes several accessories to improve functionality and convenience:

• Top Cover: Equipped with 4pcs fans, the top cover ensures efficient ventilation for the equipment housed within the rack.

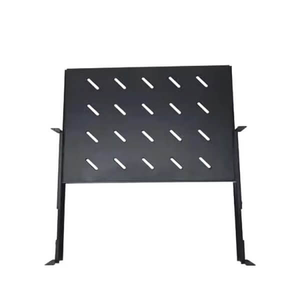

• Shelves: Depending on the height of the rack, it includes 1-3 fixed shelves. Specifically, floor-standing racks below 27U come with 1 fixed shelf; 32U and 37U racks include 2 fixed shelves; and 42U and 47U racks have 3 fixed shelves. Additionally, a sliding shelf is available as an option.
• Cable Management: The rack includes 2pcs vertical cable managers to help keep cables organized and out of the way.
• Screws and Cage Nuts: Depending on the rack height, it comes with 20-40 sets of M6 screws and cage nuts. For racks below 27U, there are 20 sets; 32U and 37U racks include 30 sets; and 42U and 47U racks come with 40 sets.
• Castors and Feet: The rack features 4pcs castors, with optional brakes, and 4pcs adjustable feet to ensure stability and mobility.

Power Distribution Units (PDUs)

Users can choose from a variety of PDU types, including UK, EU, IEC C13 & C19, and Multi-function PDUs. This variety ensures that the rack can meet diverse power distribution needs.

Overall, the 42U data rack offers a comprehensive range of features to accommodate various equipment and configurations in data centers. The flexibility in height, door options, and accessories ensures that it can meet diverse needs and provide reliable support for your hardware.
