Overview

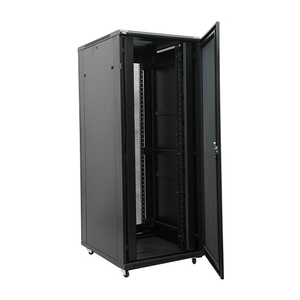

The 47U Network Server Cabinet is a key component in data center infrastructure, designed to provide a secure and efficient environment for electronic equipment. Typically featuring a rectangular parallelepiped shape, it operates on the floor to support proper functioning and safety. The cabinet includes frames and doors (covers) that contribute to its versatility. If a server rack lacks covers or doors, it is referred to as an open rack.

Dimensions

Available Heights

The cabinet comes in a range of heights to accommodate different needs:

• 22U
• 27U
• 32U
• 37U
• 42U
• 47U

Standard Measurements

• Width: 800mm
• Depth: 1000mm
• Workable Installation Space: Provides storage for devices/items with a depth of 800mm.

Door Options

The cabinet features various door options to suit different requirements:

Front Door

The front door is equipped with tempered glass and a spring lock, enhancing security and visibility.

Rear Door

Options for the rear door include:

• Solid Steel Version: Includes a small round lock.
• Perforated Door: Comes with a spring lock, which improves ventilation.

Removable Side Doors

Optional removable side doors can be added, and they can also include a small round lock if needed.

Cooling and Shelving

Cooling Fans

To ensure optimal ventilation, the cabinet includes four cooling fans installed on the top cover. This is particularly beneficial for racks with a depth of 1000mm, promoting efficient airflow and cooling.

Fixed Shelves

The number of fixed shelves varies based on the cabinet height:

• Below 27U: One fixed shelf.
• 32U and 37U: Two fixed shelves.
• 42U and 47U: Three fixed shelves.

Additionally, a sliding shelf is available as an optional accessory for further flexibility.

Cable Management and Additional Features

Vertical Cable Managers

The cabinet can be equipped with two vertical cable managers. These can be installed on either the front or rear side, facilitating effective cable organization and reducing clutter.

Screws & Cage Nuts

The cabinet includes 20-40 sets of M6 screws and cage nuts, depending on its height:

• Below 27U: 20 sets.
• 32U and 37U: 30 sets.
• 42U and 47U: 40 sets.

Castors and Adjustable Feet

The cabinet features four castors for easy mobility, with an optional brake for added stability. Additionally, four adjustable feet ensure the cabinet remains stable on uneven floors.

Power Distribution Units (PDUs)

A variety of PDUs are available, including:

• UK
• EU
• IEC C13 & C19
• Multi-function Types

These options cater to different electrical needs and ensure compatibility with various setups.

Summary

In conclusion, the 47U Network Server Cabinet offers a robust and versatile solution for data centers. Its features, including comprehensive cooling solutions, adjustable shelving, effective cable management, and customizable components, make it an essential part of modern data center infrastructure. This cabinet enhances both functionality and adaptability, ensuring efficient operation and reliability.
