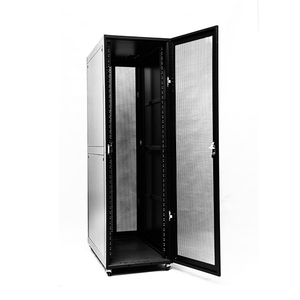

Overview of the 47U Server Cabinet

The 47U server cabinet is a vital component in server racks, which are essential for data center infrastructure. Server racks consist of frames and covers (doors) and generally have a rectangular parallelepiped shape, operating on the floor. This design not only ensures a suitable environment for electronic equipment but also provides necessary safety protection. Consequently, the server rack forms the foundational level in the entire data center system. When a server rack lacks covers or doors, it is known as an open rack.

Dimensions Options

Height

The server cabinet offers various height options to cater to different storage needs and equipment sizes. These options include 15U, 18U, 22U, 27U, 32U, 37U, 42U, and 47U. Each height provides a different level of capacity, ensuring that the rack can accommodate various types and quantities of equipment.

Width and Depth

The standard width of the server rack is 600mm, ensuring compatibility with a wide range of devices. This consistent width allows for seamless integration with various equipment types. Additionally, the standard depth is 800mm, which accommodates devices or items with a depth of up to 600mm. This depth facilitates efficient organization and installation of equipment within the rack.

Door Options

Front Doors

For the front door options, you can choose between a vented single-door with a spring lock or a mesh double-door. The vented single-door provides a balance of ventilation and security, while the mesh double-door offers enhanced airflow and accessibility.

Rear Doors

The rear door options include a solid steel door, a mesh single-door, or a perforated double-door. Each option caters to different needs for access and airflow, allowing customization based on specific operational requirements.

Side Doors

Removable side doors are available, and they can be fitted with a small round lock for enhanced security. This flexibility in access control helps in tailoring the server cabinet to meet various security and accessibility needs.

Accessories Options

Top Cover

The top cover of the server cabinet can accommodate up to 4 fans. These fans are crucial for maintaining optimal airflow and cooling, which is essential for the reliable operation of the equipment housed within the rack.

Shelves

Fixed shelves are included with the server cabinet based on its height. Specifically, racks below 27U come with 1 fixed shelf, while those at 32U and 37U feature 2 fixed shelves. For racks at 42U and 47U, there are 3 fixed shelves provided. Additionally, sliding shelves are available, particularly for racks with a depth of 1000mm, offering added versatility for organizing equipment.

Screws and Cage Nuts

Each rack comes with M6 screws and cage nuts in varying quantities depending on the rack height. Racks below 27U include 20 sets of screws, while those at 32U and 37U are equipped with 30 sets. Racks at 42U and 47U come with 40 sets of screws, ensuring ample hardware for secure installation.

Mobility and Stability

The server cabinet features 4 castors, which can be equipped with or without brakes. This option allows for mobility and stability, depending on your specific needs. Additionally, the rack includes 4 adjustable feet, which enable fine-tuning of the rack’s positioning to accommodate uneven floors.

Power Distribution Units (PDUs)

Various types of PDUs are available for the server cabinet, including UK, EU, IEC C13, C19, and multi-function options. This variety ensures that the server rack meets diverse power distribution needs and adheres to different regional standards.

Summary

In summary, the 47U server cabinet provides a comprehensive and adaptable solution for data center infrastructure. With its range of dimensions, door options, and accessories, the server rack can be customized to meet specific operational requirements. This customization ultimately enhances the performance and reliability of the data center system, ensuring that it effectively supports the electronic equipment housed within.
