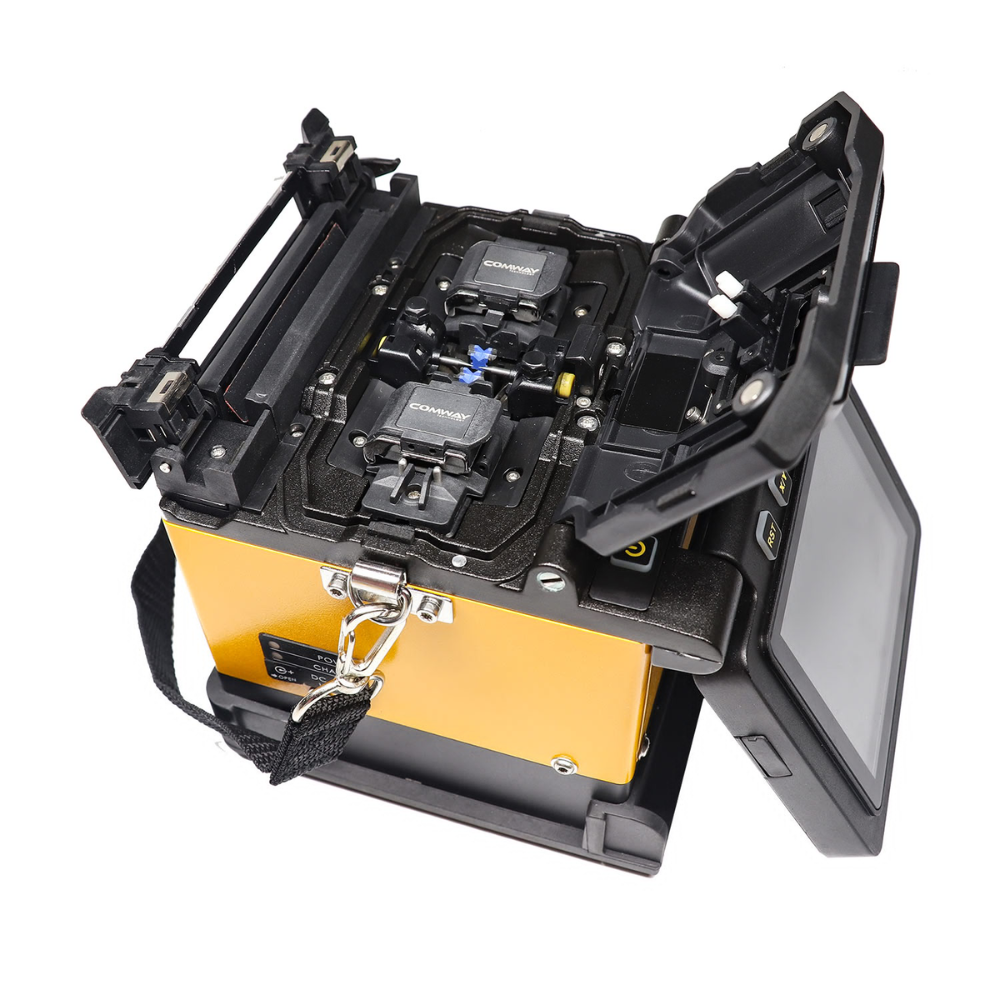

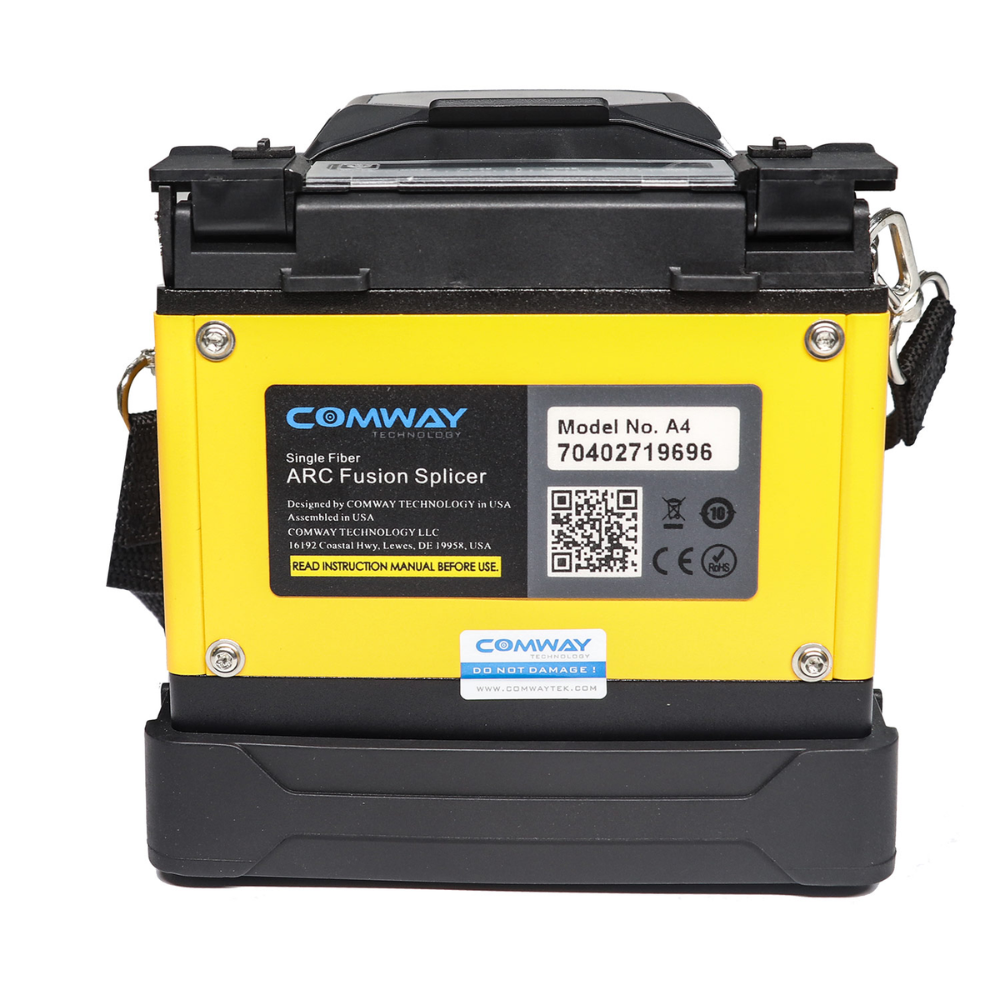

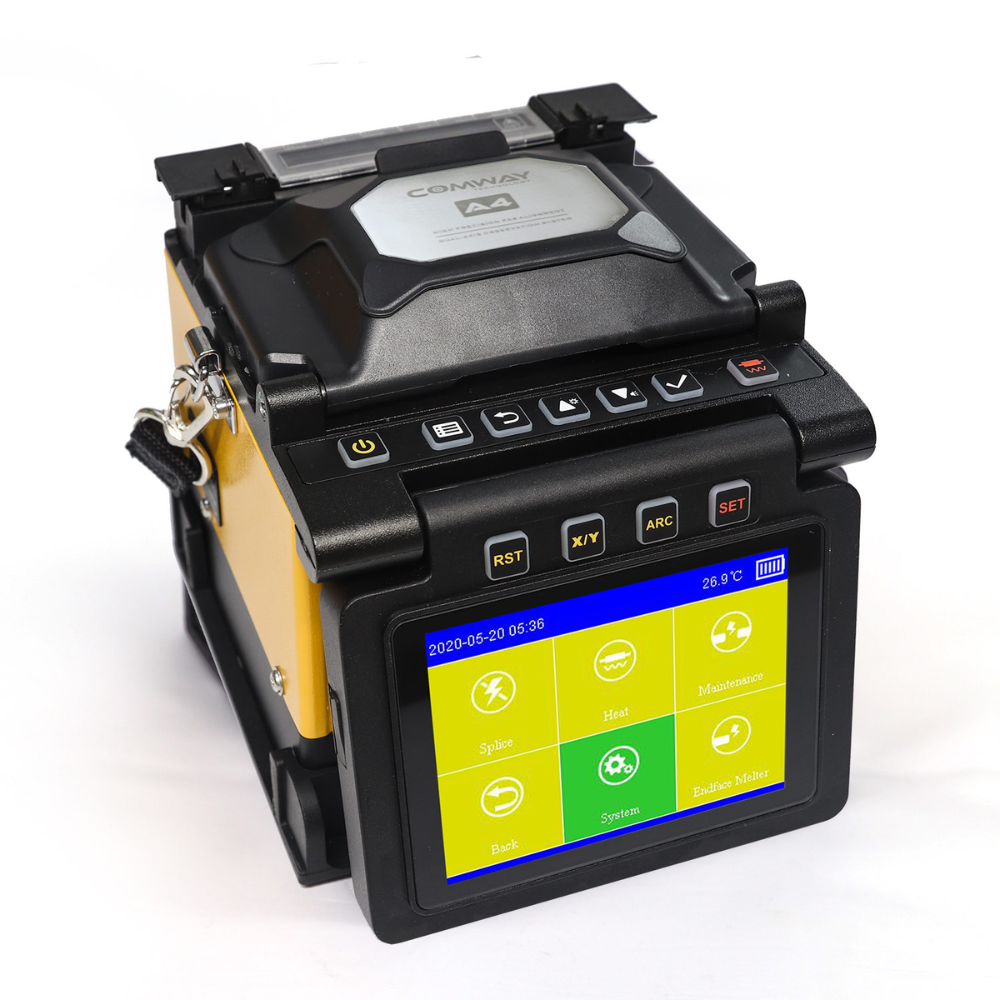

The rapid expansion of Fiber-to-the-Home (FTTH) networks demands splicing equipment that is not only highly precise but also lightweight, fast, and resilient on the field. The COMWAY A4 Mini ARC Fusion Splicer is engineered specifically to meet these field-deployment challenges. By combining compact portability with industrial-grade robustness, the COMWAY A4 delivers reliable, low-loss splices under the most demanding outdoor conditions.

Equipped with cutting-edge PAS (Profile Alignment System) alignment technology, the A4 automatically aligns the cores or cladding of optical fibers to guarantee minimal splice loss. With an ultra-fast splicing time of just 5 seconds and a rapid tube heating cycle of 12 seconds, this unit is built to optimize field efficiency, making it the perfect tool for telecom engineers, network operators, and broadband technicians.

Key Features of the COMWAY A4 Fusion Splicer

• High-Precision PAS Alignment: Uses advanced image processing algorithms to optimize fiber alignment, resulting in consistent, ultra-low insertion loss.
• Rapid Execution: Achieves an incredibly fast 5-second splice time and a quick 12-second shrink-sleeve heat cycle.
• Splice-On Connector (SOC) Support: Fully compatible with SOCs, reducing the need for mechanical pigtail joints and ensuring cleaner FTTH drop cable installations.
• Compact & Lightweight: Designed specifically for overhead, high-altitude, or tight-space splicing where bulky traditional fusion splicers are difficult to handle.
• Rugged Construction: Built to withstand harsh environmental conditions, providing exceptional wind, dust, and moisture resistance.

Detailed Technical Specifications

When evaluating high-performance fusion splicers, understanding the exact technical capabilities is key. Below is a comprehensive breakdown of the COMWAY A4's internal hardware and operational specifications:

How PAS Alignment Minimizes Loss

At the heart of the COMWAY A4 is its Profile Alignment System (PAS). Unlike basic V-groove cladding alignment systems that rely solely on mechanical alignment, PAS utilizes high-definition cameras to visually inspect and analyze the internal geometry of the fiber.

1. Fiber Detection: The cameras capture cross-sectional images of the fiber cores.
2. Analysis: The internal software detects dust, offsets, or physical imperfections.
3. Micro-Adjustment: The precise motors adjust the alignment in real-time before initiating the electric arc, ensuring optimal core-to-core light path continuity.

This level of precision is typically found in high-end core-alignment machines, yet COMWAY has integrated it seamlessly into the portable A4 chassis.

Comparing COMWAY's Professional Splicer Range

Choosing the right splicing machine depends on your project scale. If you are handling large-scale trunk lines rather than local FTTH distributions, you may want to explore COMWAY’s broader portfolio:

• For ultra-precise, long-haul backbone networks requiring absolute core-alignment, check out the COMWAY Fusion Splicer C10S V2 or the COMWAY Fusion Splicer C10S.
• If your project relies heavily on high-fiber-count ribbon cables, the specialized COMWAY Ribbon Fusion Splicer C10R is the industry standard.
• For a balance of mid-range core alignment capabilities, the COMWAY Fusion Splicer C6 offers a robust middle ground.
• For highly economical, ultra-portable solutions parallel to the A4, the COMWAY Fusion Splicer A33 remains a classic choice for localized field technicians.
