Overview

The data center server rack features frames and covers (doors), typically designed with a rectangular parallelepiped shape for floor installation. It creates an optimal environment and provides essential safety protection for electronic equipment. Serving as the foundational element in the entire data center system, this server rack is crucial for maintaining efficient and secure operations. If the server rack lacks covers or doors, it is known as an open rack.

Dimensions

1. Height Options: Choose from a range of heights, including 12U, 15U, 18U, 22U, 24U, 27U, 32U, 37U, 42U, and 47U. This variety ensures the rack accommodates different equipment sizes and specific needs.
2. Width: The rack standardizes at 600mm in width, providing a consistent size for most installations.
3. Depth: With a standard depth of 800mm, the rack offers ample installation space. Additionally, racks with a 600mm depth cater to more compact storage needs.

Doors

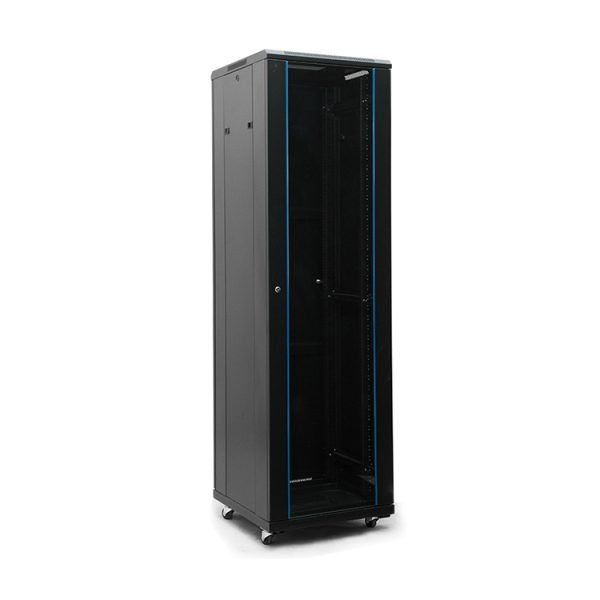

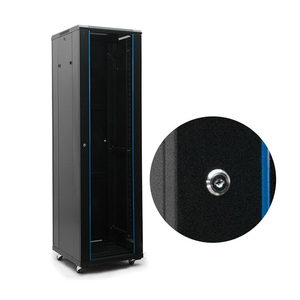

4. Front Door Options: Select between a tempered glass door with a small round lock or a spring lock. The glass door provides visibility, while the spring lock enhances ease of access.

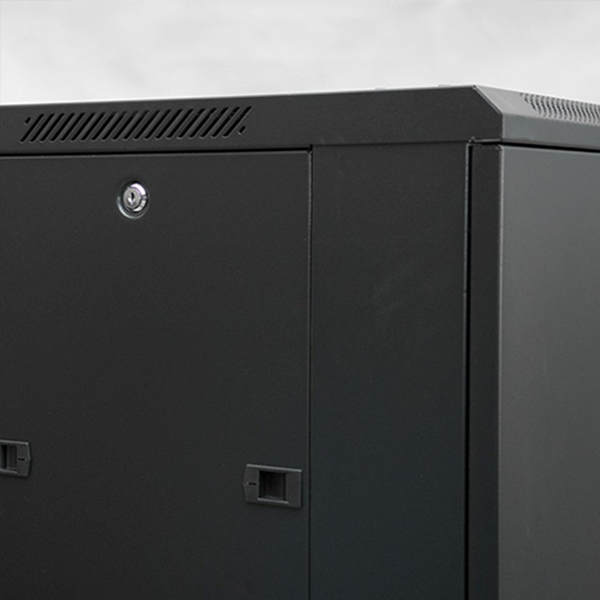

5. Rear Door Options: The rear features a solid steel door with a small round lock. This design ensures the rear components remain securely enclosed.
6. Side Doors: Removable side doors are available and can be equipped with a small round lock. This flexibility allows for customized access and security.

Accessories Options

7. Fan Units: Equip the rack with fan units on the top cover based on depth. For racks with a 600mm depth, include two fans. Conversely, racks with depths of 800mm or 1000mm come with four fans to ensure effective cooling and ventilation.
8. Shelves: The rack includes 1 to 3 fixed shelves depending on its height. For floor-standing racks below 27U, the setup includes one fixed shelf. Above 32U, the rack features two fixed shelves. Additionally, a sliding shelf is available, especially for 1000mm depth racks, offering versatile storage options.
9. Screws and Cage Nuts: Receive 20 to 40 sets of M6 screws and cage nuts, varying by rack height. Specifically, racks below 27U come with 20 sets, while those of 32U and 37U include 30 sets. Racks of 42U and 47U are supplied with 40 sets.
10. Castors: The rack includes four castors, with an option for brakes. Choose between castors with or without brakes to fit your mobility needs.
11. Adjustable Feet: The rack comes with four adjustable feet, allowing you to stabilize and level it on uneven surfaces.
12. PDU Options: Various types of PDUs are available, including UK, EU, IEC C13 & C19, and multi-function models. This range ensures compatibility with different power distribution requirements.

Summary

In summary, the data center server rack delivers robust protection and organization for electronic equipment. With diverse dimensions, door options, and accessory choices, it provides both flexibility and efficiency for various data center requirements. Whether you need fan units, fixed or sliding shelves, or specific PDU types, the server rack offers a secure and effective solution to maintain optimal equipment performance.
